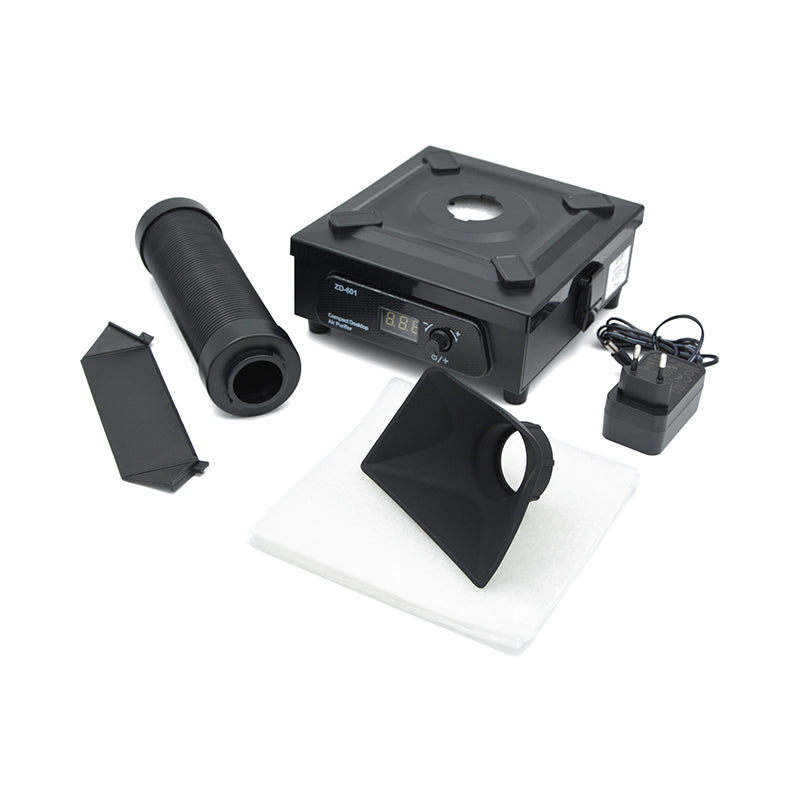

Soldering fume extractor ZHONGDI ZD-601

Smoke and soldering fume absorber ZD-601. Soldering often releases fumes and aerosols containing rosin, which irritate the skin and respiratory tract. By extracting soldering fumes using advanced filtration technology, this device allows you to work in a clean environment without the risk of inhaling harmful substances. The pollutants are extracted directly at the source and then filtered out. This prevents direct contact with the skin and respiratory tract, as well as the spread of these fumes around the room.


Product parameters:

- The multi-layered filtration system effectively removes harmful substances and unpleasant odors and ensures clean air work around the site.

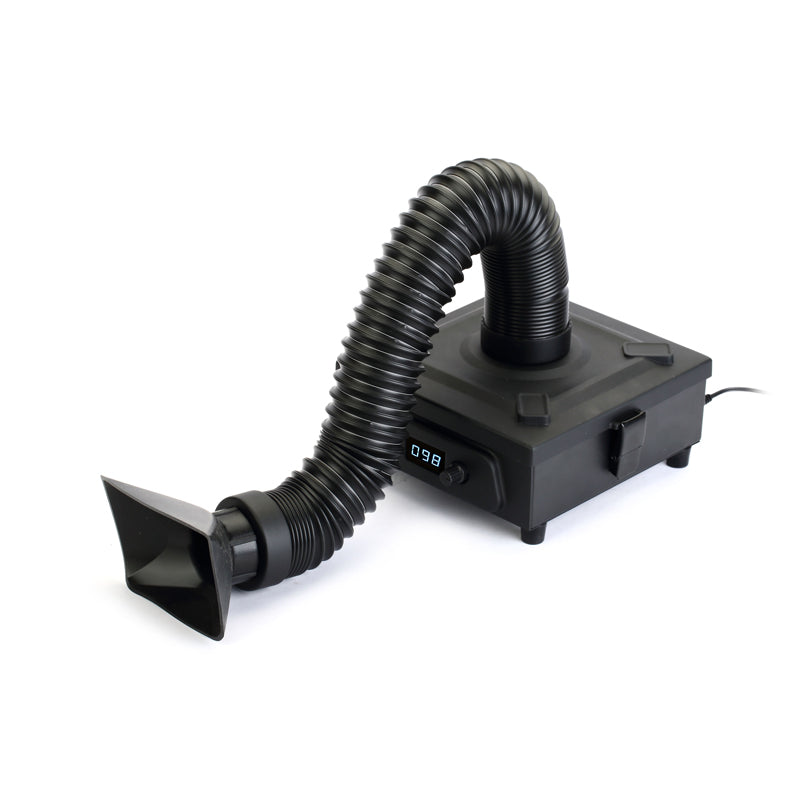

- flexible corrugated tube: allows you to easily adjust the position of the absorber and increase its versatility and comfort of use
- speed adjustment: 10% to 100% with the possibility to adapt to different soldering tasks.
- Simple operation

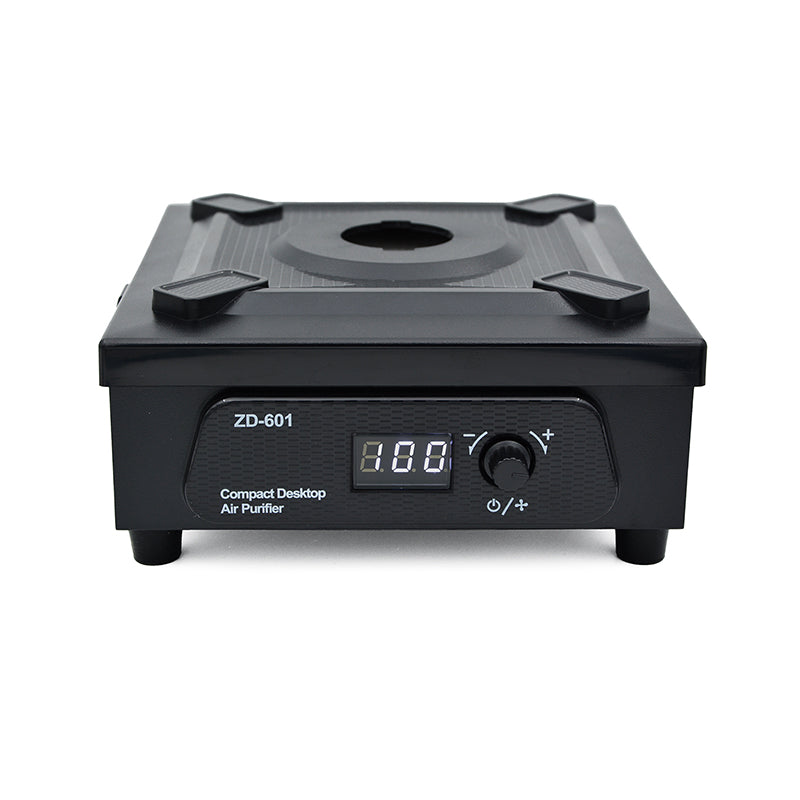

- LCD display


Technical parameters:

- filtering system: multilayer
- filter types:
cotton filter - ensures effective elimination of pollutants, particles and fumes
PM 2.5 HEPA filter
Activated carbon filter - absorbs unwanted odours, toxic volatiles and fumes

- speed: 10 to 100%
- Maximum suction power (vertical): 0.7 kPa
- Air flow (max.): 17.2 m3/h
- display: LCD
- Power supply voltage: 12V / 2A (adapter)
- Power: 20 W
