Soldering cable connector with tin and tube, set of 500pcs
Solder cable connectors with solder and heat-shrink sleeve - set of 500 pcs, low-temperature SnBi solder, heat-shrink tubing, shrink temperature 85°C, soldering temperature 135–160°C, contents: 40× white (AWG 26–24, 0.25–0.34 mm2), 50× red (AWG 22–18, 0.5–1.0 mm2), 50× blue (AWG 16–14, 1.5–2.5 mm2), 20× yellow (AWG 12–10, 4–6 mm2), 340× heat-shrink tubing, suitable for automotive and industrial wiring
In stock 4 pcs
Expected shipping:
25.09.2026
Regular price
320,00 Kč
264,46 Kč
excl. VAT
Unit price
/
Unavailable
HADEX | SKU:
03060106
Product description

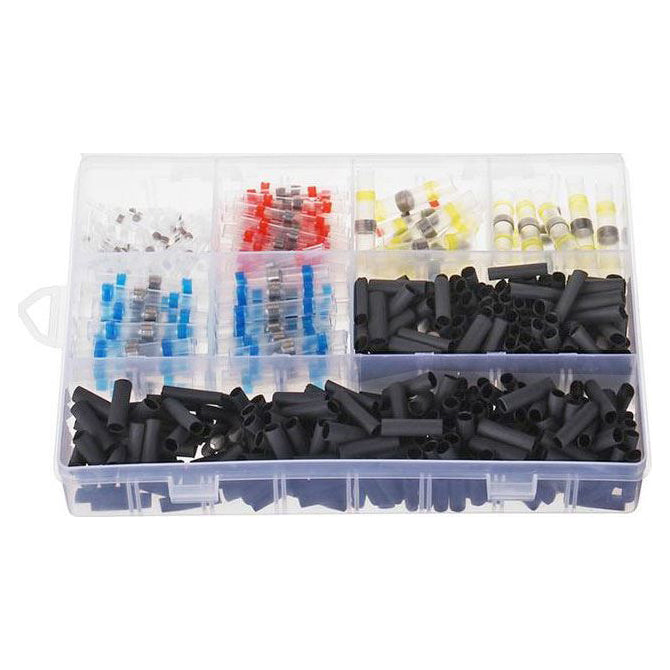

500 pcs of cable connectors with low-temperature SnBi solder and shrink tube. Suitable for connecting automotive and other wiring.

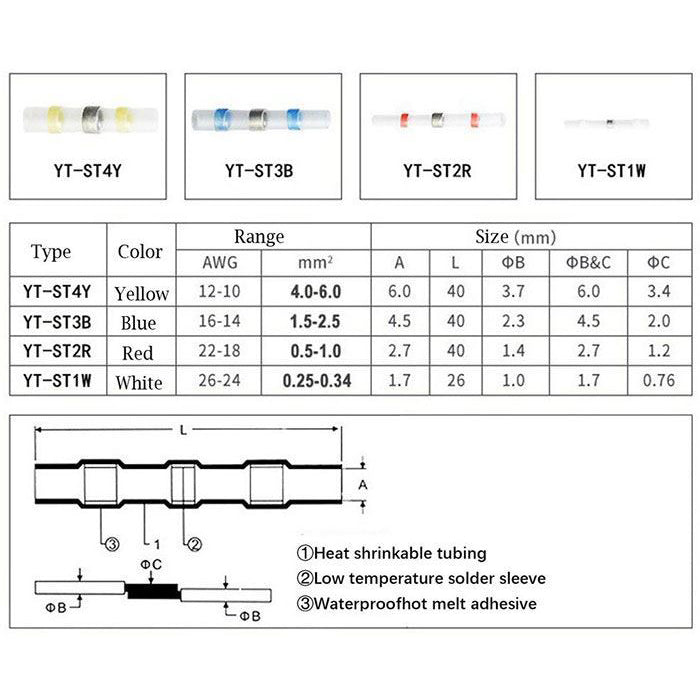

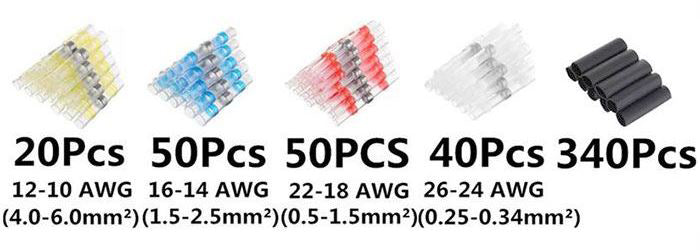

Set Contents:
40× white connector: AWG 26–24 for cables 0.25–0.34mm2
50× red connector: AWG 22–18 for cables 0.5–1.0mm2
50× blue connector: AWG 16–14 for cables 1.5–2.5mm2
20x yellow connector: AWG 12-10 for cables 4-6 mm2
340× shrink tubing
Instructions for use:
Fold the cleaned and stripped wires over each other and pull through the connector. Heat the coupling so that it shrinks and fixes the cables (necessary temperature 85°C). Then heat the metal ring locally until it melts and pours into the cable fibers. (required temperature 135°-160°C)
Set Contents:
40× white connector: AWG 26–24 for cables 0.25–0.34mm2
50× red connector: AWG 22–18 for cables 0.5–1.0mm2
50× blue connector: AWG 16–14 for cables 1.5–2.5mm2
20x yellow connector: AWG 12-10 for cables 4-6 mm2
340× shrink tubing
Instructions for use:
Fold the cleaned and stripped wires over each other and pull through the connector. Heat the coupling so that it shrinks and fixes the cables (necessary temperature 85°C). Then heat the metal ring locally until it melts and pours into the cable fibers. (required temperature 135°-160°C)
