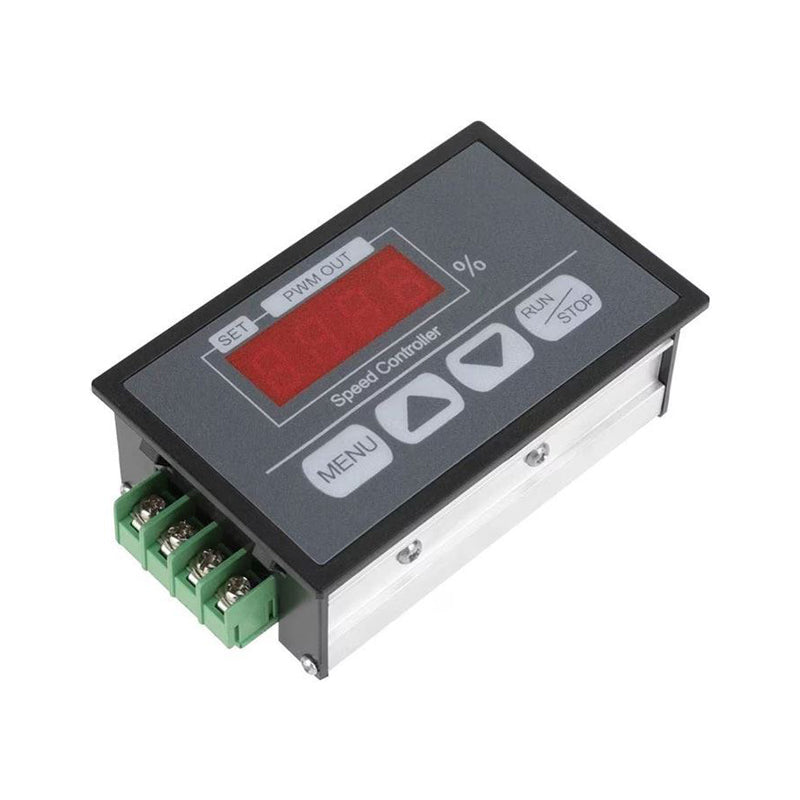

PWM Speed Controller for DC Motors 6-60V up to 30A
PWM speed controller - supply voltage 6–60V DC, max. current 30A, max. continuous current 20A, PWM frequency 21kHz, control range 0–100%, display with function settings via the MENU button, +POWER- and +MOTOR- terminals panel dimensions 96 × 61 mm, mounting hole 92 × 56 mm, weight 100 g, suitable for commutator DC motors, requires professional installation
Will be restocked
Expected shipping:
28.09.2026
at our place
Regular price
189,00 Kč
156,20 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830310
Product description
Pulse Width Modulation (PWM) Speed Controller Module for DC Brushed Motors 6–60VDC/30A with Additional Functions for Regulation.
Technical Parameters:
- Input Voltage: 6–60V DC
- Output Voltage: Dependent on load and supply
- Output Current: Max. 30A, continuous 20A
- Speed Regulation Range: 0–100%
- Pulse Frequency: 21kHz
- Panel Dimensions: 96×61mm
- Mounting Hole: 92×56mm
- Weight: 100g
Wiring Description:
- DC Power Terminal: +POWER-
- Motor Connection Terminal: +MOTOR-
- Available Functions:
By pressing the MENU button, you will have access to the following functions. The function number is displayed on the left side of the screen under the label SET. Specific values for each function are set using the up/down arrows and are shown on the right side of the screen under the label PWM OUT. Use the RUN/STOP button to start or stop the set process.
- 1– Startup Time Setting: 0–10 seconds, step 1 second
- 2– Decay Time Setting: 0–10 seconds, step 1 second
- 3– Lower Speed Limit Setting: 0–80%, step 0.4%
- 4– Upper Speed Limit Setting: 0–100%, step 1%
- 5– Speed Change Step Setting: Available steps are 1–2–5–10–15–20 and 25%
Note: The product is not a standalone functional unit and requires professional installation.
Packaging: 1 piece
Technical Parameters:
- Input Voltage: 6–60V DC
- Output Voltage: Dependent on load and supply
- Output Current: Max. 30A, continuous 20A
- Speed Regulation Range: 0–100%
- Pulse Frequency: 21kHz
- Panel Dimensions: 96×61mm
- Mounting Hole: 92×56mm
- Weight: 100g
Wiring Description:
- DC Power Terminal: +POWER-
- Motor Connection Terminal: +MOTOR-
- Available Functions:
By pressing the MENU button, you will have access to the following functions. The function number is displayed on the left side of the screen under the label SET. Specific values for each function are set using the up/down arrows and are shown on the right side of the screen under the label PWM OUT. Use the RUN/STOP button to start or stop the set process.
- 1– Startup Time Setting: 0–10 seconds, step 1 second
- 2– Decay Time Setting: 0–10 seconds, step 1 second
- 3– Lower Speed Limit Setting: 0–80%, step 0.4%
- 4– Upper Speed Limit Setting: 0–100%, step 1%
- 5– Speed Change Step Setting: Available steps are 1–2–5–10–15–20 and 25%
Note: The product is not a standalone functional unit and requires professional installation.
Packaging: 1 piece
