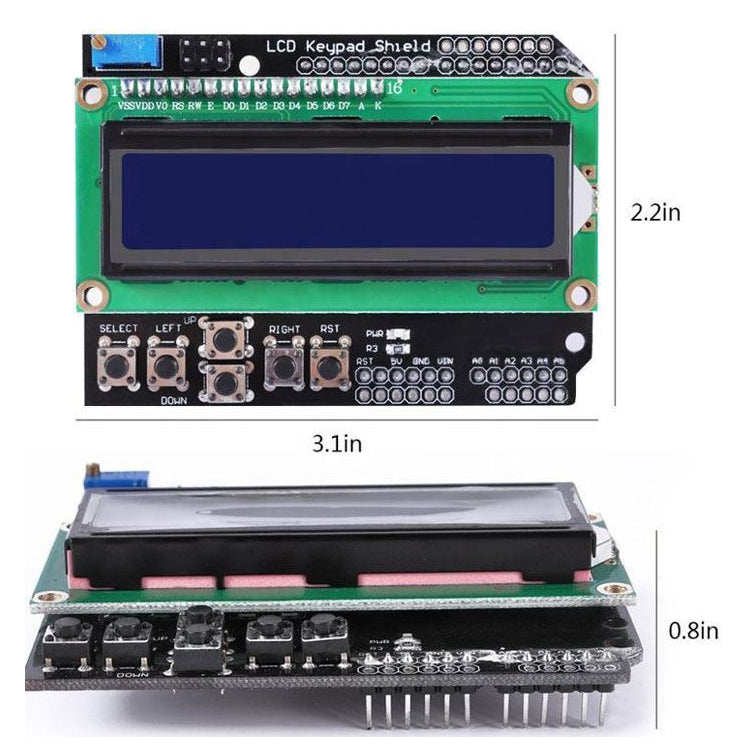

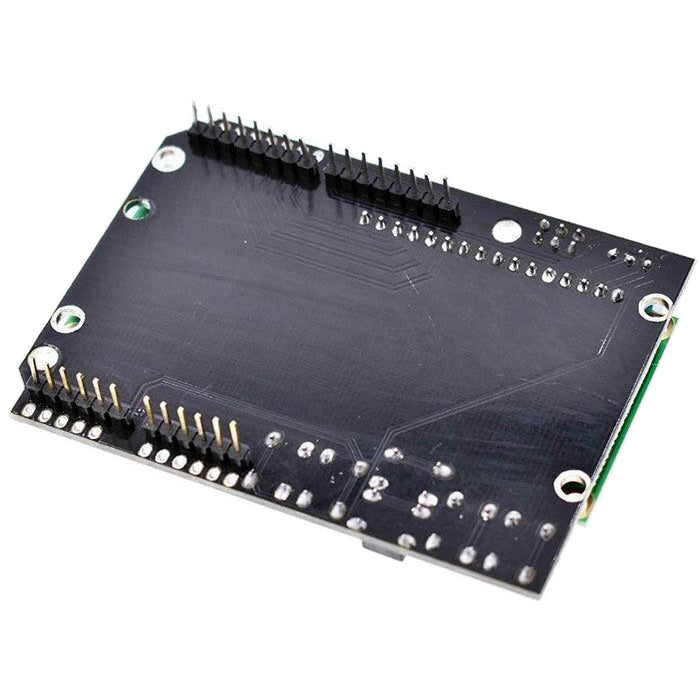

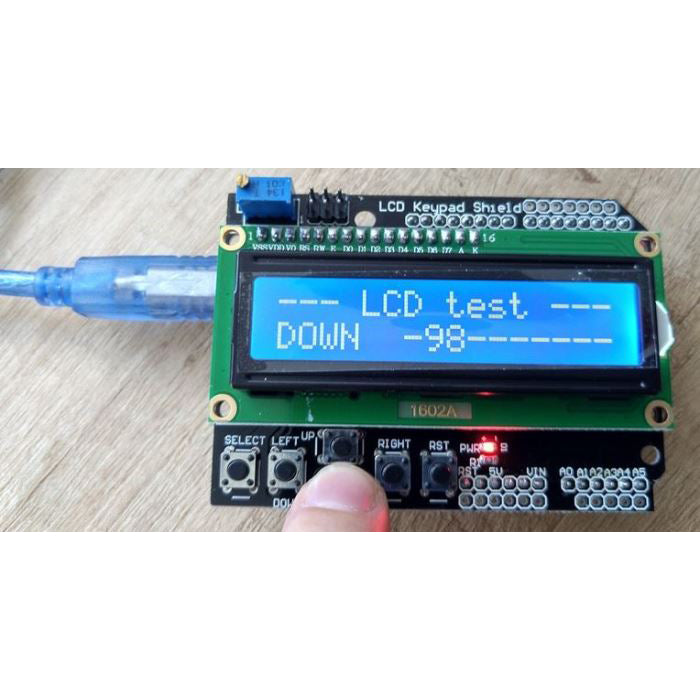

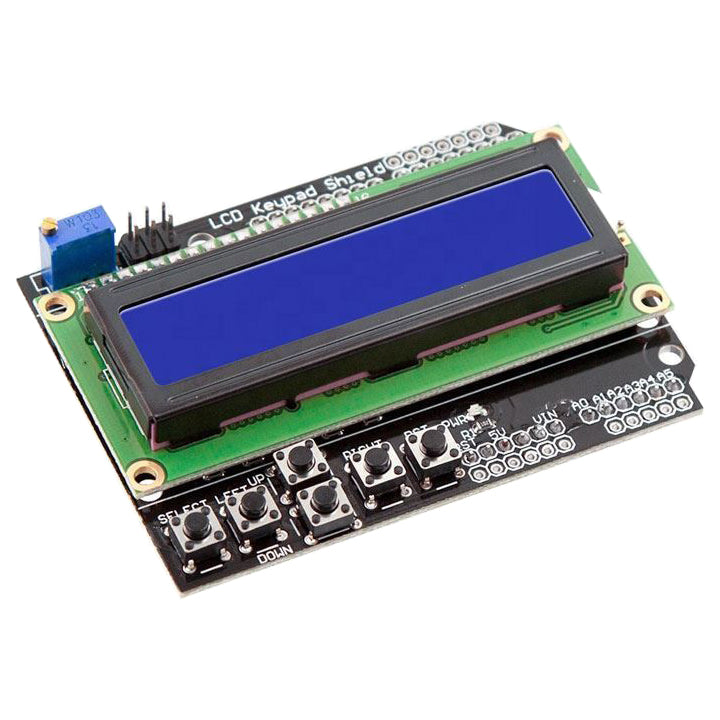

LCD1602A display with keyboard, 16x2 characters, blue backlight
Recommended
LCD display with keypad for Arduino - 16 × 2 characters, blue backlight, white letters, HD44780 controller, 6 buttons (Select, Left, Right, Up, Down, Reset), power supply 5VDC, module dimensions 80 × 59 mm, information area 64.5 × 16 mm, industry standard, compatible with the Arduino shield interface
In stock more than 50 pcs
Expected shipping:
22.09.2026
Regular price
49,00 Kč
40,50 Kč
excl. VAT
Unit price
/
Unavailable
HADEX | SKU:
09830063
Product description
Arduino shield with 6 buttons. 16 × 2 display, blue backlight, white letters. HD44780 controller.
Technical parameters:
- module dimensions: 80 mm x 59mm
- the size of the information area itself: 64.5 × 16mm
- LCD display with blue backlight
- Select, Left, Right, Up, Down, Reset buttons
- industry standard HD44780
- power supply: 5VDC
- 2 lines, 16 characters
- backlight: A, K is at 5V, the stabilizer is on the PCB display
