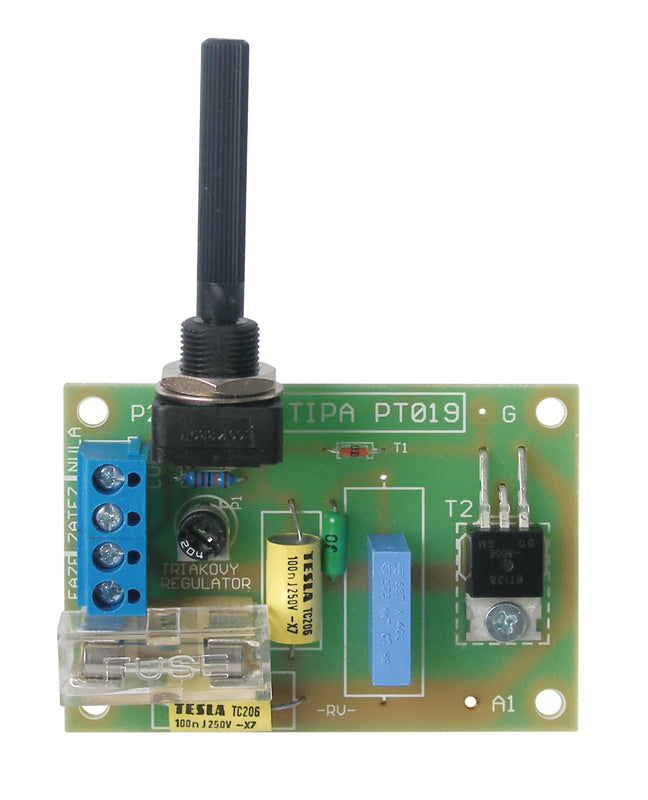

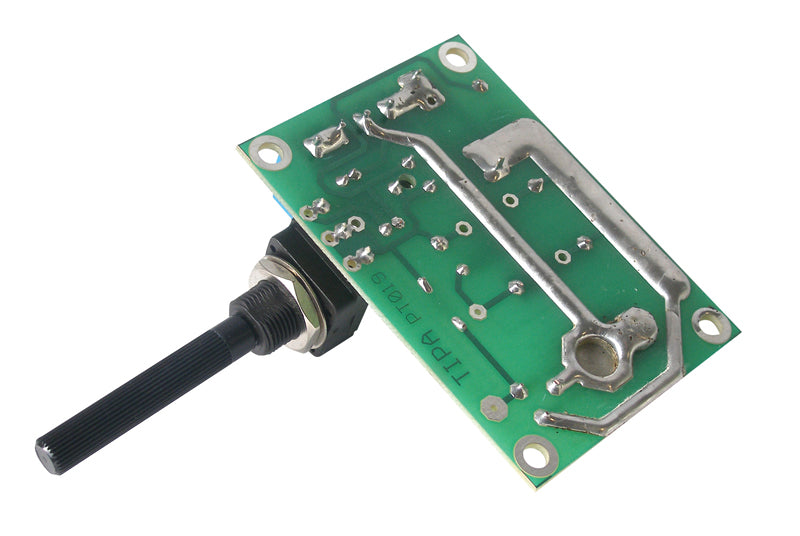

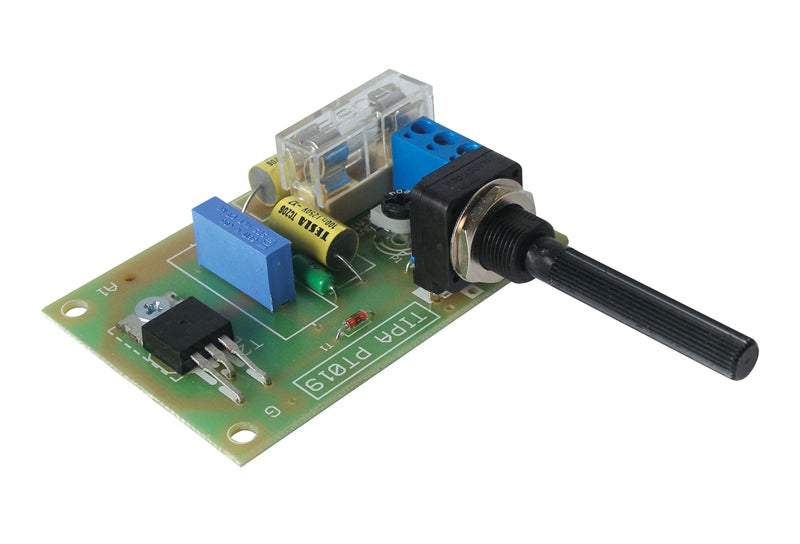

Kit TIPA PT019 Triac regulator 230V/10A
Triac power controller kit - power supply 230VAC, phase triac control without feedback, max. regulated current 10A (4.35A without triac cooling), suitable for heating appliances, light sources (except fluorescent and energy-saving lamps) and motor speeds (except single-phase asynchronous with a capacitor), PCB dimensions 67 × 47 mm, for assembly from components
In stock more than 50 pcs
Expected shipping:
29.09.2026
Regular price
239,00 Kč
197,52 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09810563
Product description
This kit is used for regulation heaters, lights and motors (exclude compact lights, fluorescent tubes, one-phase asynchronous motors with capacitors)
One-phase triac regulator without feedback
Operating voltage: 230 VAC
Maximum regulated current: 10 A
Maximum regulated current without extra heat-sink: 4.35 A
PCB dimensions: 67x47 mm (2.638x1.85 inch)
More kits TIPA and technical support at http://stavebnice.tipa.eu
One-phase triac regulator without feedback
Operating voltage: 230 VAC
Maximum regulated current: 10 A
Maximum regulated current without extra heat-sink: 4.35 A
PCB dimensions: 67x47 mm (2.638x1.85 inch)
More kits TIPA and technical support at http://stavebnice.tipa.eu
