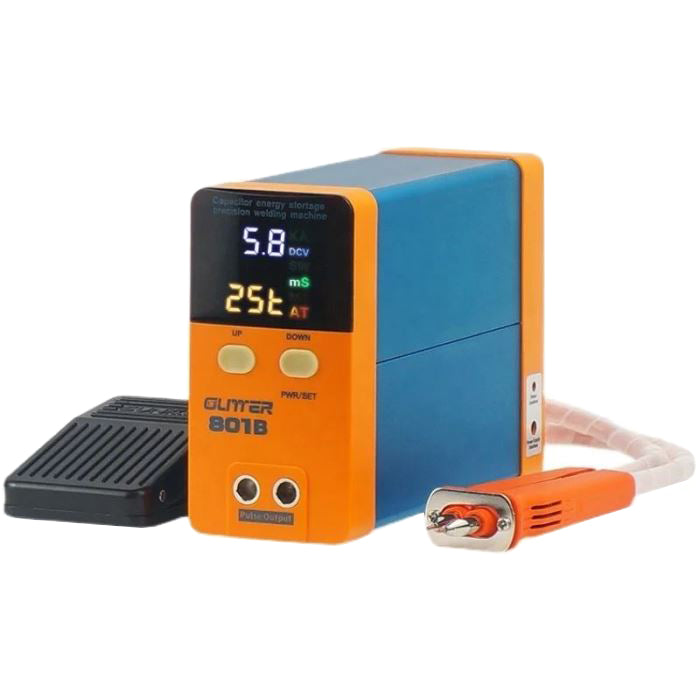

GLITTER 801B battery spot welder with accessories

GLITTER 801B is a condenser spot welder for spot welding accumulators into battery packs using nickel plates. A welding pen or an integrated arm can be connected to the station. Compared to classic welders with a transformer, it offers lower weight and dimensions and greater pulse energy. The welding machine also enables the welding of nickel strips on an aluminum substrate.


Technical parameters:

- power supply: 15 V / 2 A, adapter 230 V AC, 50 Hz included
- charging time: 15 – 25 min
- output welding voltage: 5 – 5.8 V
- output welding current: 500 – 2000 A
- max. welding power: 11.6 kW
- max. welding energy: 119 J
- pulse duration: 0.1–10 ms
- welding power setting range: 0 – 99t
- welding mode: AT / MT
- regeneration time: 20 – 50 ms
- thickness of nickel strips: 0.05 – 0.35 mm
- size: 120 x 65 x 180 mm
- weight: 2.5 kg

Package contents:
- welding machine GLITTER 801H
- 2x welding pen
- control pedal
- welding arm with spikes
- 4x spare tips
- 20x nickel plates 0.15x8x100mm
- 20x nickel plates 0.15x10x100mm
- Al-Ni joint sample

Video demonstration of the product: https://youtu.be/mVN-FF4EVlw
