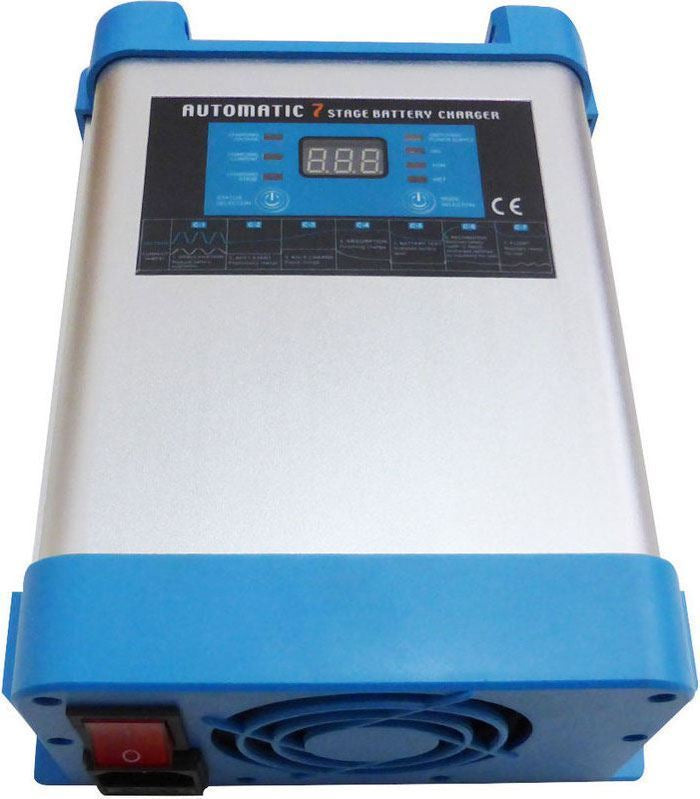

Battery charger CARSPA EBC2425 24V/25A (Pb,with automatic)
Intelligent lead-acid battery charger - 24V output, charging current 25A, 7-stage automatic cycle with pulse current desulphation, soft start and absorption phase, compatible with both starter and traction batteries 40–300Ah, AGM and AGM GEL, adjustable terminal voltage 28.4–29.6V in three levels, input 230VAC, designed for permanent connection to the battery, suitable for backup power supplies, caravans and off-grid systems
Will be restocked
Expected shipping:
29.09.2026
at our place
Regular price
3.790,00 Kč
3.132,23 Kč
excl. VAT
Unit price
/
Unavailable
CARSPA | SKU:
04240702
Product description
Intelligent automatic lead-acid battery charger with seven-stage automatic charging, designed for permanent connection to the battery being charged. Suitable for backup power supplies, caravans, island systems, etc. Designed for 24V 40-300Ah liquid dielectric, AGM and AGM GEL (optional) lead acid starter and traction batteries

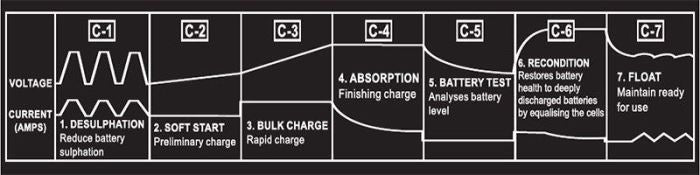

Charging phase:
C-1 Desulfation:
Pulsed current charging. This phase starts automatically when the battery voltage is below 11V and precedes the standard charge cycle.
C-2 Soft Start:
A phase of gradually increasing charging current up to a maximum of 25A.
C-3 Constant current charging:
A key phase of the charging cycle. Constant current charging until the clamp voltage reaches 28.4 to 29.6V (selectable in three stages)
C-4 Absorption Charging :
Charging at a constant voltage of 28.4-29.6V while gradually decreasing charging current
C-5 Battery test:
During the 90 sec. test, the battery is discharged while the clamp voltage is measured. If the test is successful, the last, maintenance stage automatically follows. If the test is unsuccessful and the clamp voltage drops rapidly during the test, stage 6 follows.
C-6 Reconditioning Charging:
In reconditioning mode, the battery is charged for 4 hours at a reduced constant current.
C-7 Maintenance mode:
Maintain battery clamp voltage of 26.4-27.6V (selectable in three stages).
Specifications:
-supply voltage 190-265V
-max charging current 25A
-for 24V 30-100Ah lead acid starter and traction batteries, AGM and AGM GEL
-temperature compensation of the charging current by the included temperature sensor
-LED display with indication of charging status, charging current and voltage and charge level
-Efficiency 88%
-Operating temperature 0-40°C
-Dimensions 267x175x95mm
-supplied with power and charging cables
