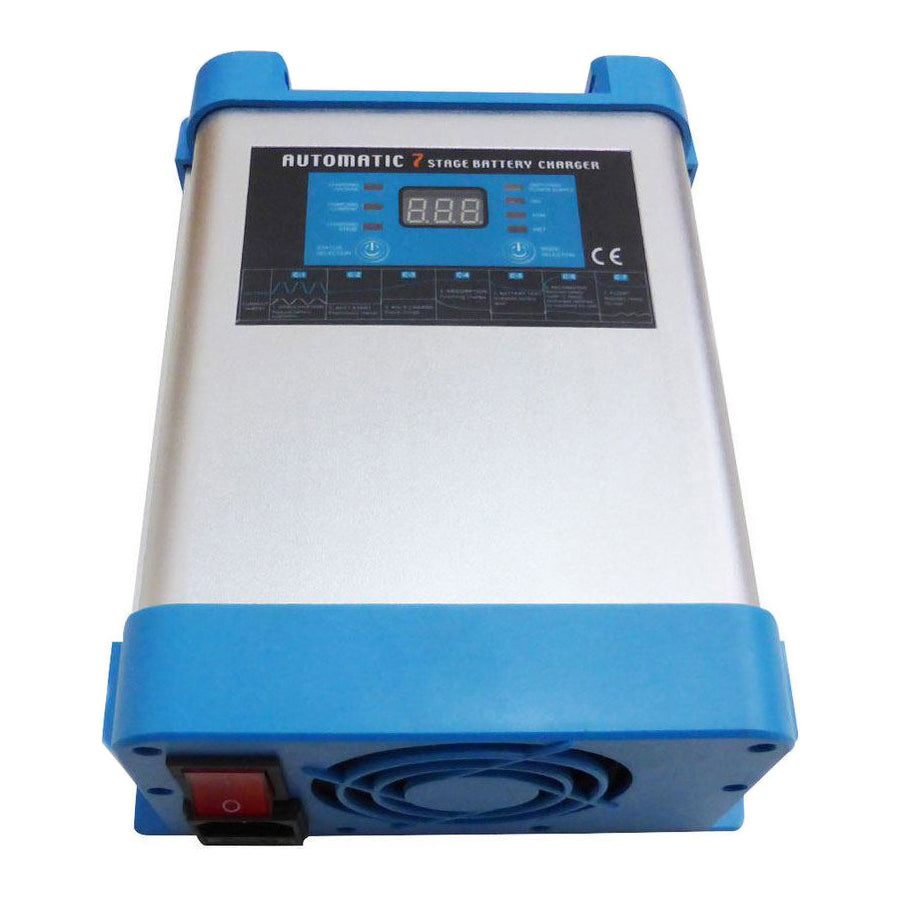

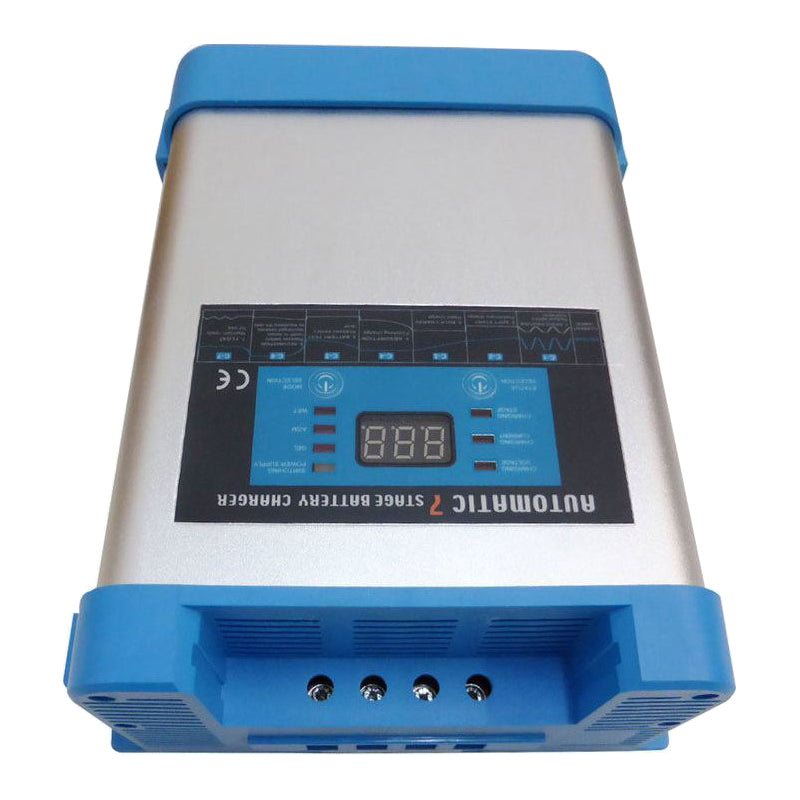

Battery charger CARSPA EBC2420 24V-20A
Intelligent lead-acid battery charger - 24V output, charging current 20A, 7-stage automatic cycle with pulse current desulphation, soft start and absorption phase, adjustable terminal voltage 28–28.5V in three levels, compatible with AGM, AGM GEL and flooded batteries, designed for permanent connection to the battery, input 230VAC, suitable for backup power supplies, caravans and off-grid systems
Will be restocked
Expected shipping:
29.09.2026
at our place
Regular price
3.700,00 Kč
3.057,85 Kč
excl. VAT
Unit price
/
Unavailable
CARSPA | SKU:
04240546
Product description
Charger for Pb batteries CARSPA EBC2420, 24V / 20A, with automatic. Intelligent automatic lead-acid battery charger with a seven-stage automatic device, designed for permanent connection with a rechargeable battery. Suitable for backup sources, caravans, island systems, etc.
Product parameters:

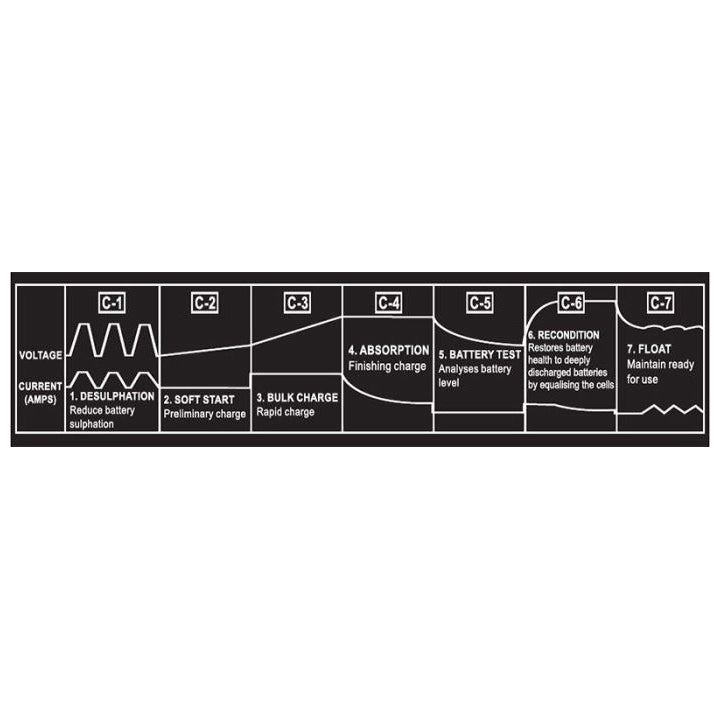

Charging phase:
- C-1 Desulphation:
pulse current charging. This phase starts automatically if the battery voltage is below 11V and precedes the standard charging cycle.
- C-2 soft start:
phase of gradual increase of charging current up to a maximum value of 20A
- C-3 Constant current charging:
key phase of the charging cycle. Constant current charging until a terminal voltage of 28 to 28.5V is reached (selectable in three stages)
- C-4 Absorption charging:
charging with a constant voltage of 28–28.5V with a gradual decrease of the charging current
- C-5 Battery test:
at 90sec. test, the battery is discharged and the terminal voltage is measured at the same time. If the test is successful, the last, maintenance level automatically follows. If the test fails and the terminal voltage drops rapidly during the test, step 6 follows.
- C-6 Reconditioning charging:
in reconditioning mode, the battery is charged for 4 hours at a reduced constant current
- C-7 Maintenance Mode:
maintaining the terminal voltage of the battery at 26.2-26.9V (selectable in three stages - depending on the battery type).
Technical parameters :
- supply voltage: 190-265 V
- max. charging current: 20 A
- for lead starter and traction batteries: 24V 60–200Ah, AGM and AGM GEL
- temperature compensation of the charging current with the enclosed temperature sensor
- LED display with information on charging status, charging current and voltage and charge level
- efficiency: 88%
- operating temperature: 0-40 ° C
- dimensions: 176 × 175 × 95mm
- delivery including power and charging cables
