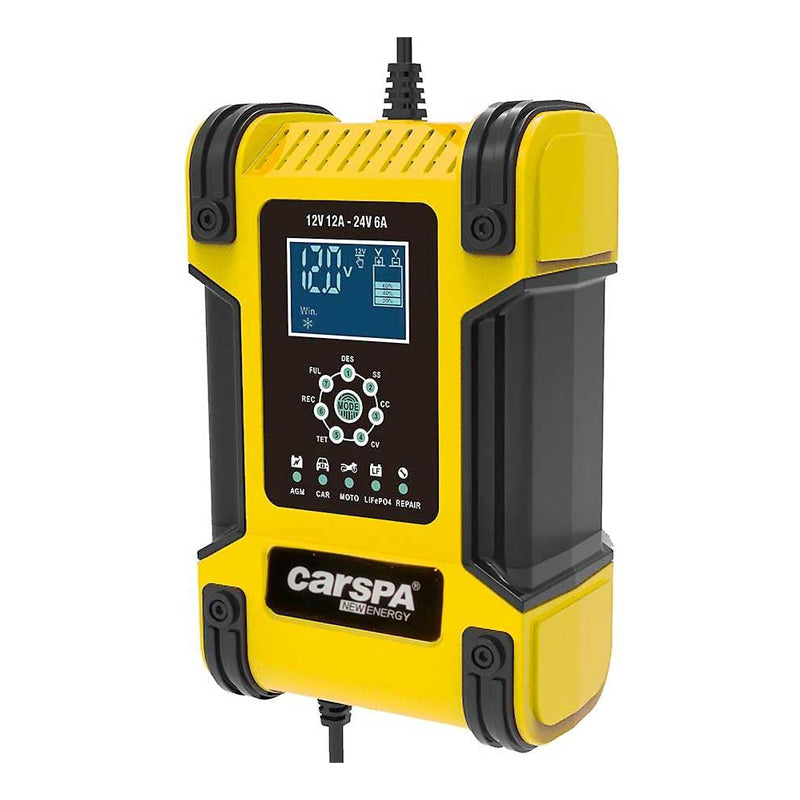

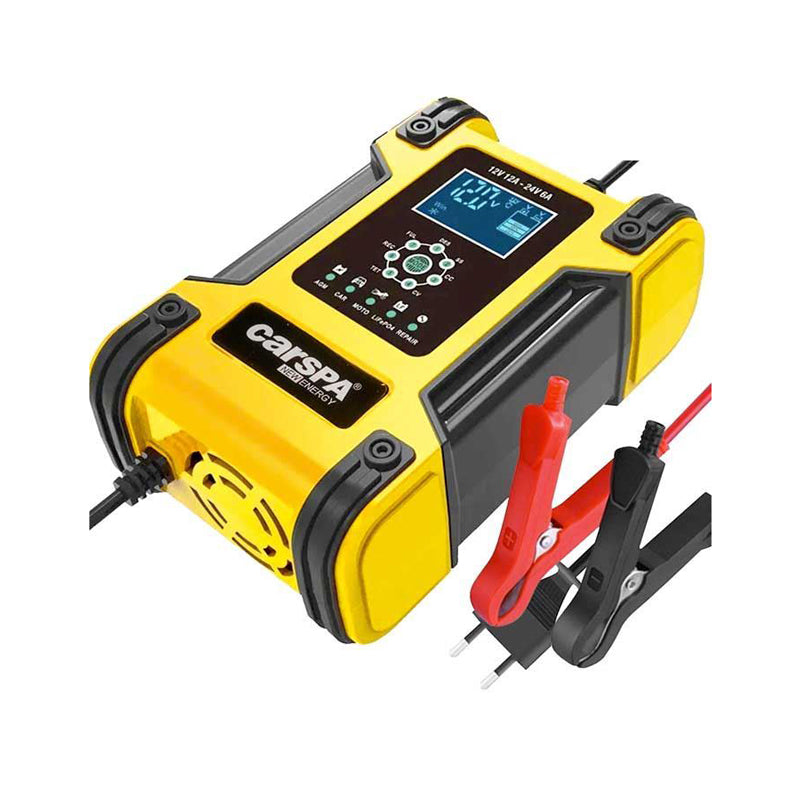

Battery charger CARSPA CFG12/24-12 LiFePO4, PB
Battery charger - voltage 12V/24V, max. current 12A (12V) / 6A (24V), compatible with Pb and LiFePO4 (3S–8S) and Li-Ion (2S–7S), battery capacity 6–200Ah, 7-stage charging, Pb battery regeneration programme, input 100–240V AC 50–60Hz, min. initial voltage 7.0V, efficiency 85 %, thermal protection 65°C, protection against reverse polarity, short circuit and overheating, CB/CE certification, dimensions 185 × 115 × 70 mm, weight 700 g
Will be restocked
Expected shipping:
28.09.2026
at our place
Regular price
859,00 Kč
709,92 Kč
excl. VAT
Unit price
/
Unavailable
CARSPA | SKU:
04240628
Product description
Charger with automatic CFB12/24-12 for Pb and LiFePO4 batteries
A smart, fully automatic charger for Pb and LiFePO4 batteries with a current of up to 12A, enabling a permanent connection with the battery being charged. It is equipped with a program for the regeneration of Pb batteries. 7-level charging.
Technical parameters:
- input voltage: 100-240 V AC, 50-60 Hz
- rated power: 12V 12A / 24V 6A
- minimum initial voltage: 7.0 V
- rechargeable batteries: Pb 12 V or 24 V, LiFePO4 3S-8S, Li-Ion 2S-7S
- battery capacity range: 6 – 200Ah
- protection against polarity reversal
- short circuit protection
- surge protection
- protection against overheating
- ventilator
- thermal protection: 65 ° C +/- 5 ° C
- efficiency: App. 85%
- compliant standards: CB, CE, IEC60335, EN61000, EN55014
- dimensions: (L x W x H): 185 x 1115 x 70 mm
- weight: 700 g
Instructions for use:
1) Connect the charger to the mains voltage and select the desired charging mode with the MODE button (AGM, CAR, MOTO, LiFePO4, REPAIR) Preset AGM, the last set data remains in the device's memory even after it is disconnected from the network
2) Turn off the device from the mains and connect the charging battery to the supply terminals. Step 1 is not required if the same type of battery is repeatedly charged

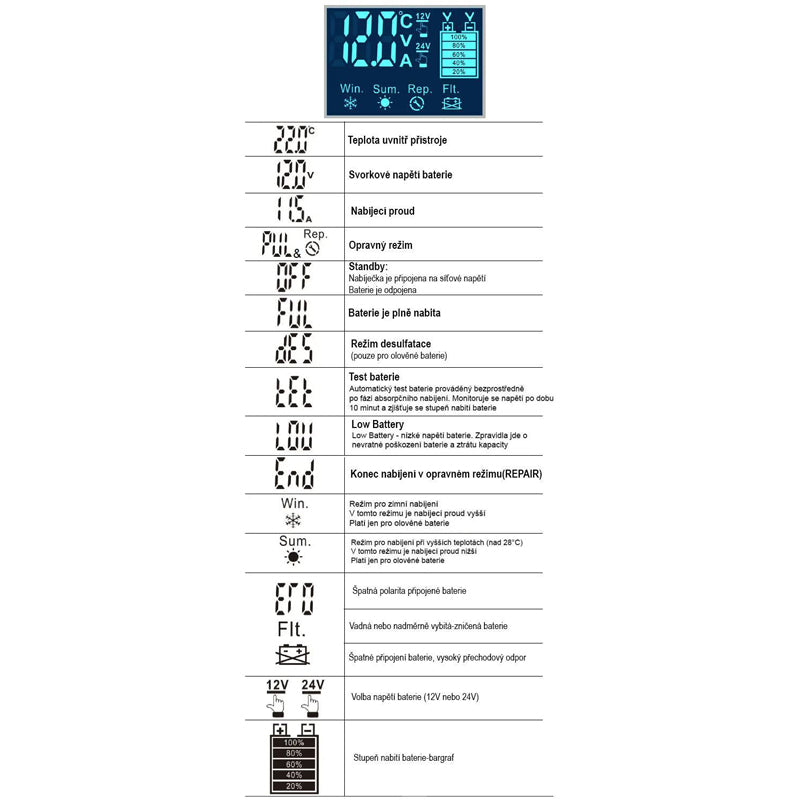

3) Connect the charger to the mains. The charger will start charging automatically. The circular indicator shows the phases of the charging cycle, terminal voltage, charging current, ambient temperature and degree of charge
4) After reaching the desired terminal voltage (for AGM 14.4V), the charger switches to float mode with maintenance voltage (for AGM 13.5V)
A smart, fully automatic charger for Pb and LiFePO4 batteries with a current of up to 12A, enabling a permanent connection with the battery being charged. It is equipped with a program for the regeneration of Pb batteries. 7-level charging.
