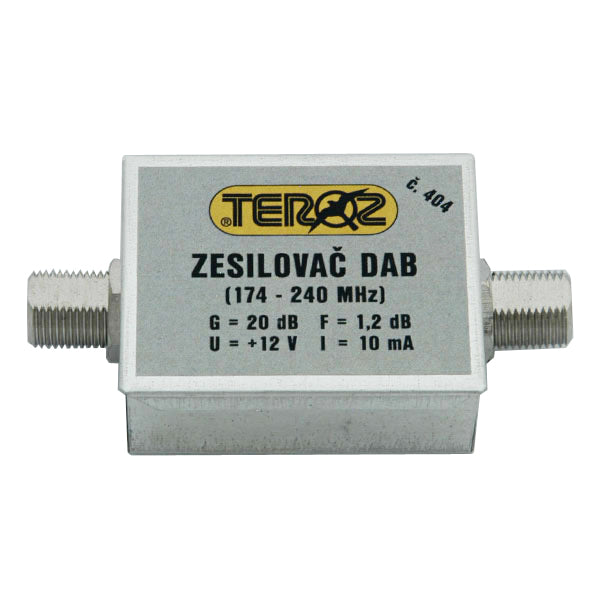

Antenna amplifier TEROZ 404X, DAB, G20dB, F1,2dB, U98dBµV, F-F
Sale
20% off
VHF/DAB antenna amplifier - band 174–240 MHz, gain 20dB, noise figure 1.2dB, max. output level 98dBµV, input/output impedance 75?, MOSFET transistor with low-noise properties, matching circuits on both input and output, power supply 12V/10mA via the output connector, F female connectors, dimensions 40 × 30 × 18 mm, weight 50 g, indoor installation
In stock 8 pcs
Expected shipping:
22.09.2026
Sale price
299,00 Kč
Regular price
375,00 Kč
247,11 Kč
excl. VAT
Unit price
/
Unavailable
TEROZ | SKU:
14411344
Product description
The Teroz 404X amplifier for the VHF (DAB) band 174 to 240 MHz is equipped with a high-frequency MOSFET transistor, which has very good noise characteristics. There are matching circuits at the input and output that limit unwanted signals below and above the operating band.
The amplifier can significantly reduce the noise figure of the entire amplifier chain in this frequency band.
Technical parameters:
- gain G: 20 dB
- noise F: 1.2 dB
- transmitted band: 174 to 240 MHz
- max. output level: 98 dBµV
- input and output impedance: 75 ?
- power supply to the output connector: 12V/10mA
- input and output connector: F female
- mounting environment: indoor
- box dimensions: 40 x 30 x 18 mm
- weight: 50g
The amplifier can significantly reduce the noise figure of the entire amplifier chain in this frequency band.
Technical parameters:
- gain G: 20 dB
- noise F: 1.2 dB
- transmitted band: 174 to 240 MHz
- max. output level: 98 dBµV
- input and output impedance: 75 ?
- power supply to the output connector: 12V/10mA
- input and output connector: F female
- mounting environment: indoor
- box dimensions: 40 x 30 x 18 mm
- weight: 50g
