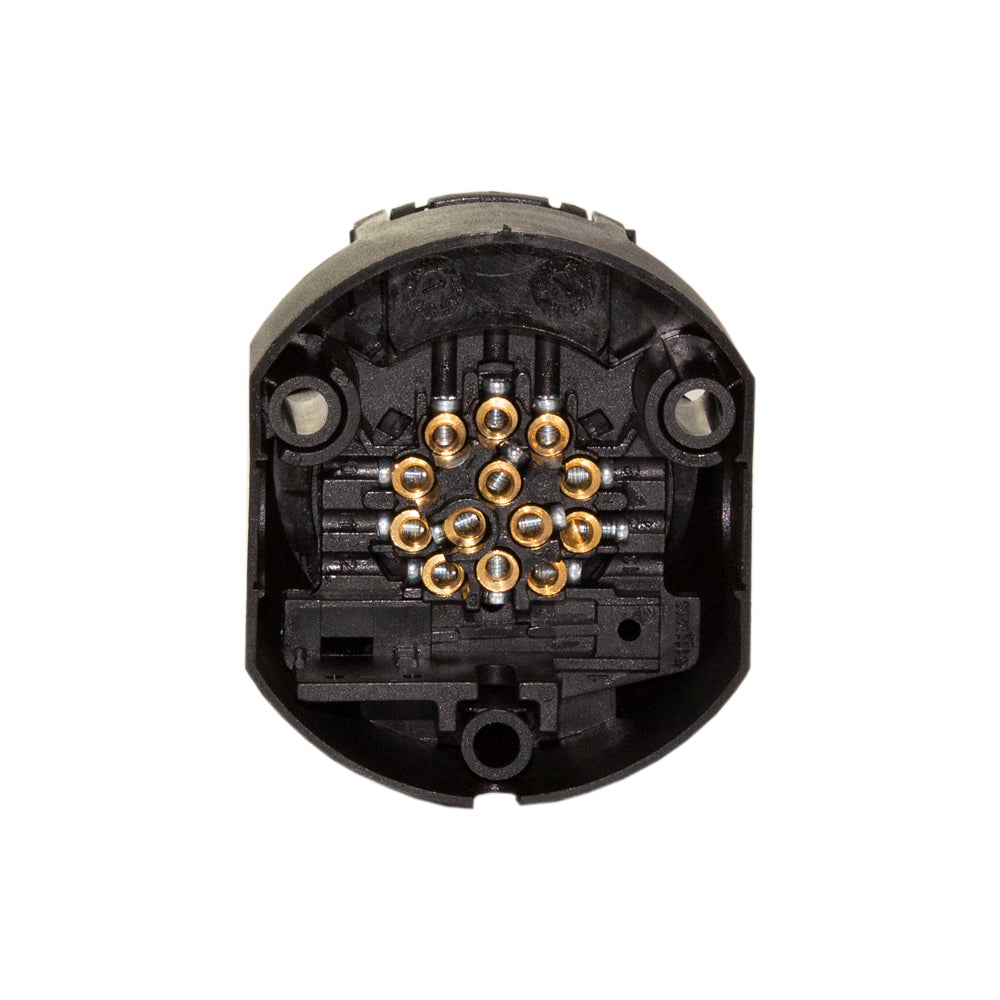

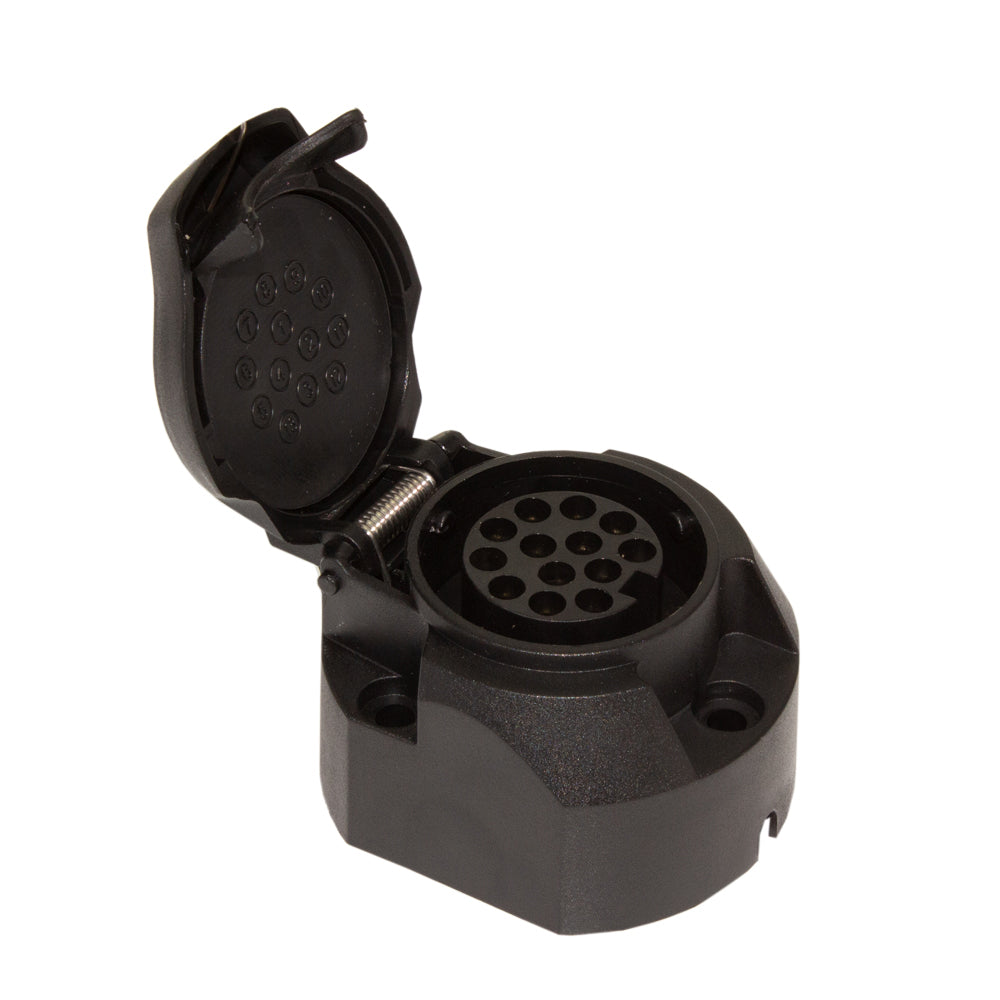

Towing device socket 13 poles CARGUARD 54942

Tow bar socket - 13 pins, max. 12V, copper connectors, spring self-closing cover, screw fastening of cables, removable connectors, colour-marked poles (left/right index, fog lights, brake lights, reversing lamp, power supply, charging), compatible with most cars and trailers, simple wiring

Show full description
In stock 7 pcs
Expected shipping: 09.10.2026
110,00 Kč 139,00 Kč 90,91 Kč excl. VAT
CARGUARD  |  SKU: 08750222  |  Barcode: 6425215797653
Log in for VAT-free pricing

Product description

The regulations state that trailers must be equipped with adequate lighting and only then can they join road traffic. With this connector, you can easily connect the lights of the trailer to the car's electrical system.

- Excellent contact
- Copper connectors
- Massive build
- Spring cover
- Removable, installable connectors
- Compatible with most cars and trailers
- Simple connection and assembly

Manufactured in accordance with ISO1724.

Technical parameters:

- Voltage: max. 12V
- Number of poles: 13 pcs
- Marking of poles / Cable colors:
- 1 - yellow - left index
- 2 - blue - nebulae
- 3 - white - body
- 4 - green - right index
- 5 - brown - right lights
- 6 - red - brake lights
- 7 - black - left lights
- 8 - gray - reversing lamp
- 9 - brown/blue - power supply
- 10 - brown/red - charging cable (connected fiber)
- 11 - free
- 12 - free
- 13 - black/white - body
- Cable attachment: Screw
- Bracket attachment: 3 screws (not included)
- Color: Black

Product parameters
