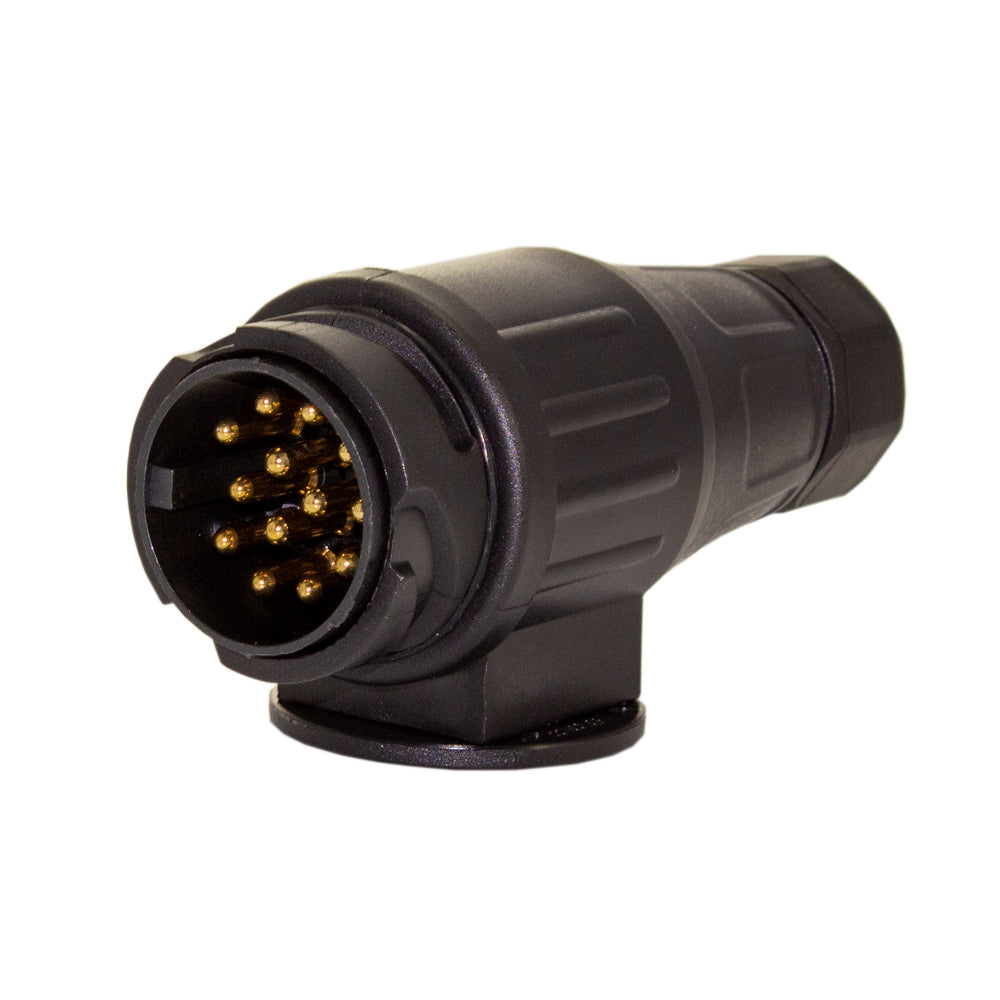

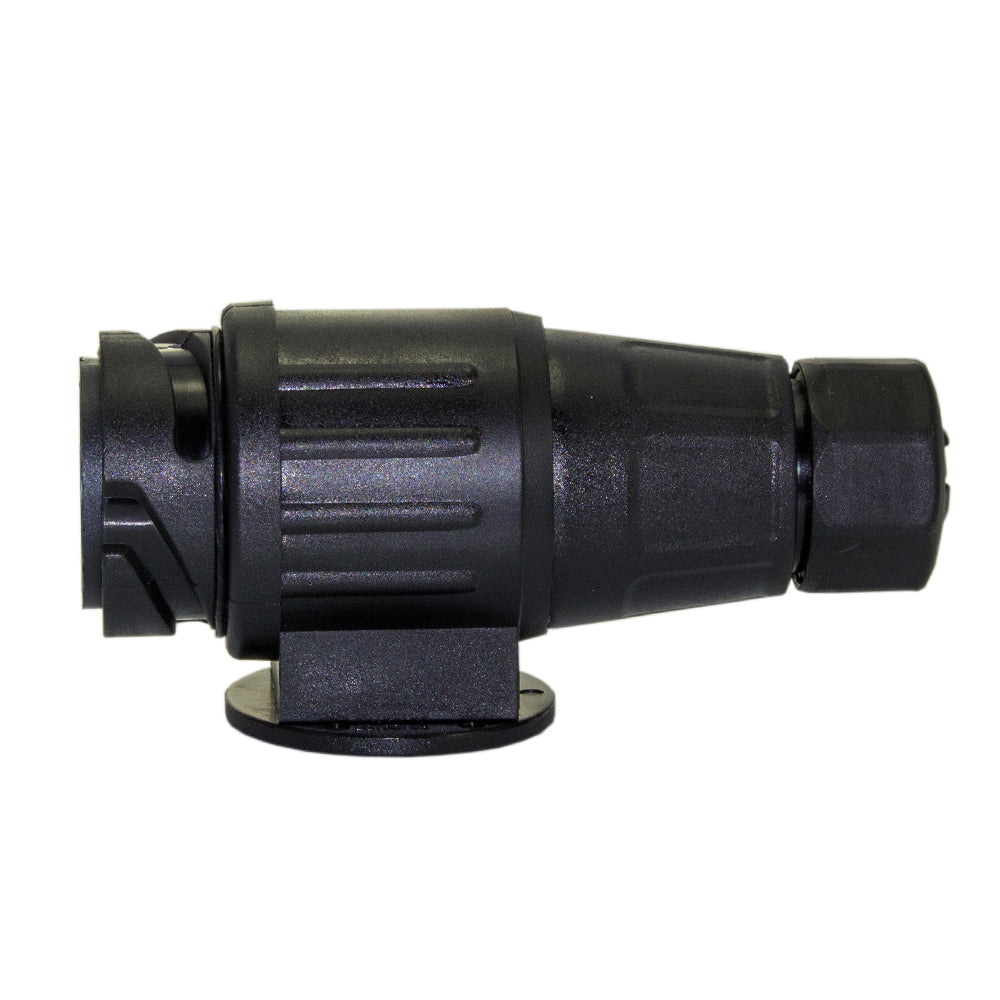

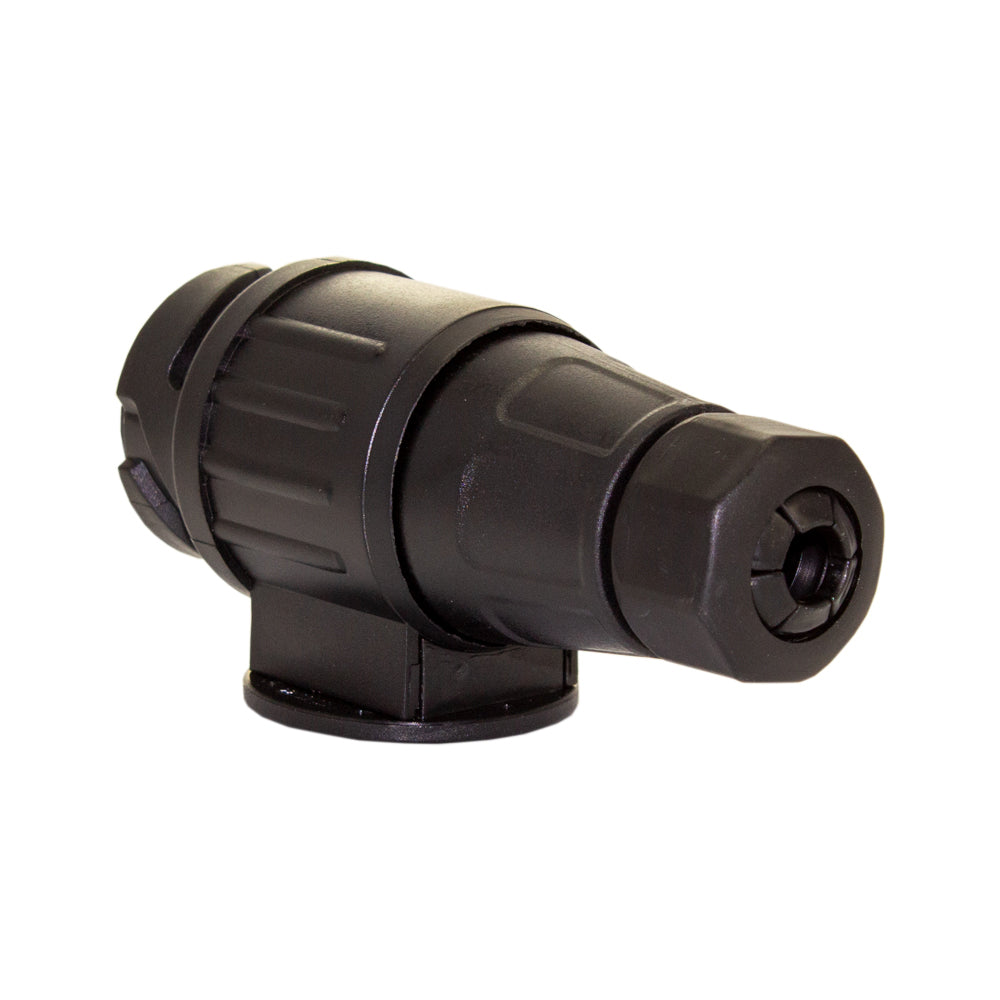

Towing device plug 13 poles CARGUARD 54943

Tow bar plug - 13 pins, max. voltage 12V, copper connectors for reliable contact, solid design with spring cover, removable and installable connectors, colour-marked poles (left/right index, fog lights, brake lights, reversing lamp, power supply, charging), compatible with most cars and trailers

Show full description
In stock 8 pcs
Expected shipping: 09.10.2026
129,00 Kč 106,61 Kč excl. VAT
CARGUARD  |  SKU: 08750221  |  Barcode: 6425215797646
Log in for VAT-free pricing

Product description

The regulations state that trailers must be equipped with adequate lighting and only then can they join road traffic. With this connector, you can easily connect the lights of the trailer to the car's electrical system.

Excellent contact
Copper connectors
Massive execution
Spring cover
Removable, installable connectors
Compatible with most cars and trailers
Simple connection and installation

Manufactured in accordance with ISO1724.

Technical parameters:

- Voltage: max. 12V
- Number of poles: 13 pcs
- Marking of poles / Cable colors:
- 1 - yellow - left index
- 2 - blue - nebulae
- 3 - white - body
- 4 - green - right index
- 5 - brown - right lights
- 6 - red - brake lights
- 7 - black - left lights
- 8 - gray - reversing lamp
- 9 - brown/blue - power supply
- 10 - brown/red - charging cable (connected fiber)
- 11 - free
- 12 - free
- 13 - black/white - body
- Cable attachment: Screw
- Color: Black
