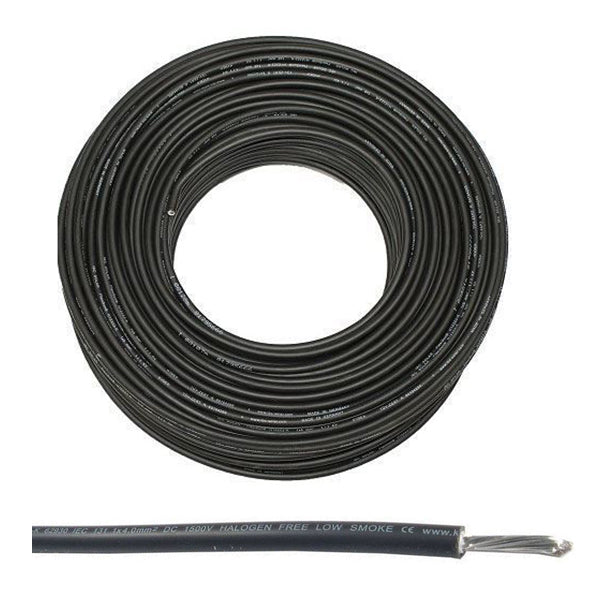

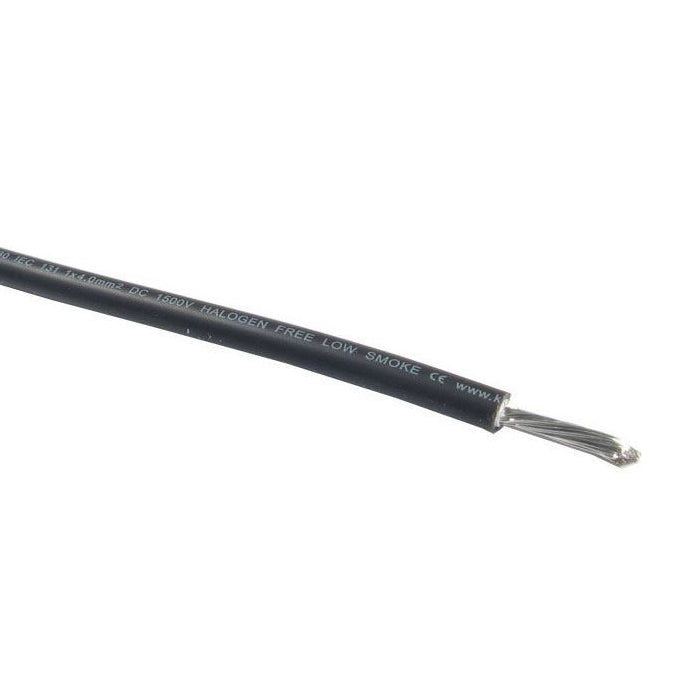

Solar cable 10mm2, 1500V, black, 100m

Solar cable type H1Z2Z2-K intended for photovoltaic distribution and DC current conduction. Double reinforced insulation from halogen-free XLPE guarantees excellent resistance to UV radiation, ozone, oxygen, oils and mechanical stress. The cable is non-flammable with self-extinguishing properties. Suitable for outdoor and indoor use.


Technical parameters

- cable type: H1Z2Z2-K
- conductor cross-section: 10 mm2
- max. conducted voltage: 1500V DC
- black colour
- jacket: double XLPE without halogen
- core 10mm2 CuSn+5mm PVC+7.2mm PE
- self-extinguishing external insulation according to DIN60332–1–2
- UV protection

Packaging: 1 pc = 100 m
