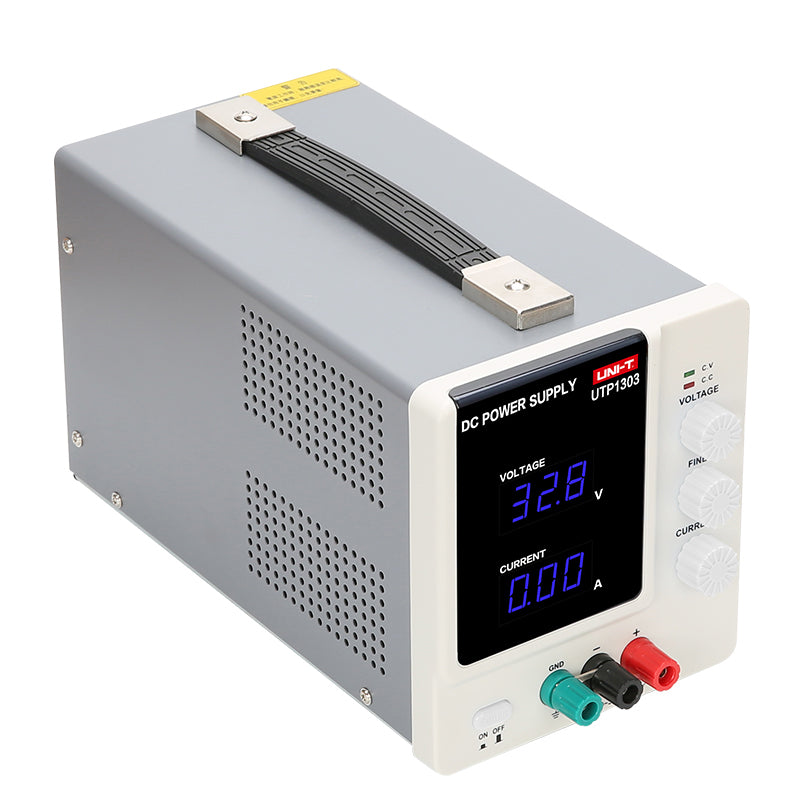

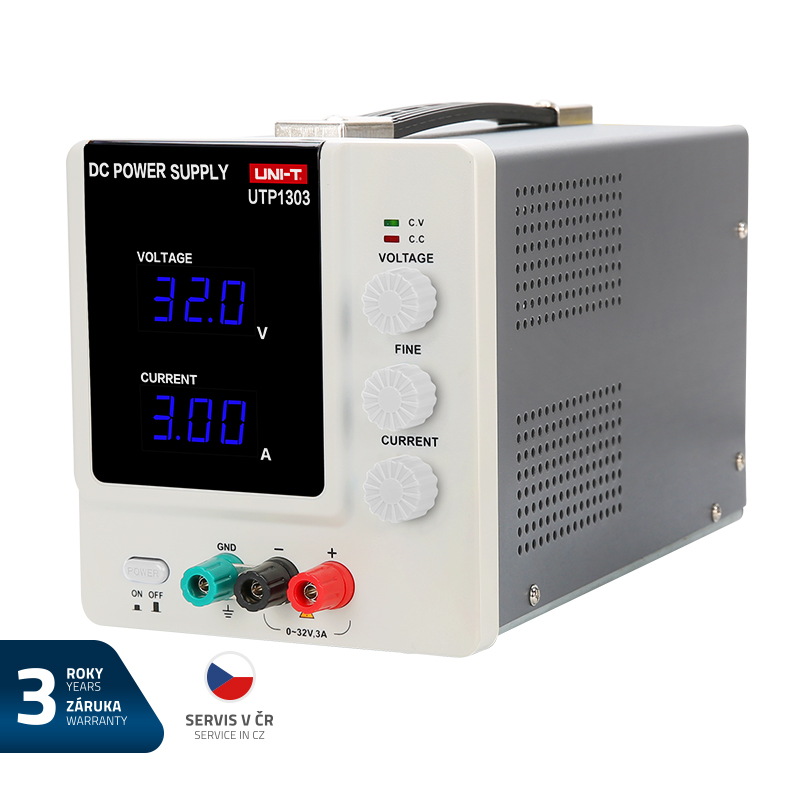

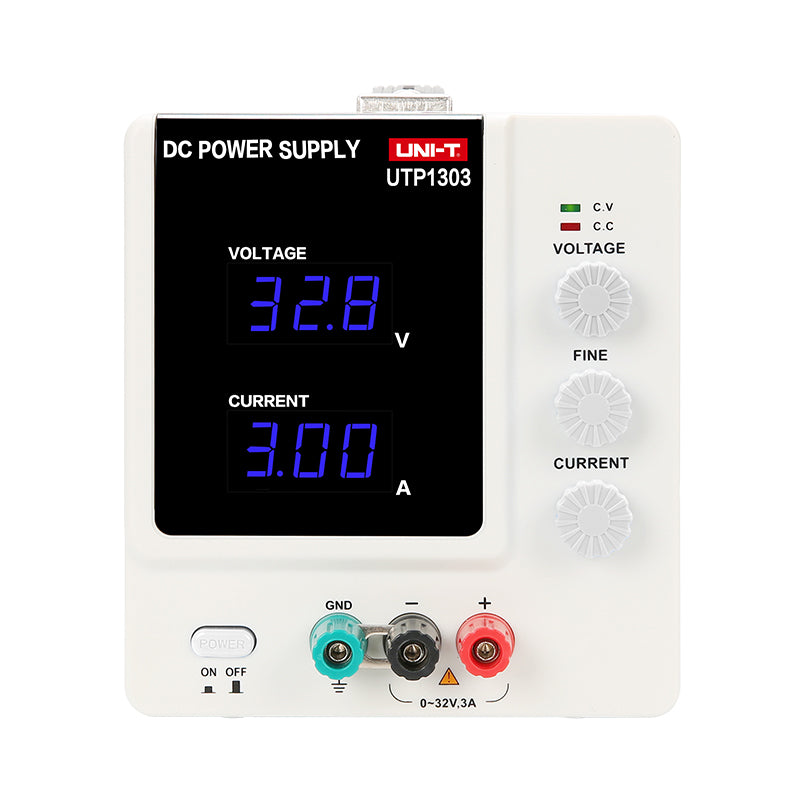

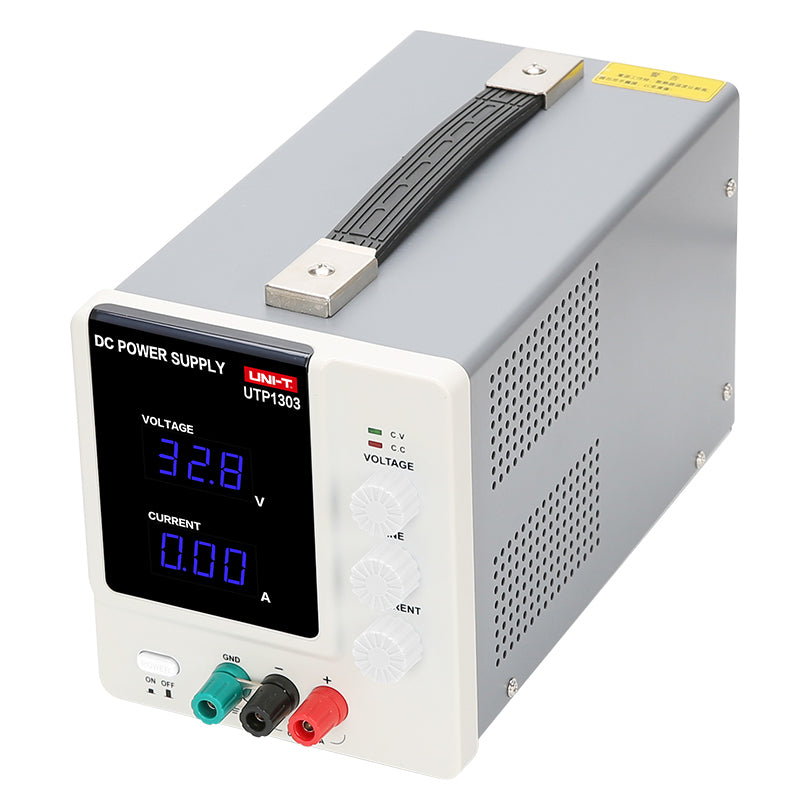

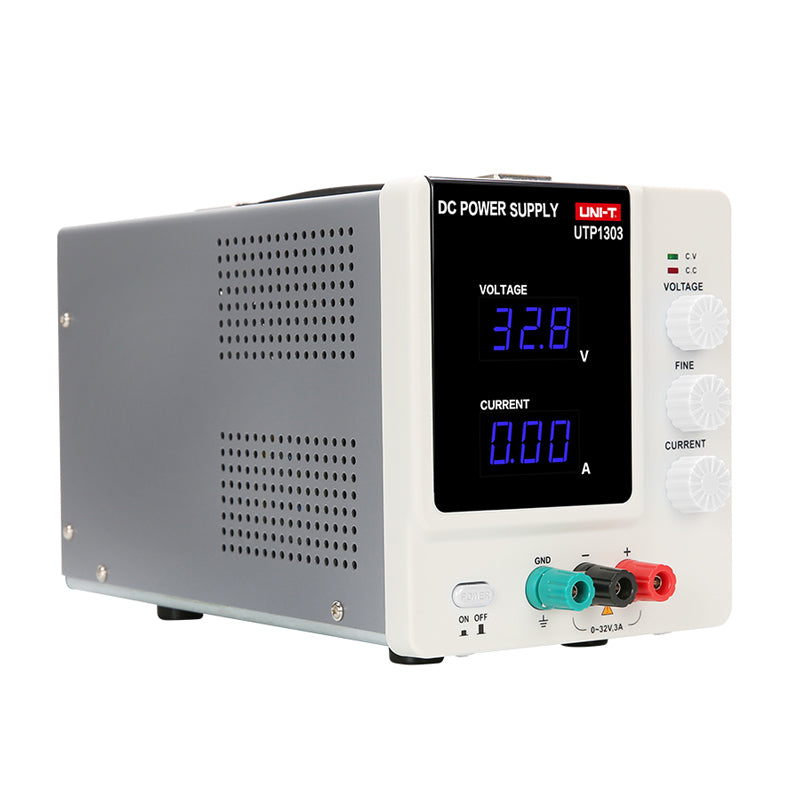

DC Power Supply UNI-T UTP1303
Single-channel laboratory power supply - output voltage 0–32V, output current 0–3A, voltage regulation ?0.01%+3mV, current regulation ?0.2%+3mA, voltage ripple 1mV rms, current ripple 3mA rms, LED display, linear mains transformer, power supply 115/230V AC 50–60Hz, dimensions 145 × 175 × 284 mm, weight 5 kg, MTBF ?2000 hours, power cord included
In stock 3 pcs
Expected shipping:
25.09.2026
Regular price
2.459,00 Kč
2.032,23 Kč
excl. VAT
Unit price
/
Unavailable
UNI-T | SKU:
04220151
Product description
This product comes with a 3-year warranty.
UNI-T UTP1303 - single channel DC power supply
SPECIFICATION
Output Voltage 0-32V
Output Current 0-3A
Load Regulation:
Voltage <=0.01%3mV
Current <=0.2%+3mA
Line Regulation:
Voltage <=0.01%+3mV
Current <=0.1%+3mA
Rippple and Noise
Voltage 1mV rms
Current 3mA rms
Display Accuracy <=±(1%+2)
Reliability (MTBF) >=2000 hours
Diplay LED
GENERAL CHARACTERISTICS
Power: 115/230V AC, 50-60Hz
Weight: 5kg
Product Size: 145x175x284mm
ACCESSORIES:
Power Cord
