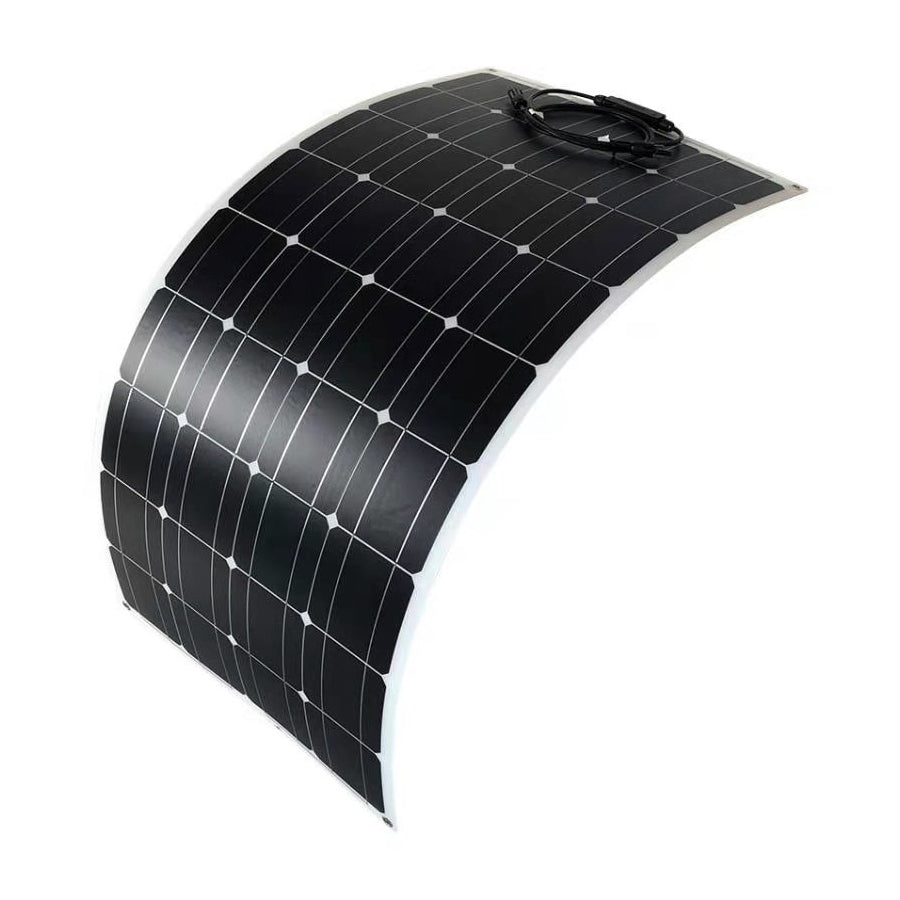

Solar panel MONO FLEX 18V/100W monocrystalline flexible
Recommended
Flexible monocrystalline solar panel - power 100W, open-circuit voltage Voc 22.46V, Vmp 18.72V, Imp 5.34A, short-circuit current Isc 5.77A, module efficiency 18.2 %, cell efficiency 21.6 %, tolerance ±3 %, matt PET film surface with laminated EVA film, waterproof construction, resistance to UV, hail and temperature changes, mechanical load test
In stock 3 pcs
Expected shipping:
09.10.2026
Regular price
€87,75
Unit price
/
Unavailable
MONO FLEX | SKU:
04280297
Product description

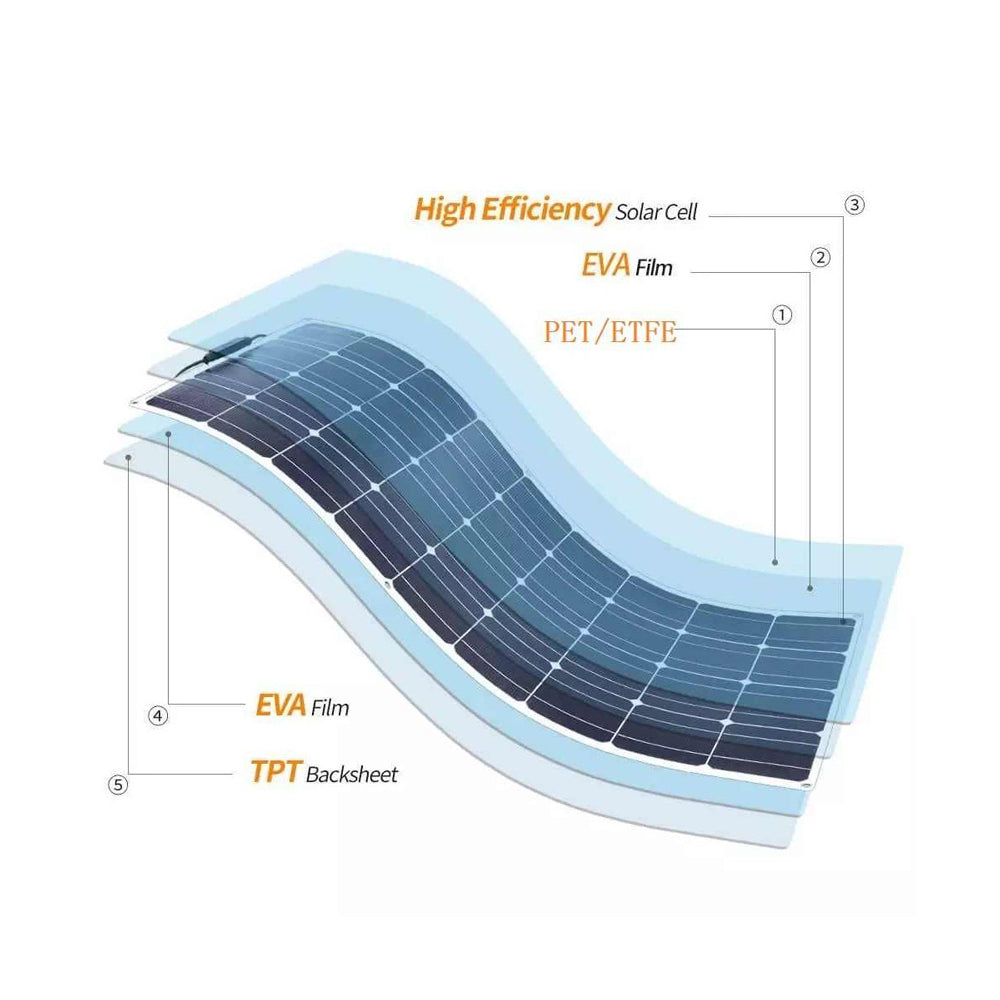

The MONO FLEX monocrystalline flexible panel has a cell conversion efficiency higher than 21.6%. The panel is covered with matte PET film and laminated EVA film. Waterproof, ideal for installation in layouts.
Guarantee of quality:
- Electrical insulation test
- Test of resistance to external conditions
- Hot spot test
- UV resistance test
- Test of resistance to temperature changes, hail impact
- Moisture resistance test
- Durability test
- Mechanical stress test
Technical parameters:
- Maximum power Pmax (W): 100W
- Tolerance (%): ± 3%
- Open circuit voltage Voc (V): 22.46
- Voltage at maximum power Vmp (V): 18.72
- Current at maximum power Imp (A): 5.34
- Short circuit current Isc (A): 5.77
- Module efficiency (%): 18.2
- Efficiency of solar cells (%): 21.6
- Rated fuse current (A): 10
- Protection class: IP65
- Maximum panel field voltage (V): DC1000
- Operating temperature range: -40 °C-85 °C
- Dimensions: 1080x540x4mm
- Weight: 2.13 kg
