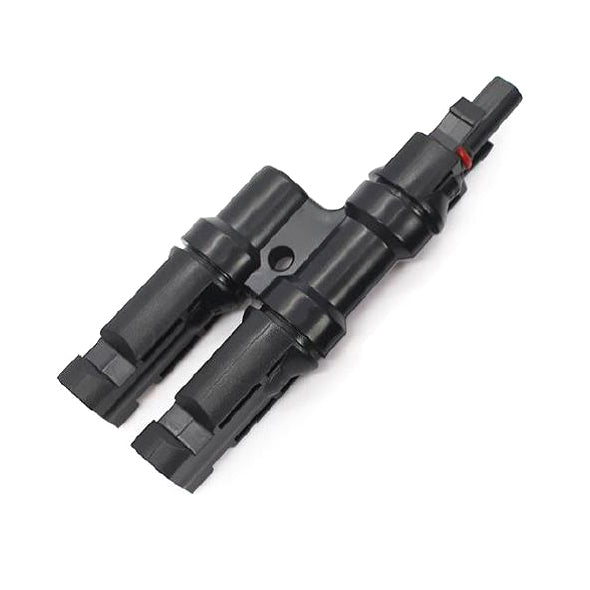

Connectors for solar panels MC4 T GETI 1x female, 2x male

MC4 T branch connector - configuration 1× socket + 2× connector, parallel connection of solar panels, operating voltage 1500V DC, rated current 50A, IP67 rating, contact resistance <0.5m?, compatible cable cross-section 2.5 mm2, 4 mm2 and 6 mm2, operating temperature -40 to +90°C, UV-resistant ABS plastic

Show full description
In stock more than 50 pcs
Expected shipping: 25.09.2026
€3,66
GETI  |  SKU: 03360302  |  Barcode: 8595563729526
Log in for VAT-free pricing

Product description

Branch MC4 connectors are used for parallel connections of solar panel cables.

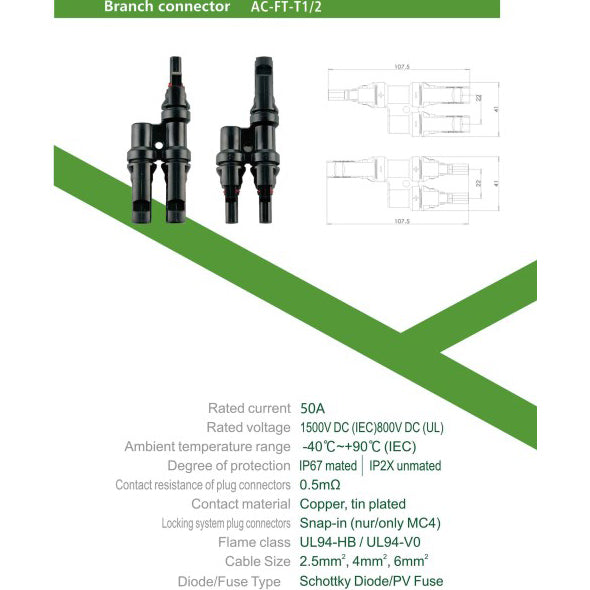

Technical parameters:

- operational voltage: 1500 V DC
- rated current: 50 A -
- IP rating: IP67
- transition resistance: <0,5m?
- cable diameter: 2.5mm2, 4mm2, 6mm2
- operating temperature -40°~90°C

Product parameters
