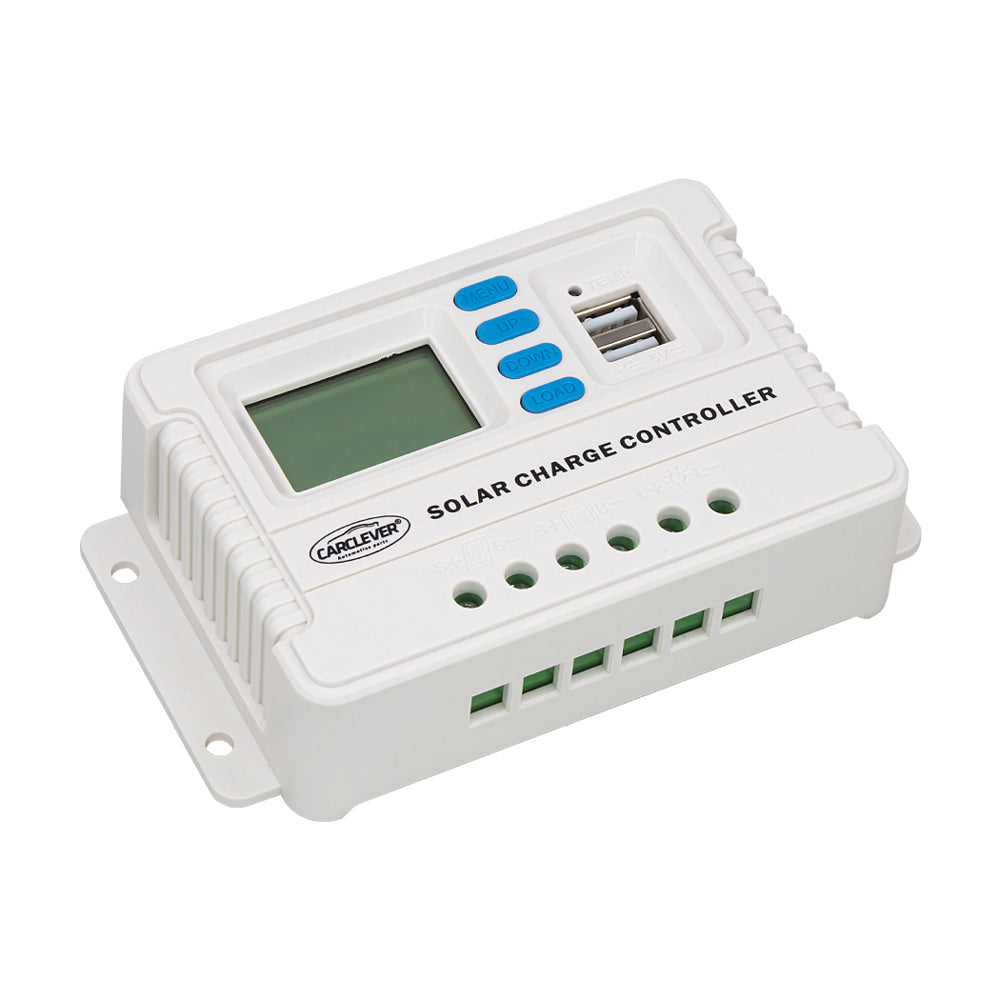

Solar controller PWM CARCLEVER 34405 12-24V 20A

The PWM (Pulse Width Modulation Technology) solar regulator is designed for smaller island solar systems with 12V or 24V panels and a maximum current of up to 20 A in connection with PV panels up to 240W(12V) / 480W(24V) with an output voltage of up to 55 V The advantage is very simple and undemanding installation and reliable operation. The clear LCD display provides information on the state of charge, currents from the panels and to the load.

- simple switching on and off of the load output and display of the status using the LCD display
- internal temperature sensor
- automatic detection of 12 V or 24 V
- 4 phases of battery charging
- overvoltage protection
- short circuit protection
- protection against polarity reversal of solar panel and battery connections
- disconnects the output of the load when the voltage is low
- designed for indoor installation, wall mounting
- for charging lead-acid batteries

Technical parameters:

- nominal voltage: automatic detection of 12 / 24 V
- battery: lead flooded, GEL, AGM, etc.
- PV input voltage: DC12 V(15-40 V)/DC24 V(30-55 V)
- Max. PV input power: 240 W@12 V/ 480 W@24 V
- power consumption in standby mode: <20 mA (12 V) / <30 mA (24 V)
- maximum current for charging: 20 A
- maximum current load: 20 A
- 2x USB 5V/1A
- operating temperature range: -40 °C - +50 °C
- protection: IP22
- dimensions: 139 x 81.6 x 35.7 mm
- weight: 150 g
