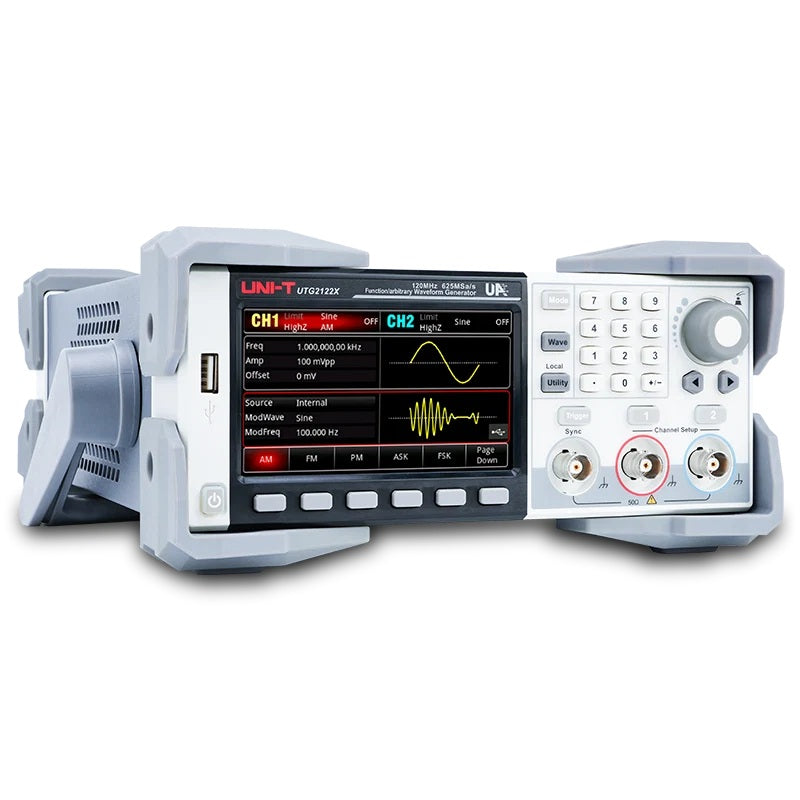

UNI-T UTG2062X 60 MHz Function Generator

We provide a 3-year warranty on this product.

The UNI-T UTG2062X is a high-precision, dual-channel function and arbitrary waveform generator with a bandwidth of 60 MHz, a sampling rate of 1.2 GS/s and 16-bit vertical resolution. Thanks to advanced Direct Digital Synthesis (DDS) technology and an arbitrary waveform memory of up to 16 Mpts, it delivers an exceptionally clean signal with minimal distortion. It is the ideal choice for development laboratories, service centres, industrial testing and technical education.


Product specifications:

- 2 independent channels with full output power and mutual tracking
- 60 MHz bandwidth for a sine wave (square wave up to 25 MHz)
- High sampling rate of 1.2 GS/s and 16-bit vertical resolution for detailed signal display
- Memory depth of 16 Mpts per channel for generating complex and long waveforms
- Modulation types: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM
- Harmonic generator up to the 16th order
- Integrated 7-digit frequency counter
- 4.3" clear colour TFT LCD display with an intuitive user interface (touchscreen)
- Connectivity: USB Host, USB Device, LAN interface for remote control and data transfer

Top-class performance and accuracy for your measurements:

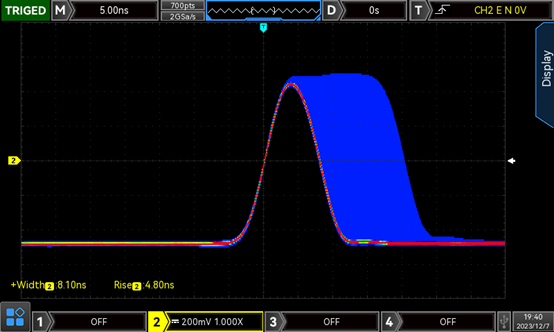

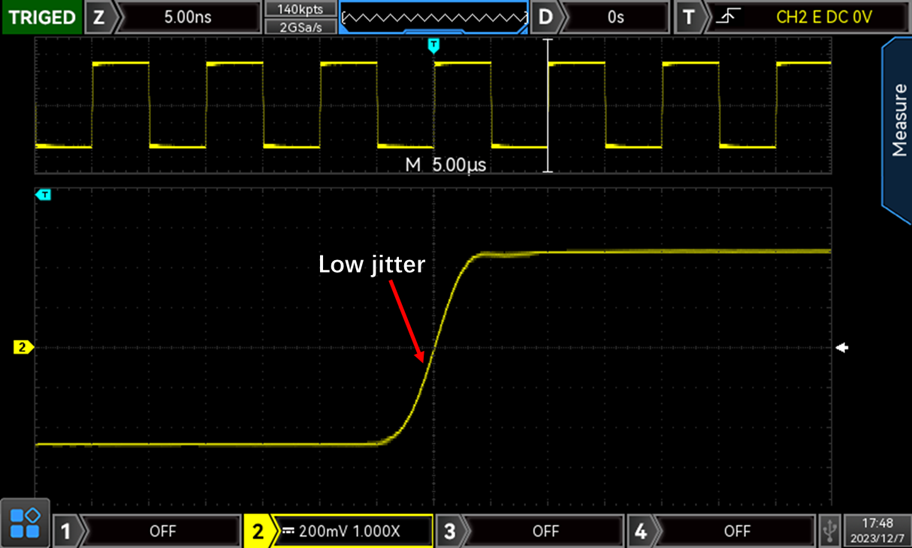

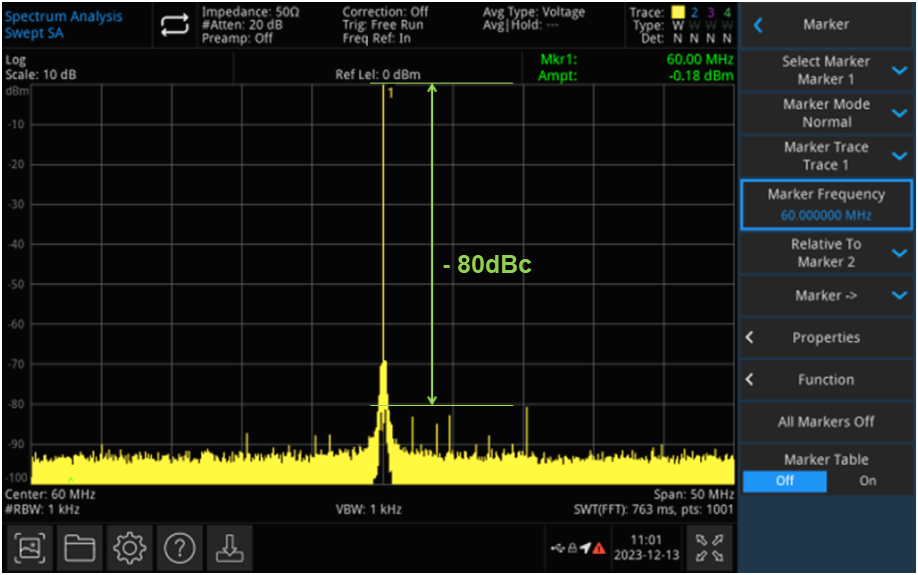

The UNI-T UTG2062X signal generator offers a modern solution for generating both analogue and digital signals. It utilises advanced DDS (Direct Digital Synthesis) technology and Point-by-Point output technology to generate arbitrary waveforms without losing any data points. The result is excellent signal purity, low phase noise and high frequency stability.

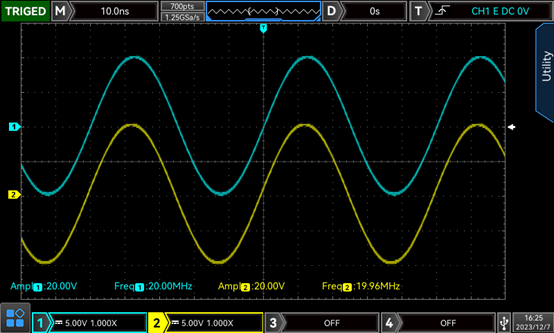

Two full-featured and independent channels:
The unit features two full-featured output channels with identical specifications. The channels can be operated completely independently, or combined in signal summing, phase shift or precise mirroring/parameter tracking modes (coupling & tracking).

A wide range of modulations and operating modes:
The UTG2062X offers an extensive range of analogue and digital modulation types. Without the need for external add-on equipment, you can easily work with AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM and SUM modulations. Sweep and Burst modes are also available, which you will find useful when testing the frequency responses of filters, amplifiers or other electronic circuits.

Powerful arbitrary waveform generator:

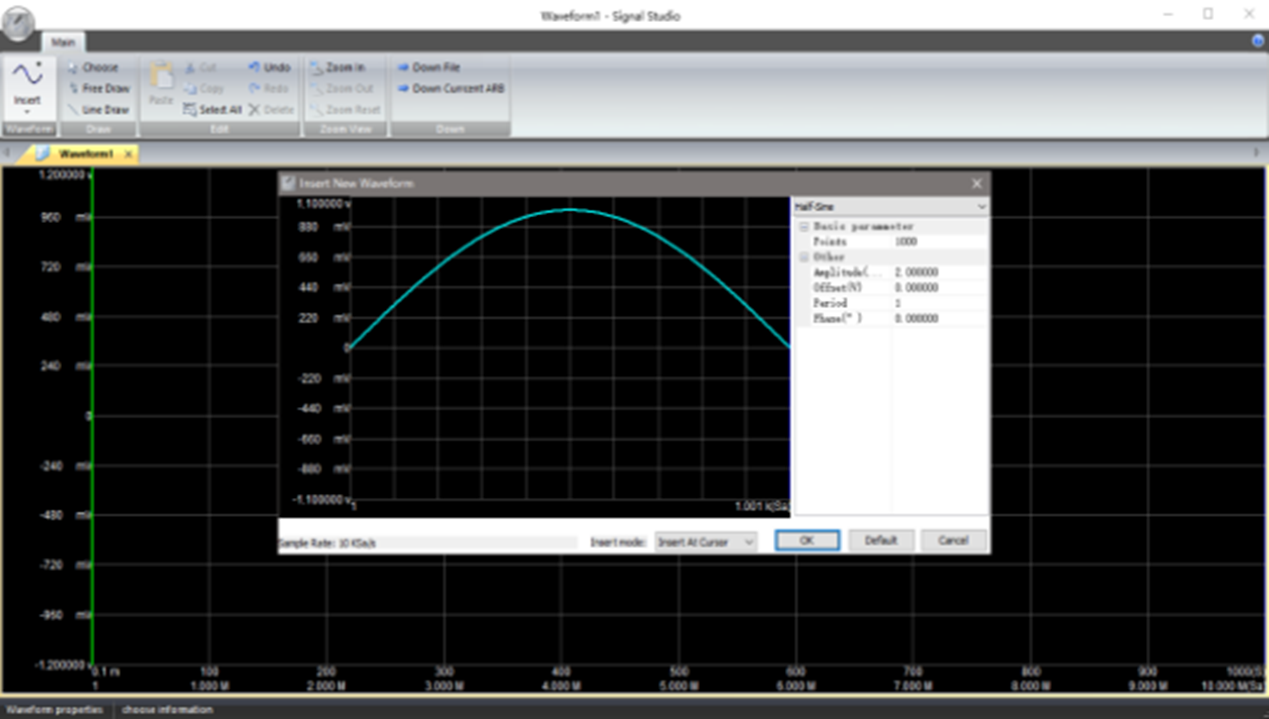

With 16 Mpts of memory per channel and 16-bit resolution, you can create, edit and generate any custom signals. The generator comes with dozens of standard and specialised waveforms pre-programmed into its memory (e.g. exponential rise/fall, Lorentz, Sinc, Gaussian noise and others). Custom waveforms can be easily imported from a PC via the supplied software or a USB drive.

Intuitive controls and connectivity:

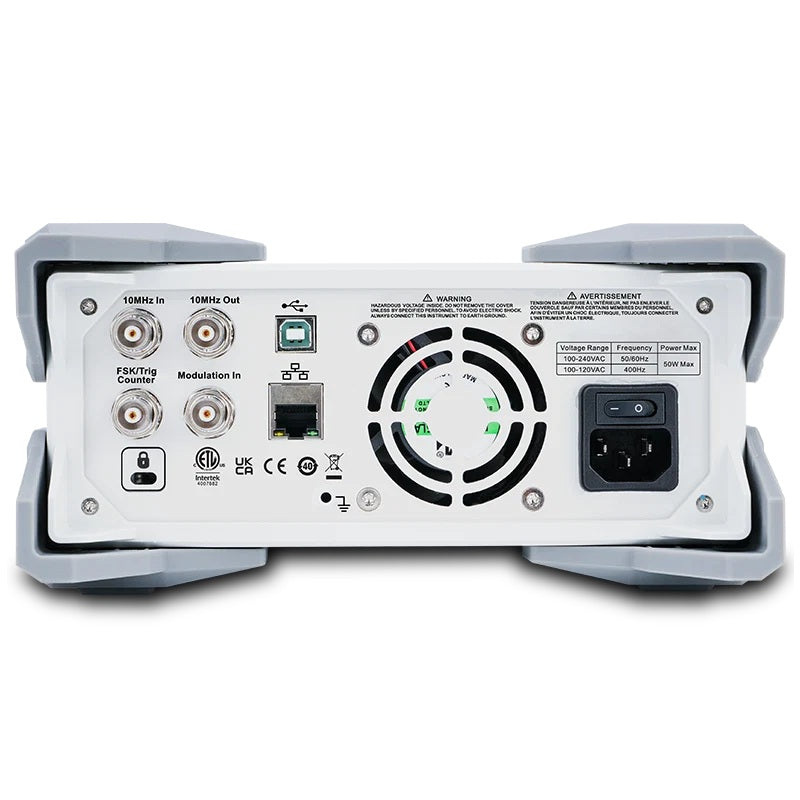

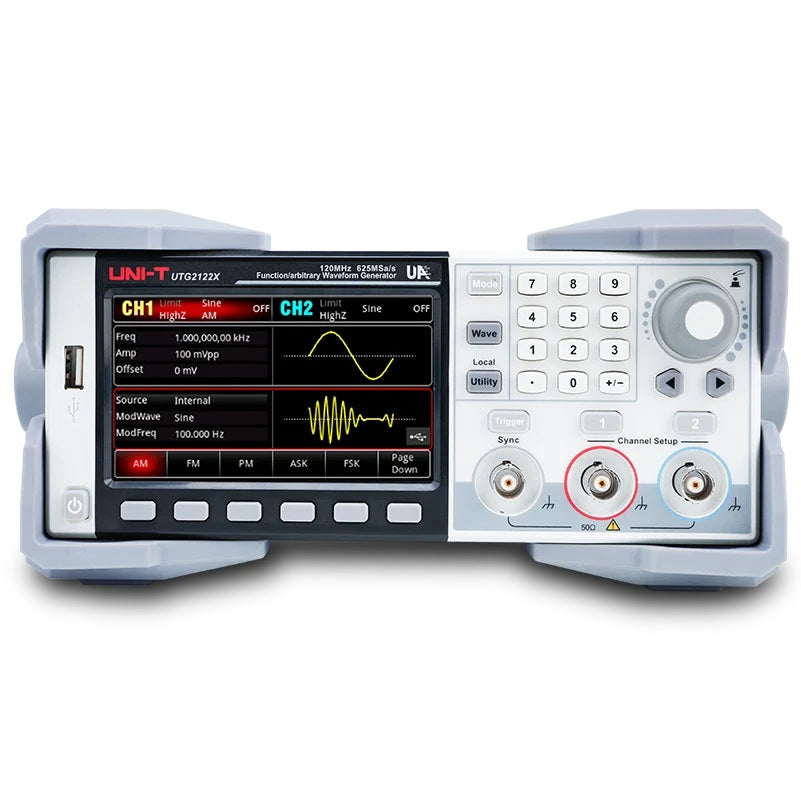

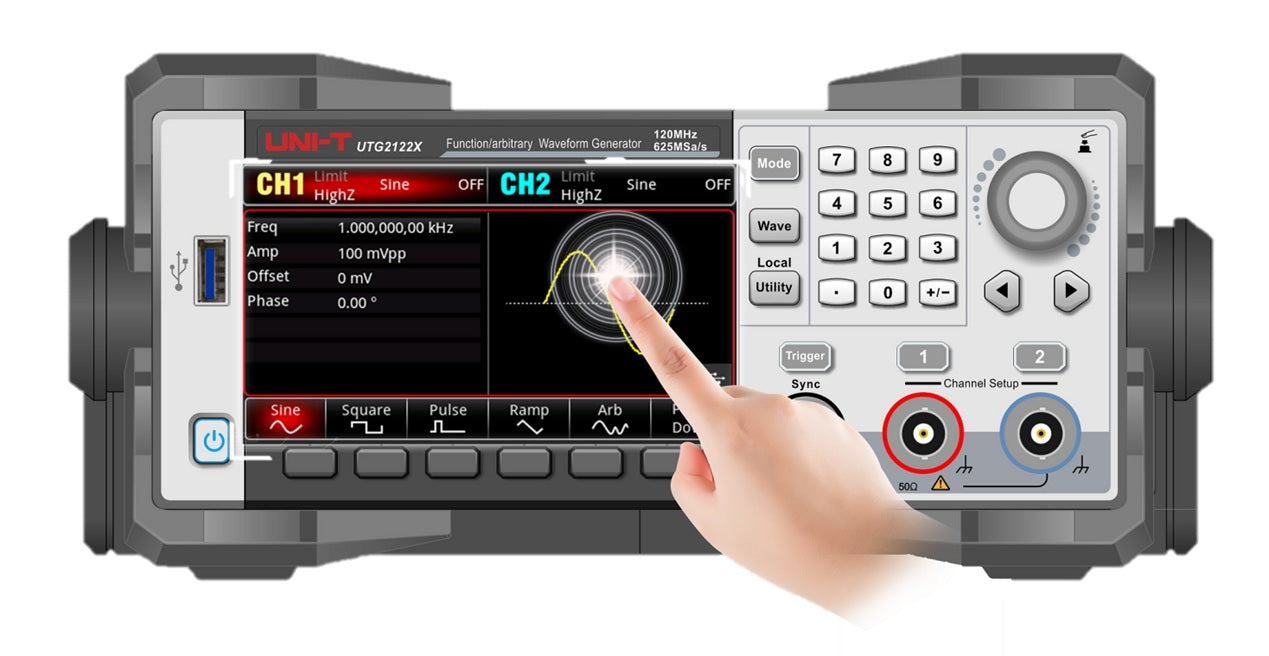

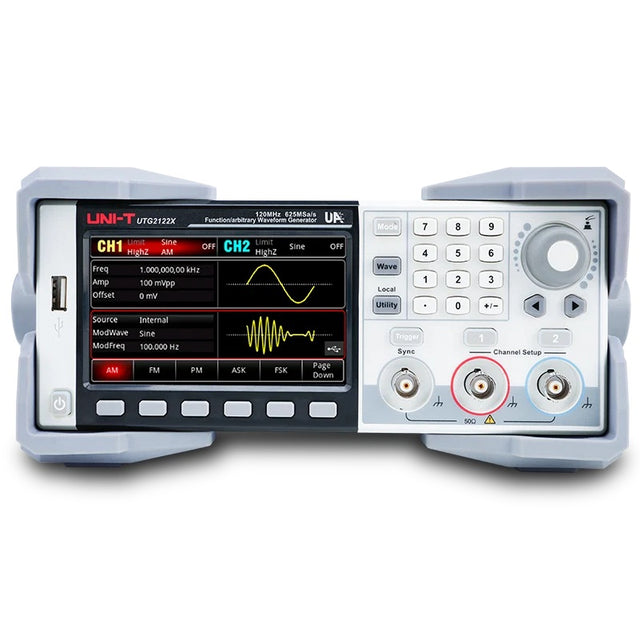

The front panel is dominated by a bright 4.3-inch TFT display, which clearly shows both channels simultaneously, including a graphical representation of the output waveform. Thanks to the USB Device, USB Host and LAN interfaces, the generator can be easily integrated into automated test systems (SCPI command support) or controlled remotely from a computer.


Technical specifications:

- model: UNI-T UTG2062X
- number of channels: 2
- sampling rate: 625 MSa/s
- maximum frequency: 60 MHz
- frequency range (Square wave): 1 µHz – 25 MHz
- frequency range (Sawtooth / Triangle wave): 1 µHz – 3 MHz
- frequency range (Pulse): 1 µHz – 25 MHz
- frequency resolution: 1 µHz
- sampling rate: 1.2 GS/s (16-bit resolution)
- Vertical resolution: 16 bits
- Waveform length (Arbitrary): 16 Mpts per channel
- Modulation types: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM
- output modes: Continuous, Sweep, Burst, Harmonic
- harmonic generator: up to the 16th order
- frequency counter: built-in, 100 mHz – 200 MHz
- Output impedance: 50 ? / High-Z
- Output voltage range: 1 mVpp – 10 Vpp (50 ?); 2 mVpp – 20 Vpp (High-Z)
- Display: 4.3" TFT LCD, resolution 480 × 272 pixels (touchscreen)
- Interfaces: USB Host, USB Device, LAN
- Power supply: AC 100–240 V, 50/60 Hz
- Dimensions: approx. 265 × 110 × 320 mm
- Weight: approx. 3.2 kg


Package contents:
- UNI-T UTG2062X function generator
- power cable (EU)
- USB cable for connection to a PC
- BNC–BNC cable (UT-L45)
- BNC cable with alligator clips (UT-L02A)

MANUFACTURER: UNI-TREND
