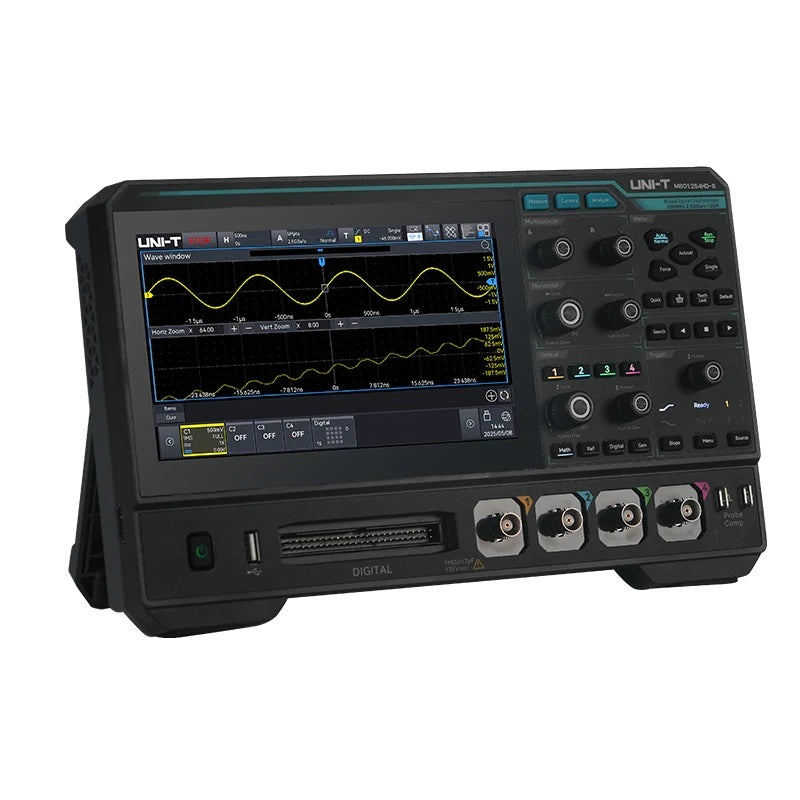

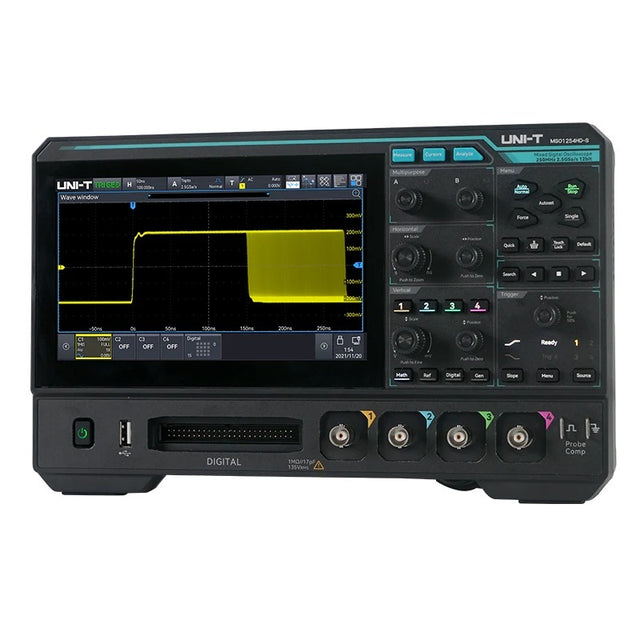

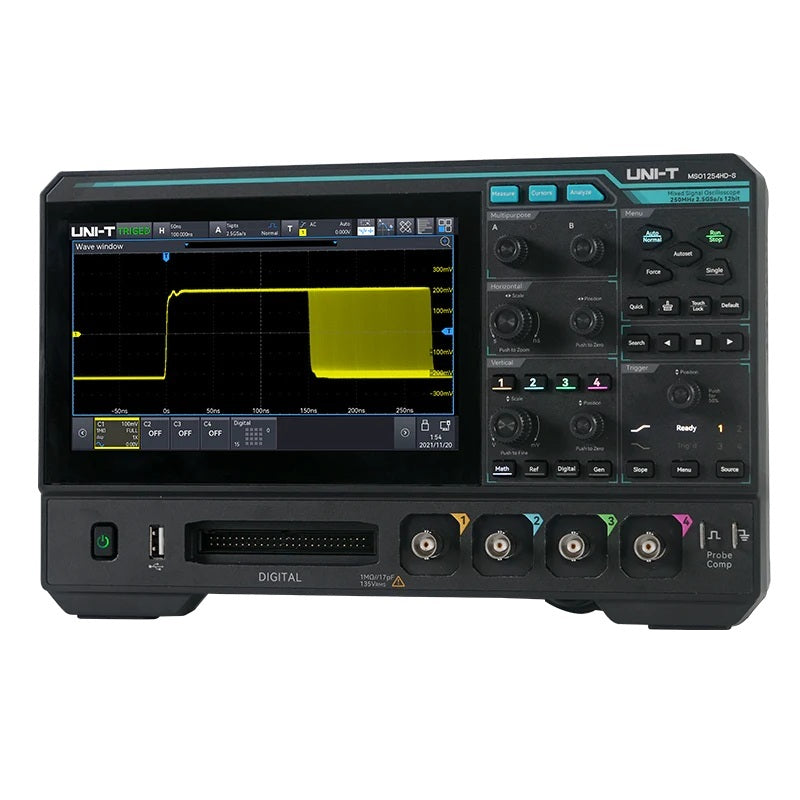

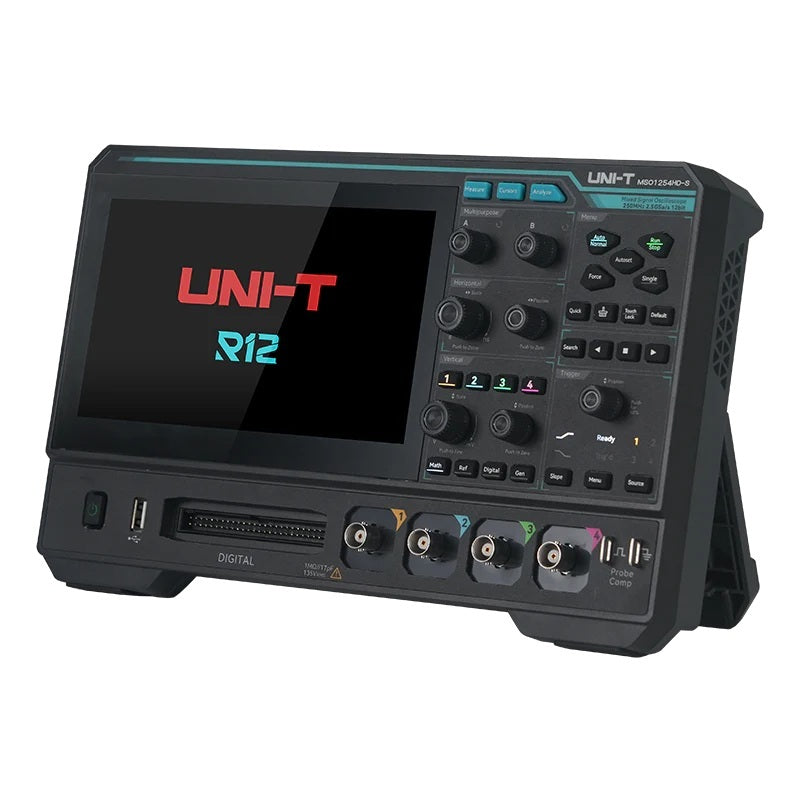

UNI-T MSO1254HD Oscilloscope

We provide a 3-year warranty on this product. The UNI-T MSO1254HD high-resolution oscilloscope is a 4-channel mixed-signal oscilloscope with a bandwidth of 250 MHz and a sampling rate of 2.5 Gsa/s, providing clear and accurate waveform analysis for embedded and general-purpose electronics.
With 100 Mpts of memory, a fast acquisition rate of 1,000,000 wfms/s and 16-channel digital logic analysis, it offers powerful mixed-signal debugging and reliable fault detection for engineers, laboratories and educators. Product specifications: - bandwidth: 250 MHz - analogue channels: 4 - digital channels: 16 (MSO logic analysis)
- real-time sampling rate: 2.5 GSA/s - memory depth: 100 Mpts - waveform capture rate: 1,000,000 wfms/s
- Ultra Phosphor 3.0 Technical specifications: - analogue bandwidth: 250 MHz bandwidth for embedded system design, power electronics and mixed-signal debugging
- Real-time sampling rate: Up to 2.5 GSA/s on analogue channels; digital channels support up to 1.25 GSA/s
- Vertical resolution: True 12-bit ADC with up to 4096 quantisation levels for an ultra-clean, low-noise waveform display
- Channels: 4 analogue channels + 16 digital channels for comprehensive mixed-signal analysis - Memory depth: Up to 100 Mpts per channel for long-term waveform recording
- Signal capture rate: Up to 200,000 wfms/s (sequential mode: 1,000,000 wfms/s) for detecting rare and intermittent signal events

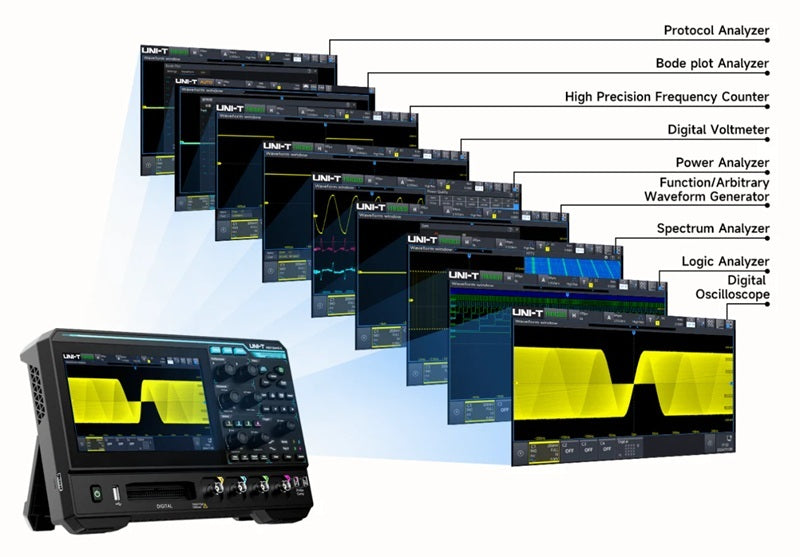

- Integrated 9-in-1 instrument: digital oscilloscope logic analyser function/arbitrary waveform generator spectral analyser digital voltmeter (DVM) frequency counter

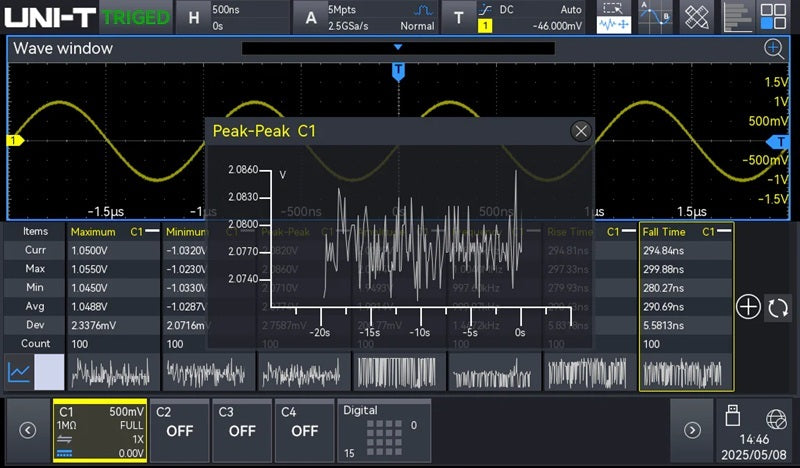

protocol analyser Bode plot analyser power analyser - Enhanced parameter measurement: Includes a bar chart mode and line graph visualisation for dynamic monitoring.
- Waveform recording: Real-time hardware recording of up to 100,000 samples with the option to export via USB

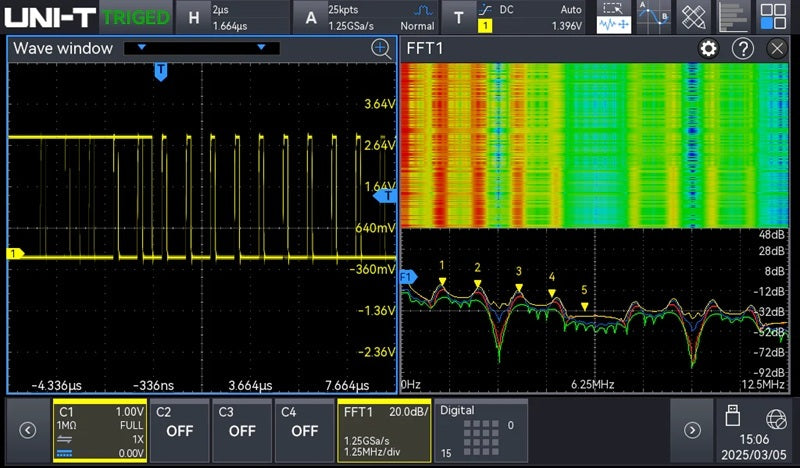

- Enhanced FFT: FFT with up to 1 million points, featuring waterfall display, marker detection, spectrum settings and analytical tools - ERES support: Enhanced resolution of up to +4 bits for higher-precision measurements

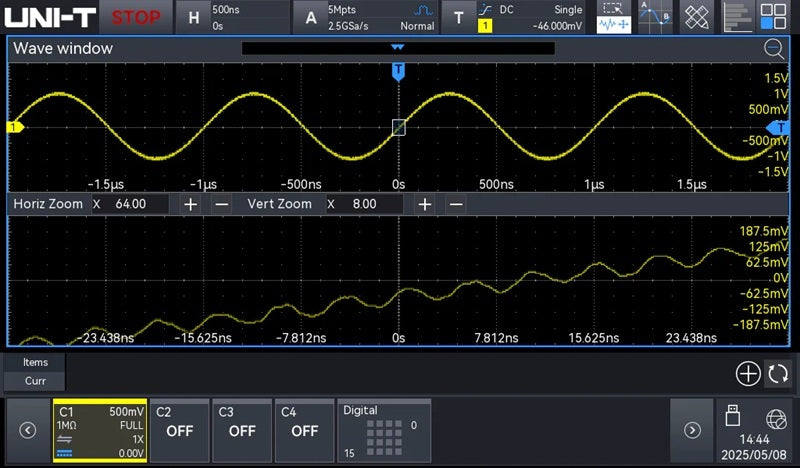

- Measurement parameters: 56 automatic measurements with graphical display modes - Multi-window display: Simultaneous display of waveforms, FFT, logic signals, protocol decoding and measurements
- Frequency counter: Multi-channel 7-digit hardware frequency counter with adjustable refresh rate and resolution - Digital multimeter functions: Multi-channel DC, AC RMS and DC+AC RMS signal measurement
- Trigger types: Edge, pulse width, video, ramp, settled signal, excessive amplitude, delay, time limit, duration, set and hold, Nth edge and code pattern
- Protocol triggering and decoding: RS232/UART, I2C, SPI, CAN, CAN-FD, LIN and audio protocols - Zone triggering: Graphical triggering to capture rare, complex or sporadic signal anomalies

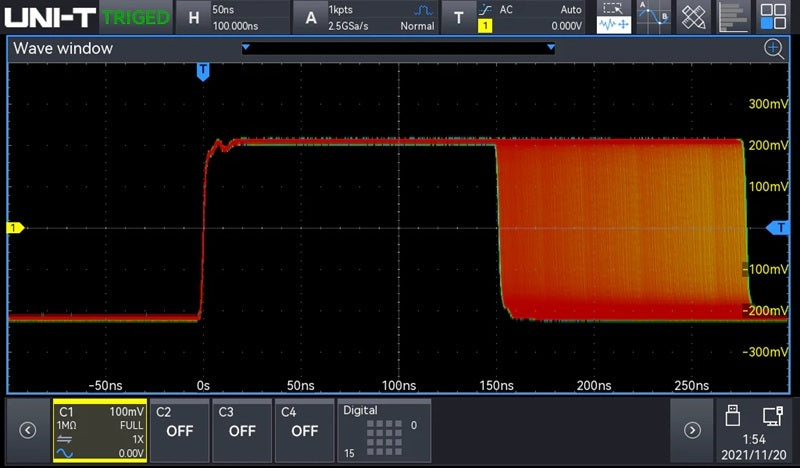

- Ultra Phosphor 3.0: Superfluorescent rendering with 256 levels of grey intensity for vivid visualisation of waveforms
- Display: 7-inch capacitive multi-touch display with HD resolution (1280×800) and support for clicking, scrolling, zooming and dragging gestures

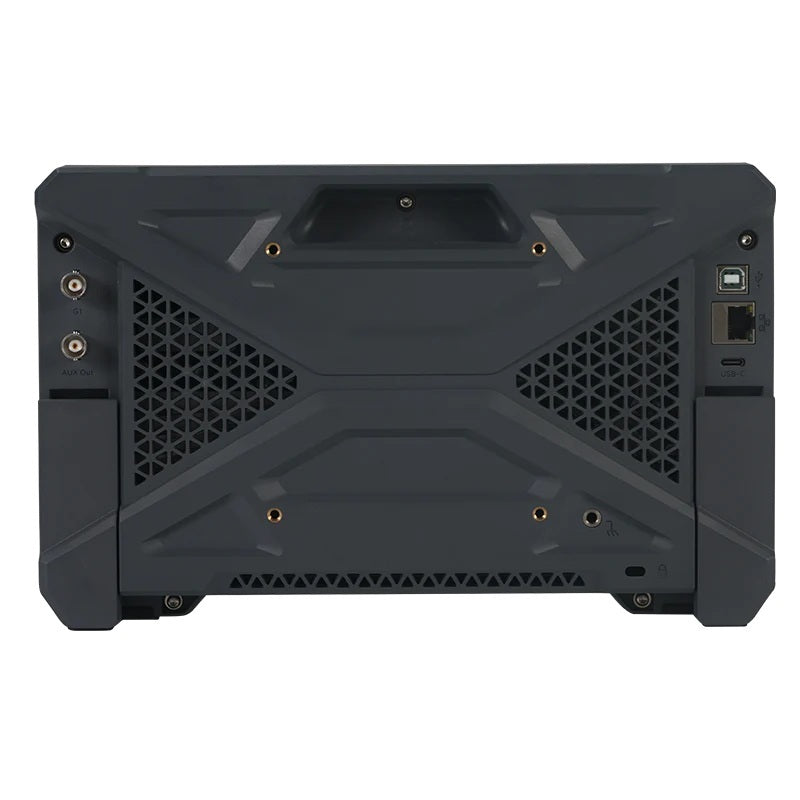

- Interfaces: USB Host, USB Device, LAN, AUX Out (Trig Out, Pass/Fail, DVM), Gen Out, HDMI - SCPI support: Fully programmable instrument control for automated test environments
- Built-in web server: Remote control and waveform monitoring from a computer or mobile browser; compatible with various platforms - Online updates: Supports firmware updates for continuous performance improvement - Supply voltage: 100...240 V AC - Dimensions: 282 x 175 x 49 mm - Gross weight: 1.6 kg Standard accessories: - USB cable - Test probe x2 - Power cable

Manufacturer: UNI-T SOFTWARE & FIRMWARE https://uni-t-shop.eu/products/mso1254hd-high-resolution-oscilloscope?_pos=1&_sid=6cef0bf8b&_ss=r
