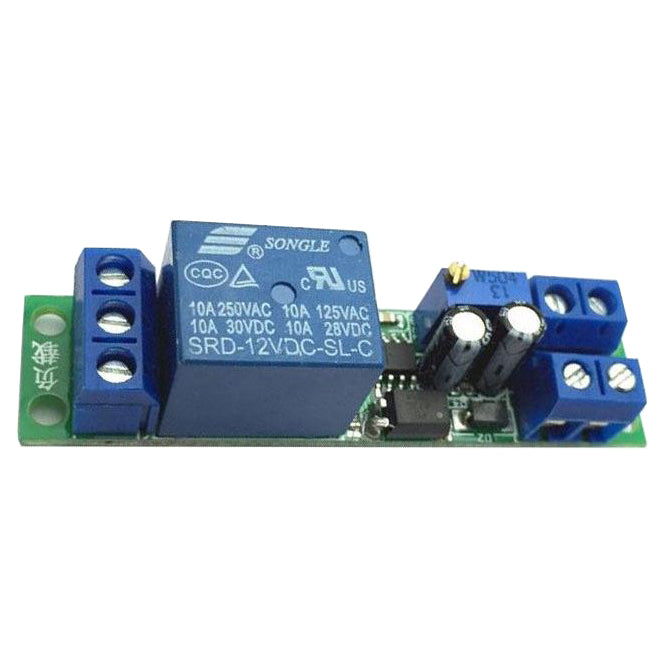

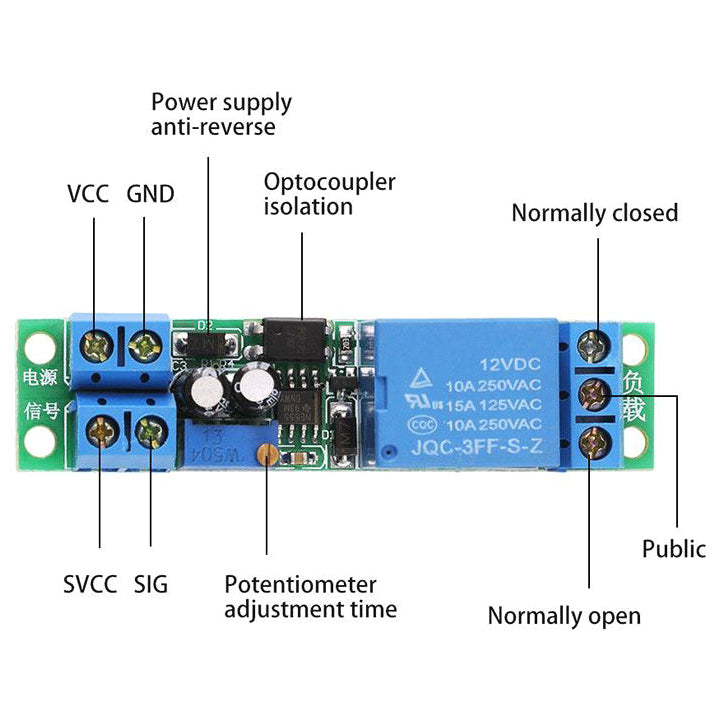

Time delay module with 1-10s relay, module with optical separation
Time delay module with relay - power supply 12V, adjustable delay 1–10 s using a trimmer, 230V/10A relay with NO contacts, NC, COM, LED indication of connected voltage, PCB with mounting holes for easy installation, suitable for delayed connection of a subwoofer, speaker systems or other appliances, requires professional installation
In stock 3 pcs
Expected shipping:
09.10.2026
Regular price
55,00 Kč
45,45 Kč
excl. VAT
Unit price
/
Unavailable
HADEX | SKU:
09830126
Product description
Time relay for delayed connection, adjustable in the range 1–10sec. After connecting the supply voltage, the relay connects after 1-10 seconds. Suitable, for example, for delayed connection of a subwoofer or speaker.
Technical parameters:
- power supply: 12V
- adjustable delay time: 1-10sec
- LED indication of connected voltage
- relay 230V / 10A, contacts NO, NC, COM
The product is not a self-functional unit, it requires professional assembly.
Technical parameters:
- power supply: 12V
- adjustable delay time: 1-10sec
- LED indication of connected voltage
- relay 230V / 10A, contacts NO, NC, COM
The product is not a self-functional unit, it requires professional assembly.
