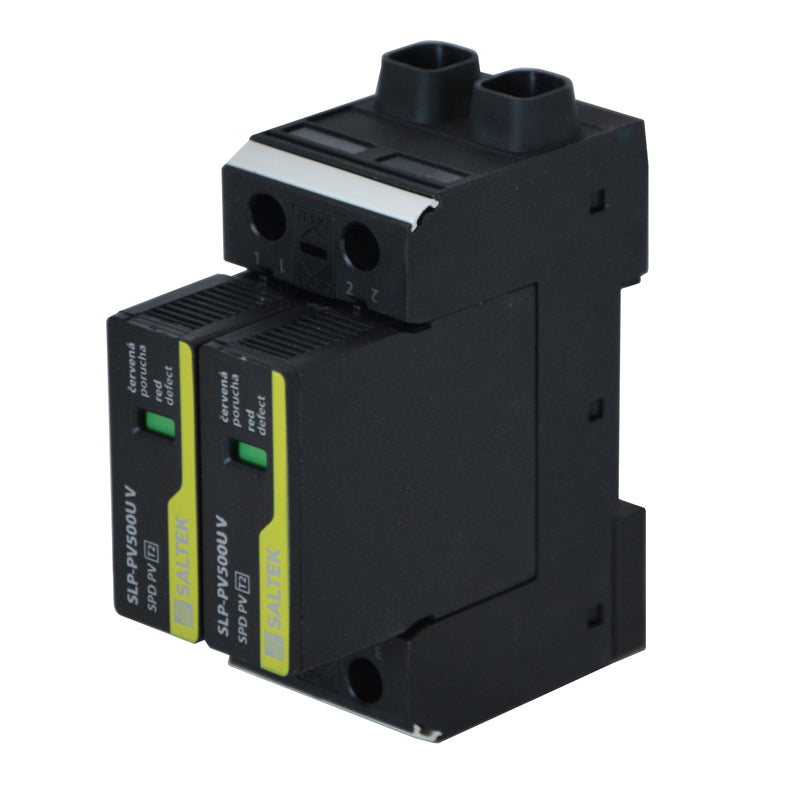

Surge protection 500 V DC
Surge protection for solar panels - maximum continuous operating voltage 500V DC, rated discharge current 15kA, voltage protection level 4.0kV, IP20 rating, operating temperature range -40 to +80°C, connection of a solid conductor max. 35 mm2, flexible conductor max. 25 mm2, designed for the DC side of photovoltaic systems, protection against atmospheric and induced overvoltage
In stock 2 pcs
Expected shipping:
29.09.2026
Regular price
1.925,00 Kč
1.590,91 Kč
excl. VAT
Unit price
/
Unavailable
SALTEK | SKU:
04290029
Product description
In order for the technology of photovoltaic systems to be able to function without any problems throughout its service life, it is necessary to take into account comprehensive protection against atmospheric and induced overvoltages. Therefore, this protection must be applied not only on the output (AC) side of the inverter, but also on the photovoltaic (DC) side.
Maximum continuous operating voltage: 500V DC
Rated discharge current: 15kA
Voltage protection level: 4.0kV
Protection: IP20
Operating temperature range: -40 to +80
Rigid conductor max .: 35mm2
Flexible conductor max .: 25mm2
Maximum continuous operating voltage: 500V DC
Rated discharge current: 15kA
Voltage protection level: 4.0kV
Protection: IP20
Operating temperature range: -40 to +80
Rigid conductor max .: 35mm2
Flexible conductor max .: 25mm2
