Spot welder of batteries GLITTER 801A+ with voltmeter

Capacitor battery spot welder with voltmeter - power supply 15V/1.3A (230V AC adapter), welding current 500–2000A, welding voltage 5.0–5.8V, max. power 11.6kW, max. pulse energy 58J, pulse duration 0.05–5 ms, recovery time 100–500 ms, power setting 0–99 levels, nickel strip thickness max. 0.15 mm, integrated 0–199VDC voltmeter for testing cells and batteries, activation 20 ms after applying the tips, AT mode

Show full description
Last piece
Expected shipping: 25.09.2026
3.890,00 Kč 3.214,88 Kč excl. VAT
GLITTER  |  SKU: 06695750  |  Barcode: 8596425207664
Log in for VAT-free pricing

Product description

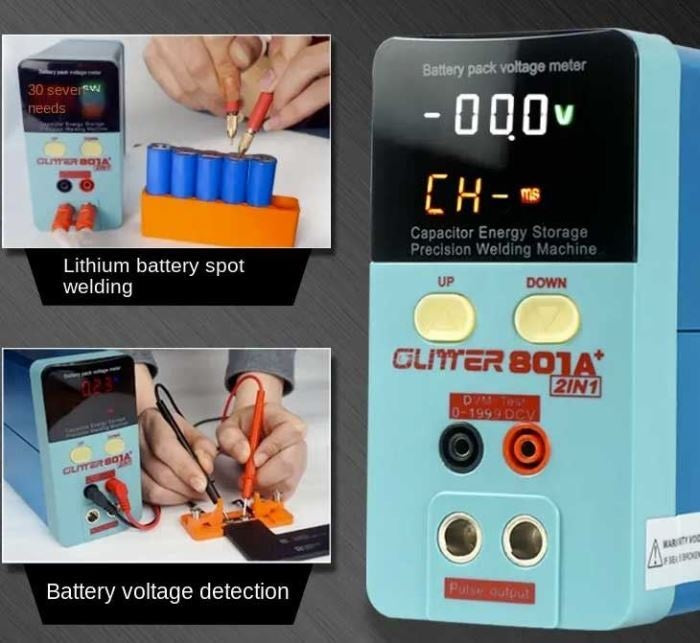

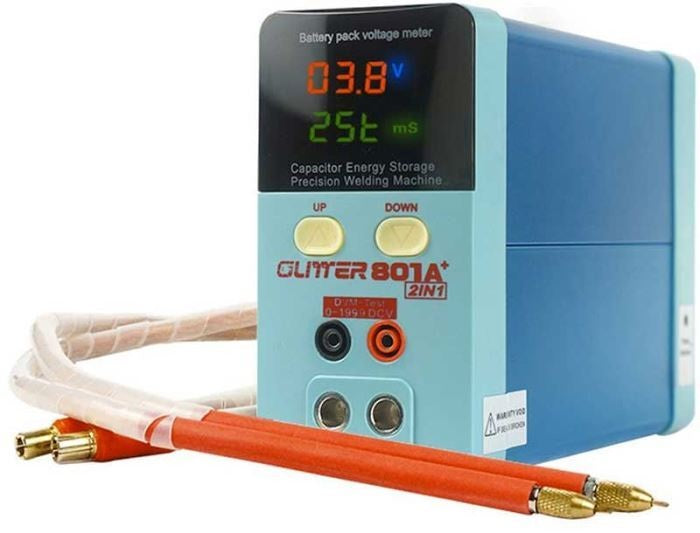

GLITTER 801A+ is a capacitor spot welder for spot welding batteries into battery packs using nickel plates. Compared to classic transformer welders, it offers lower weight and dimensions and higher pulse energy. The welder also allows welding nickel strips to an aluminum substrate. The welder is activated 20ms after the tips are placed on the plates.

Technical parameters:

- Power supply: 15V/1.3A, 230VAC adapter included
- First charging time: 20–30min
- Output welding voltage: 5.0–5.8V
- Output welding current: 500–2000A
- Max. welding power: 11.6kW
- Max. welding energy: 58J
- Pulse time: 0.05–5ms
- Welding power setting range: 0–99T
- Welding mode: AT
- Regeneration time: 100–500ms
- Voltmeter 0–199VDC for testing cells and batteries
- Nickel strip thickness: max.0.15mm
- Size: 125×67×180mm
- Weight: 2.1kg

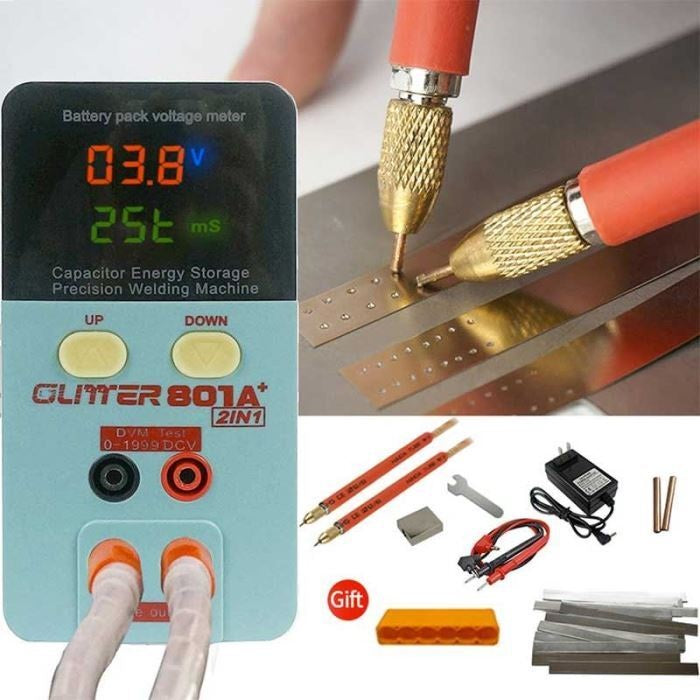

Package contents:

- GLITTER 801A+ welder
- welding tips
- 2× spare tips
- tip removal key
- 50× nickel plates 0.1×4×100mm
- 50× nickel plates 0.15×8×100mm
- welding base
- holder for 6 18650 cells
- test leads
