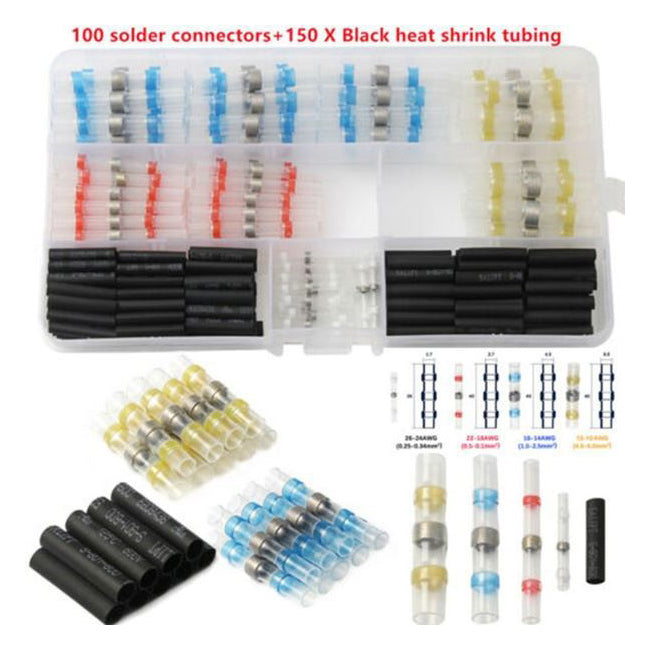

Soldering cable connector with tin and tube, set of 250 pcs
Solder cable connectors with solder and heat-shrink sleeve - set of 250 pcs, low-temperature SnBi solder, heat-shrink tubing, shrink temperature 85°C, soldering temperature 135–160°C, contents: 40× white (AWG 26–24, 0.25–0.34 mm2), 100× red (AWG 22–18, 0.5–1.0 mm2), 90× blue (AWG 16–14, 1.5–2.5 mm2), 20× yellow (AWG 12–10, 4–6 mm2), suitable for automotive and industrial wiring
Will be restocked
Expected shipping:
28.09.2026
at our place
Regular price
265,00 Kč
219,01 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
03060098
Product description
250 pcs of cable connectors with low-temperature SnBi solder and shrink tubing. Suitable for connecting automotive and other wiring.
Set Contents:
40× white connector: AWG 26–24 for cables 0.25–0.34mm2
100× red connector: AWG 22–18 for cables 0.5–1.0mm2
90× blue connector: AWG 16–14 for cables 1.5–2.5mm2
20x yellow connector: AWG 12-10 for cables 4-6 mm2

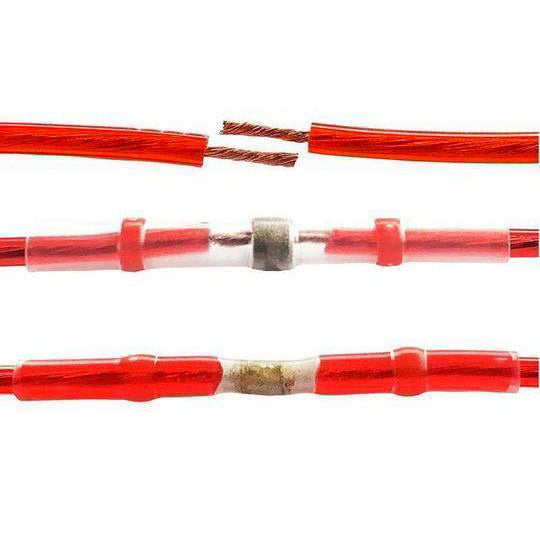

Instructions for use:
Fold the cleaned and stripped wires over each other and pull through the connector. Heat the coupling so that it shrinks and fixes the cables (necessary temperature 85°C). Then heat the metal ring locally until it melts and pours into the cable fibers. (required temperature 135°-160°C)
Set Contents:
40× white connector: AWG 26–24 for cables 0.25–0.34mm2
100× red connector: AWG 22–18 for cables 0.5–1.0mm2
90× blue connector: AWG 16–14 for cables 1.5–2.5mm2
20x yellow connector: AWG 12-10 for cables 4-6 mm2
Instructions for use:
Fold the cleaned and stripped wires over each other and pull through the connector. Heat the coupling so that it shrinks and fixes the cables (necessary temperature 85°C). Then heat the metal ring locally until it melts and pours into the cable fibers. (required temperature 135°-160°C)
