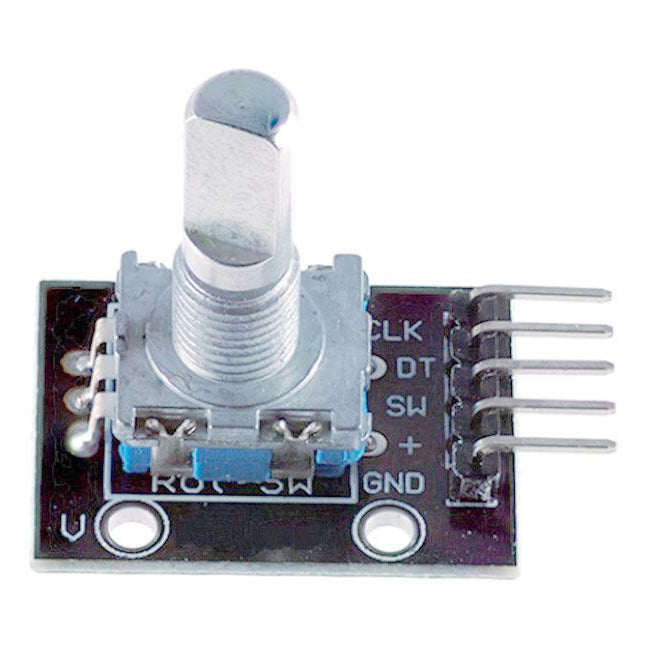

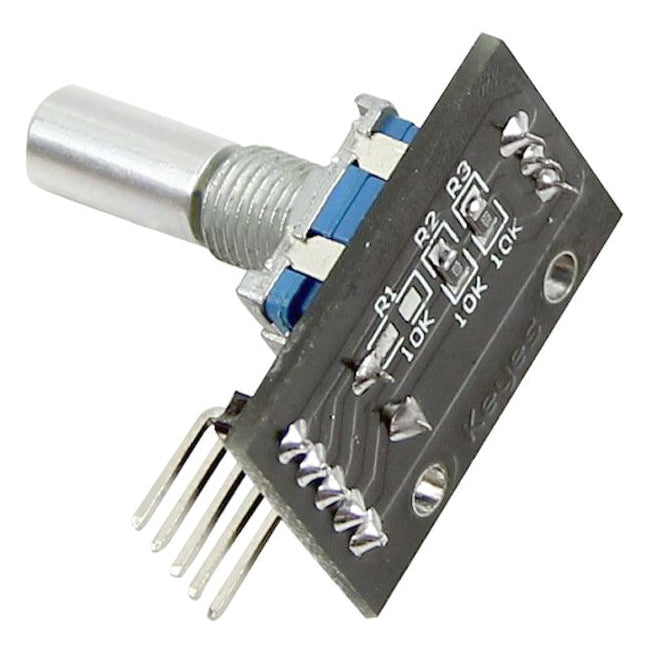

Rotary encoder with button KX-040 - for Arduino
Rotary encoder with button - type KX-040, power supply 5V, stopless rotation with an unlimited number of turns, 20 pulses per revolution, CLK pins, DT, SW, VCC, GND, axial button when pressing the axis, axle diameter 6 mm, axis length 20 mm, thread length 6 mm, service life 30 000 cycles, compatible with Arduino, requires professional installation
In stock 3 pcs
Expected shipping:
09.10.2026
Regular price
29,00 Kč
23,97 Kč
excl. VAT
Unit price
/
Unavailable
HADEX | SKU:
09830084
Product description
Non-stop potentiometer with pushbutton and two phase outputs for determining the direction of rotation.
Technical parameters:
- power supply: 5V
- speed: unlimited
- number of pulses per revolution: 20
- pins: CLK, DT, SW, VCC, GND
- button (push in the direction of the axis)
- service life: 30,000 cycles
- axis diameter: 6 mm
- axis length: 20 mm
- thread length: 6 mm
The product is not a stand-alone unit, it requires professional installation.
Technical parameters:
- power supply: 5V
- speed: unlimited
- number of pulses per revolution: 20
- pins: CLK, DT, SW, VCC, GND
- button (push in the direction of the axis)
- service life: 30,000 cycles
- axis diameter: 6 mm
- axis length: 20 mm
- thread length: 6 mm
The product is not a stand-alone unit, it requires professional installation.
