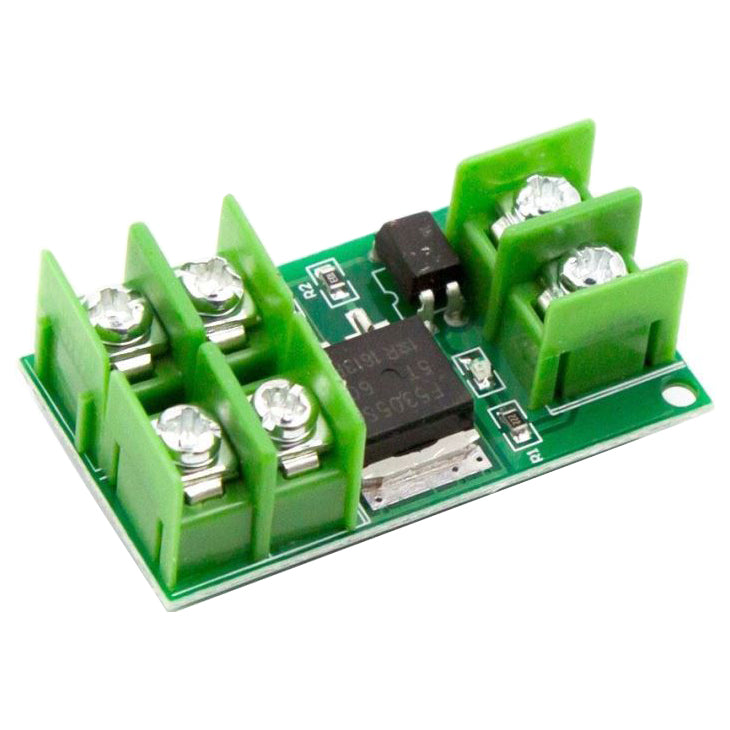

PWM MOSFET power switch, module with IRF5305 S
MOSFET PWM power switch - IRF5305 chip, operating voltage 5–36V DC, control voltage 3–20V, control frequency 0–20kHz, output current 5A, with active cooling up to 20A, operating temperature -40 to +60°C, dimensions 46 × 25 × 18 mm, suitable for motor control, LED lighting and other DC loads, requires professional installation
In stock 4 pcs
Expected shipping:
12.10.2026
Regular price
29,00 Kč
23,97 Kč
excl. VAT
Unit price
/
Unavailable
HADEX | SKU:
09830074
Product description
The module can be used as a power switch or as a power stage to PWM kegulators. Many devices such as engines, lights, etc. can be controlled in this way.

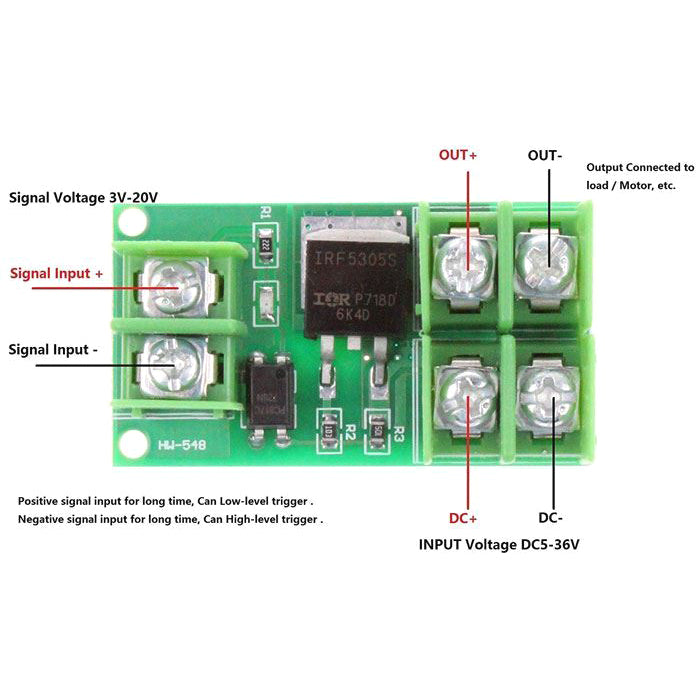

Technical parameters:
- operating voltage: 5-36 V DC
- control voltage: 3-20 V
- control frequency: 0-20 kHz
- output current: 5 A, with cooling up to 20 A
- Size: 46 × 25 ×18 mm
The product is not a stand-alone unit, it requires professional installation.
Technical parameters:
- operating voltage: 5-36 V DC
- control voltage: 3-20 V
- control frequency: 0-20 kHz
- output current: 5 A, with cooling up to 20 A
- Size: 46 × 25 ×18 mm
The product is not a stand-alone unit, it requires professional installation.
