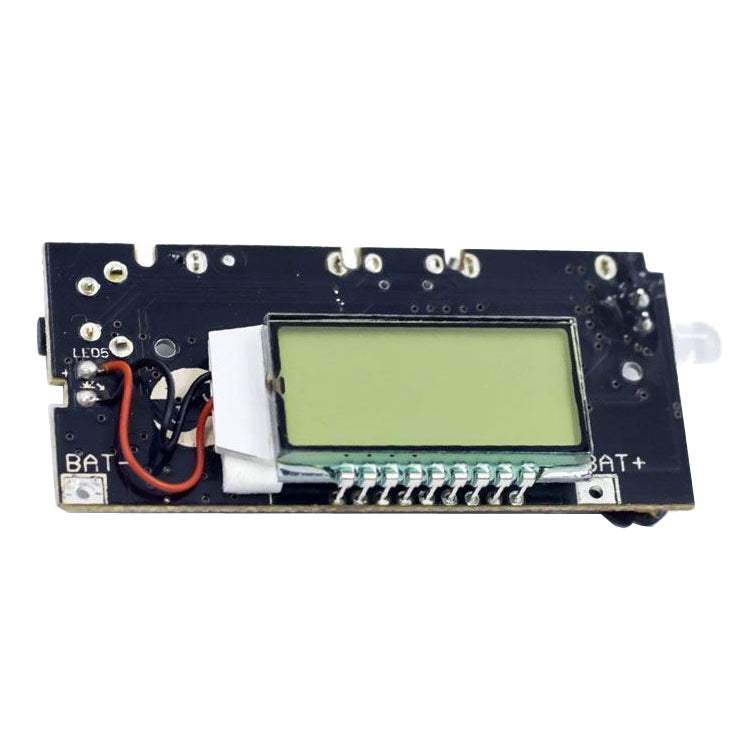

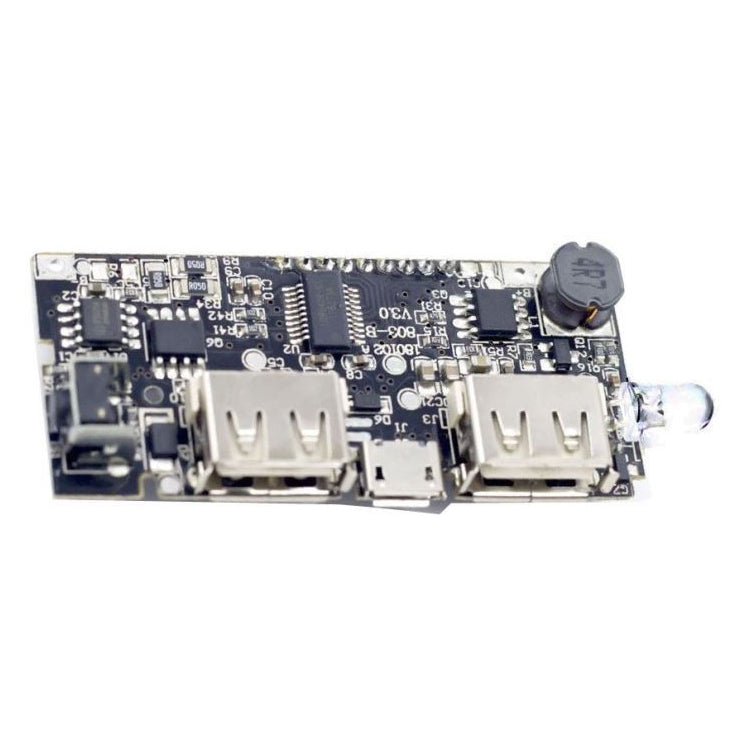

Power supply module, 5V step-up converter + Li-Ion charger with display
Step-up converter with Li-Ion/LiPol charger and display - 5V/1A input via USB Micro, 5V output with 2× USB-A ports (1A + 2.1A), charging voltage 4.2V, discharge protection below 2.9V, LED status indication (flashing = charging, light = discharging), display with charge status and input/output information, dimensions 22 × 18 × 12 mm, weight 2 g, designed for power banks, requires professional installation
In stock 6 pcs
Expected shipping:
12.10.2026
Regular price
75,00 Kč
61,98 Kč
excl. VAT
Unit price
/
Unavailable
HADEX | SKU:
09830164
Product description

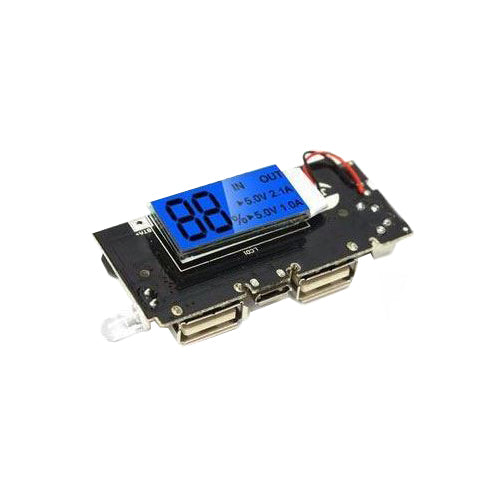

Inverter + Li-Ion or LiPol charger with protection circuit. Universal module serving as a power source and charger, eg for power banks. Display with data on charge status and connected inputs or outputs
Technical parameters:

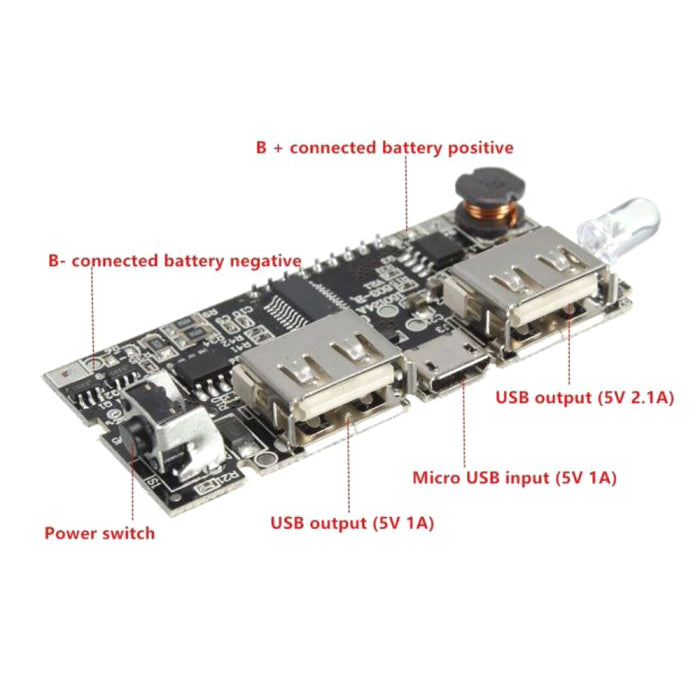

- input voltage 5V / 1A (micro USB)
- output voltage 5V / 1A + 2.1A (2 × USB „A“)
- charging batteries with a voltage of 4.2V
- discharge protection> 2.9V
- operation indication LED flashing = charging, light = discharging
- dimensions 22 × 18 × 12mm / 2g
- for correct function it is necessary to have a battery connected to the bat +/- terminals
Notice:
This product is not a final product, electrical knowledge is required for its assembly.
The product is not a stand-alone unit, it requires professional installation.
Technical parameters:
- input voltage 5V / 1A (micro USB)
- output voltage 5V / 1A + 2.1A (2 × USB „A“)
- charging batteries with a voltage of 4.2V
- discharge protection> 2.9V
- operation indication LED flashing = charging, light = discharging
- dimensions 22 × 18 × 12mm / 2g
- for correct function it is necessary to have a battery connected to the bat +/- terminals
Notice:
This product is not a final product, electrical knowledge is required for its assembly.
The product is not a stand-alone unit, it requires professional installation.
