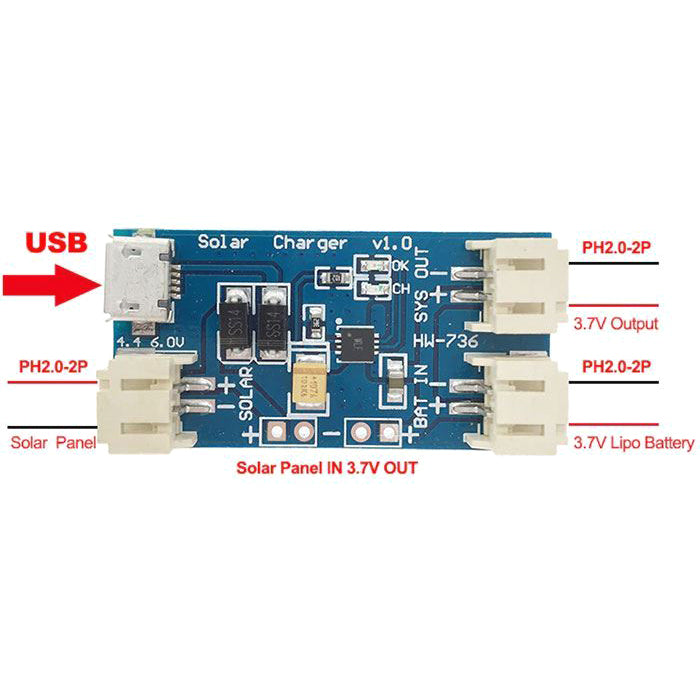

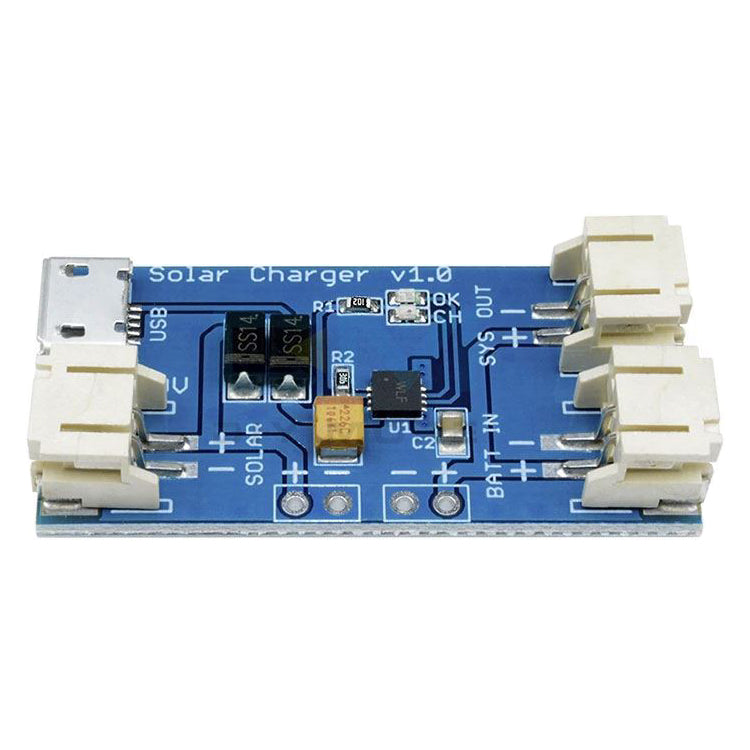

Li-Pol cell charger with protection, module HW-736 / solar charger /

Li-Pol solar charging module - CN3065 chip, supply voltage 4.4–6V, charging current 500mA, JST 2p connectors, charging from USB or solar cell, short-circuit protection, LED indication (red - charging, green - ready), dimensions 40 × 21 × 8 mm, weight 5 g, designed for 3.7V Li-Pol cells of any capacity, requires professional installation

Show full description
In stock 3 pcs
Expected shipping: 24.09.2026
35,00 Kč 28,93 Kč excl. VAT
HADEX  |  SKU: 09830153  |  Barcode: 8596425147434
Log in for VAT-free pricing

Product description

Practical module for charging and operation of Li-Pol cell 3.7V with any capacity. It can be charged from a USB or solar cell and at the same time current can be taken from the power cell.


Technical parameters:

- supply voltage: 4.4–6V
- charging current: 500mA
- chip used: CN3065
- connectors: JST 2p
- short circuit protection
- LED indicator: red-charging, green-ready
- dimensions: 40 × 21 × 8mm / 5g

The product is not a stand-alone unit, it requires professional installation.

Product parameters
