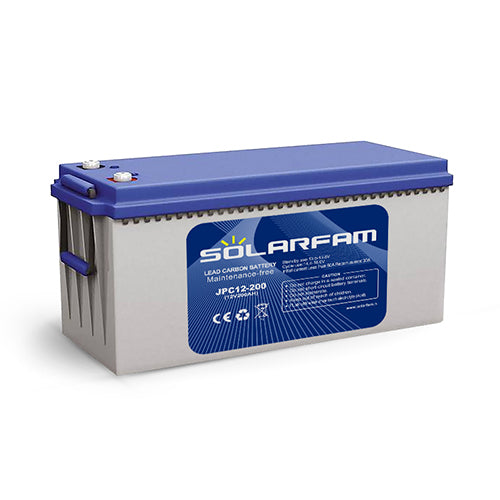

Lead carbon battery 200 Ah SOLARFAM
Lead-carbon battery - voltage 12V, capacity 200Ah, Lead-Carbon technology with absorbed electrolyte (AGM), maximum discharge current 2200A (5 s), maximum charging current 60A, M8 bolt terminals, lower sulphation in partial state of charge, higher charging efficiency and lower negative plate corrosion compared to standard AGM/GEL batteries, longer cycle life, suitable for solar systems and backup power
In stock 9 pcs
Expected shipping:
21.09.2026
Regular price
12.999,00 Kč
10.742,98 Kč
excl. VAT
Unit price
/
Unavailable
SOLARFAM | SKU:
04250590
Product description
Lead-acid carbon batteries are a new kind of lead-acid batteries. In this case, with a bonded, acidic electrolyte, the same as a known AGM battery. Lead-acid carbon batteries have better partial discharge performance and a much longer cyclical life than conventional AGM/GEL lead-acid batteries.
Advantages of carbon battery lead:
Lower sulfatation at partial discharge/charge
Lower charging voltage and therefore higher efficiency and less corrosion of the negative plate
The consequence is the most relevant parameter and thus the higher battery life
Technical specifications:
- voltage: 12 V
- capacity: 200 Ah
- maximum discharge current: 2200 A (5 sec)
- maximum charging current: 60 A
- dimensions: 223 x 522 x 240 mm
- connection(s): bolt M8
- weight: approx. 61,5 kg
- internal resistance (fully charged battery 25°C): 2,8 m?
- self-discharging process 3%, 25°C
- working temperature: -20 °C to +50 °C
Detailed technical information can be found in the download documents below
