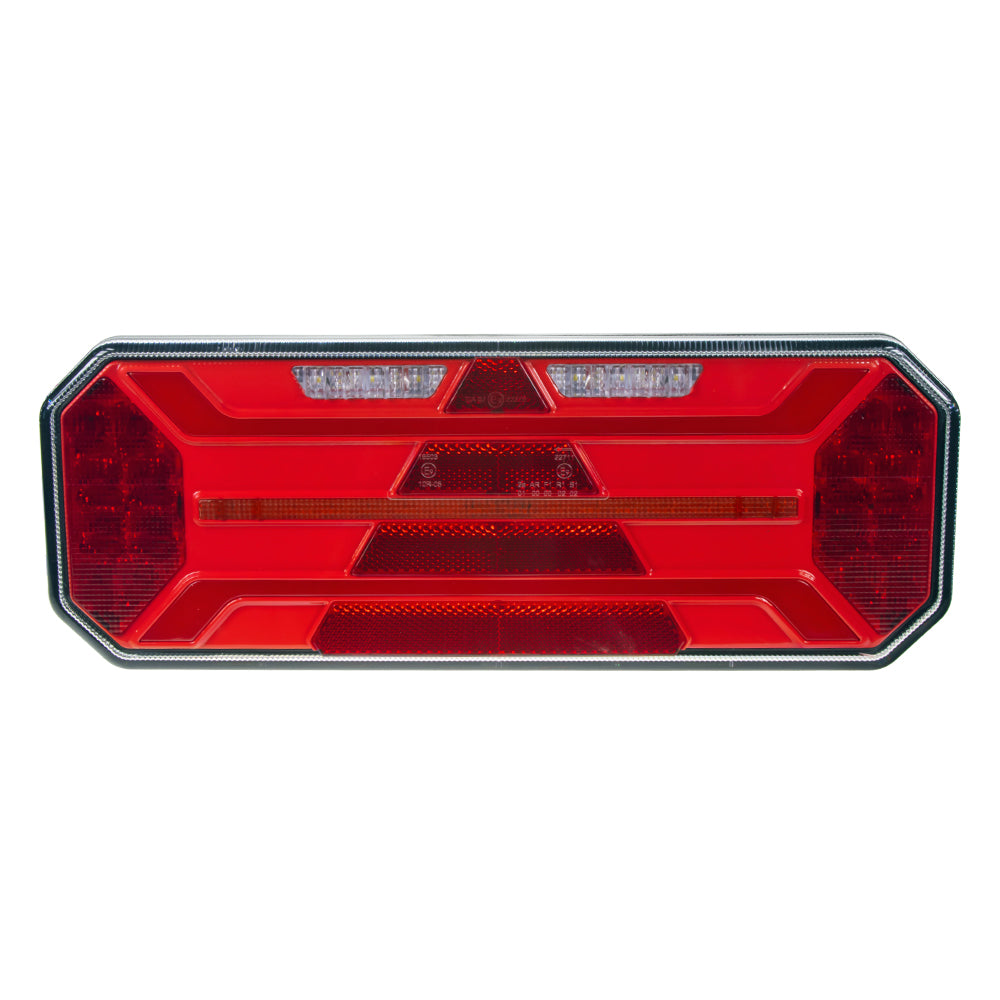

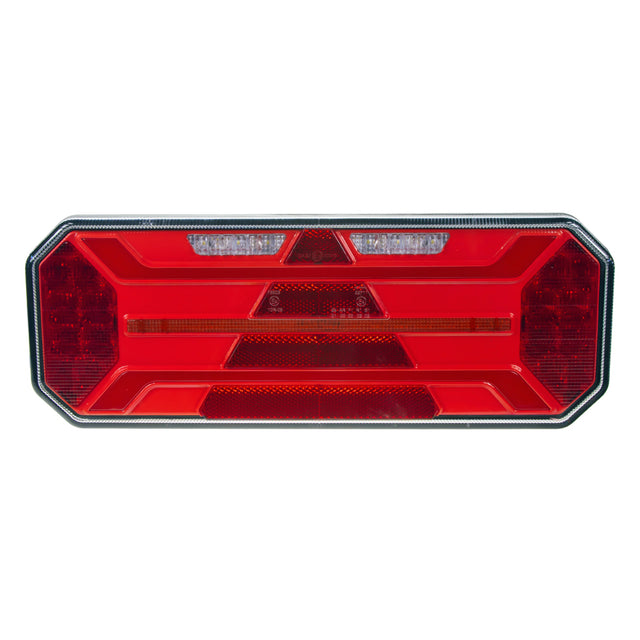

Dynamic turn signal LED CARCLEVER rear left with triangle TRL34L
Combined rear LED lamp left - 12/24V power supply, dynamic indicator light 16× LED, brake 8× LED, position 36× LED, reversing 6× LED, fog 8× LED, reflective triangle, dimensions 131 × 350 × 35 mm, fixing screw spacing 150 mm, IP67 rating, operating temperature -40 to +65°C, ECE R3 homologation, R6, R7, R10, R23, R38, connection of 6 wires: ground, position, brake, direction, mist, reversing
In stock 2 pcs
Expected shipping:
22.09.2026
Regular price
985,00 Kč
814,05 Kč
excl. VAT
Unit price
/
Unavailable
CARCLEVER | SKU:
04120137
Product description
Combined LED lamp left rear with dynamic turn signals 12/24 V
Technical parameters:
- power supply: 12/24 V
- dynamic direction indicators
- reflective element - triangle
- directional (16x LED), brake (8x LED), position (36x LED), reversing (6x LED), fog (8x LED)
- ECE homologation R3, R6, R7, R10, R23, R38
- dimensions: height 131 mm, width 350 mm, depth 35 mm, pitch of fixing screws 150 mm
- waterproof IP67
- working temperature -40 ° C - +65 ° C
Wire connections
- white wire - skeleton
- black wire - position light
- red wire - brake light
- yellow wire - turn signal
- blue wire - fog light
- pink wire - reversing light
Technical parameters:
- power supply: 12/24 V
- dynamic direction indicators
- reflective element - triangle
- directional (16x LED), brake (8x LED), position (36x LED), reversing (6x LED), fog (8x LED)
- ECE homologation R3, R6, R7, R10, R23, R38
- dimensions: height 131 mm, width 350 mm, depth 35 mm, pitch of fixing screws 150 mm
- waterproof IP67
- working temperature -40 ° C - +65 ° C
Wire connections
- white wire - skeleton
- black wire - position light
- red wire - brake light
- yellow wire - turn signal
- blue wire - fog light
- pink wire - reversing light
