DC circuit breaker 3A two-pole ETIMAT
10% off
Dvoupólový DC jistič - jmenovitý proud 3A, charakteristika Z, napětí 440V DC, zkratová odolnost 10kA, jmenovité impulsní výdržné napětí 6kV, průřez připojitelného vodiče 1–25 mm2, jmenovitá frekvence 1–25Hz, funkce MCB, norma IEC 60898-2, důležité dodržení polarity při instalaci
In stock 2 pcs
Expected shipping:
18.09.2026
Sale price
598,00 Kč
Regular price
665,00 Kč
494,21 Kč
excl. VAT
Unit price
/
Unavailable
ETI | SKU:
04291281
Product description

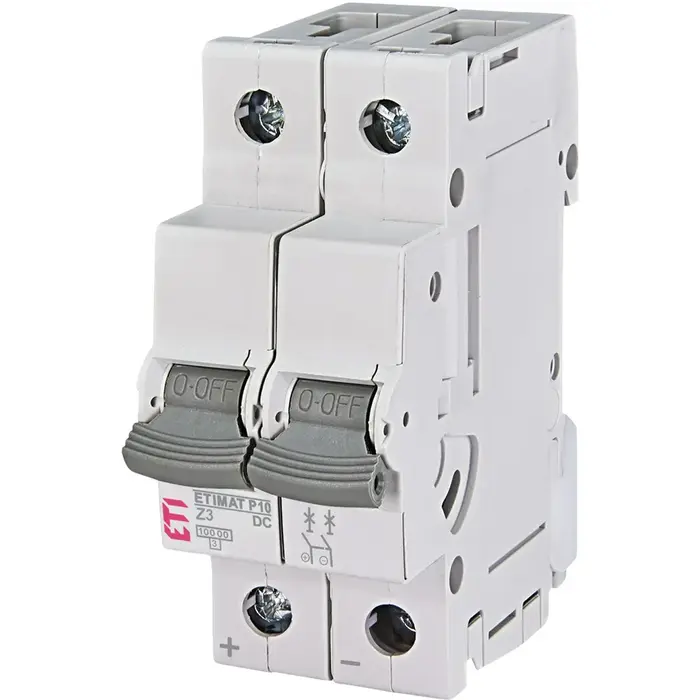

DC 2-pole circuit breaker with rated current 3A, short circuit resistance 10kA.
Important note - when installing, it is important to always observe the polarity of the device.
Technical parameters:
Class name: circuit breaker
Rated current (A): 3
Breaking characteristic: Z
Number of poles: 2
Short circuit resistance (kA): 10
Voltage type: DC
Un (V): 440
Rated frequency (Hz): 1...25
Rated impulse withstand voltage (kV): 6
Input terminals (mm2): 1...25
Standards: 60898-2
Function: MCB
Important note - when installing, it is important to always observe the polarity of the device.
Technical parameters:
Class name: circuit breaker
Rated current (A): 3
Breaking characteristic: Z
Number of poles: 2
Short circuit resistance (kA): 10
Voltage type: DC
Un (V): 440
Rated frequency (Hz): 1...25
Rated impulse withstand voltage (kV): 6
Input terminals (mm2): 1...25
Standards: 60898-2
Function: MCB
