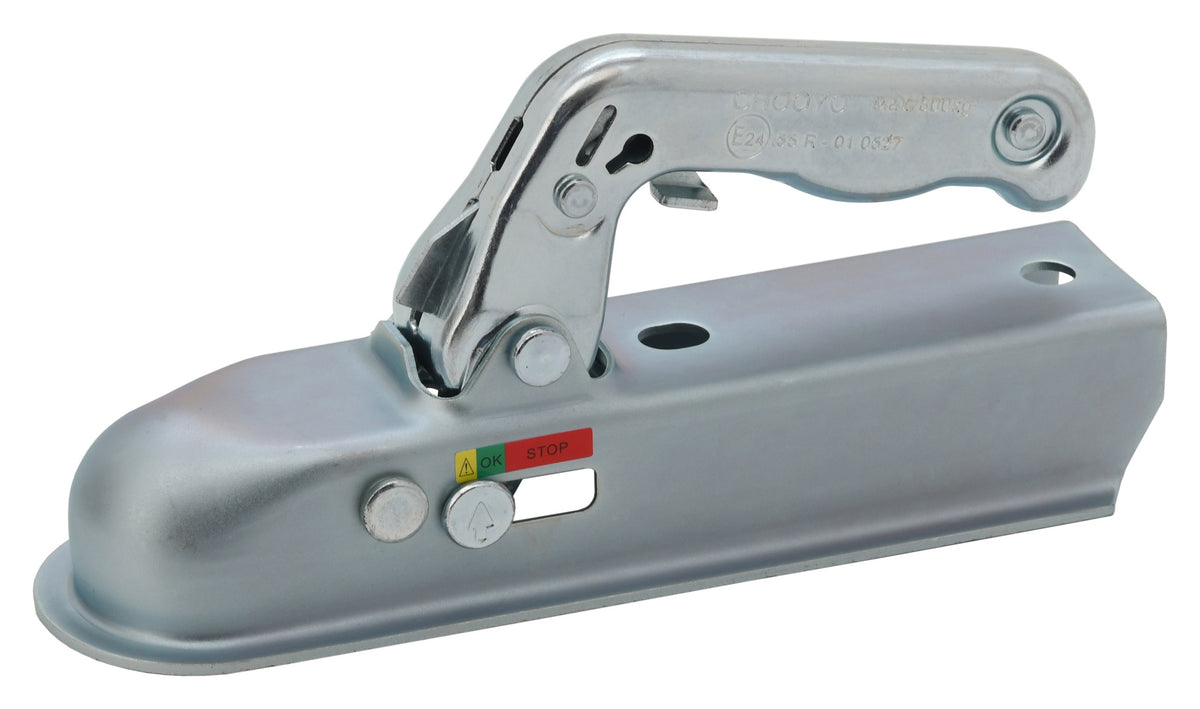

COMPASS 07461 tow bar with square drawbar – unboxed – torn packaging

Square tow bar coupling for an unbraked trailer with a central axle, with a maximum weight of 800 kg, and a tow bar with a maximum load of 75 kg.

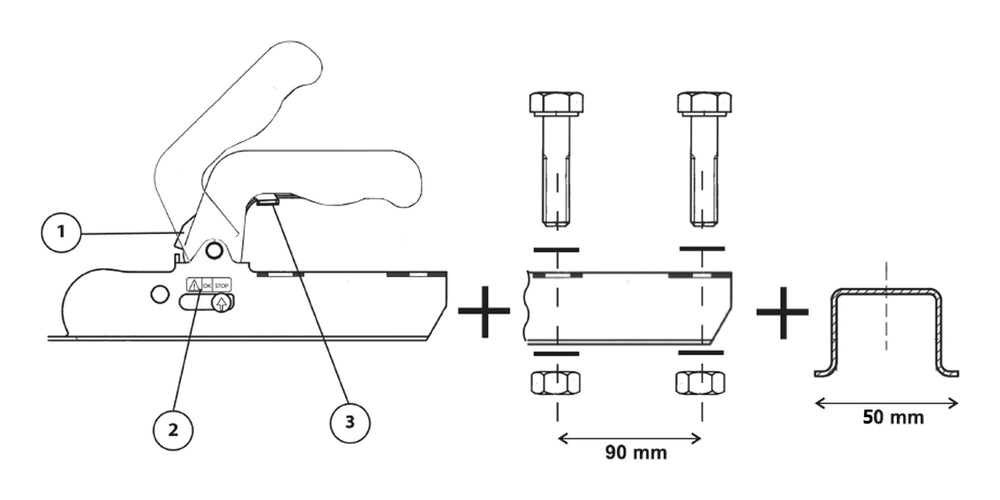

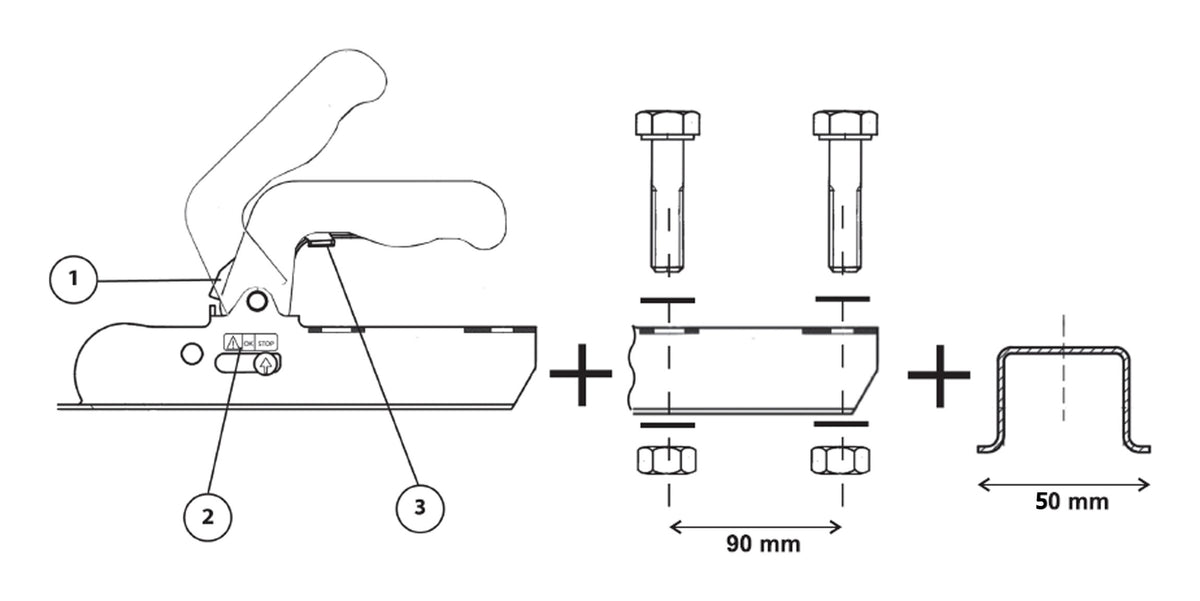

Depending on the type, the tow bar coupling is designed for a square drawbar (50 x 50 mm) on the trailer.

The all-metal construction of the coupling is fitted with a mechanism that ensures a secure grip on a standard 50 mm diameter tow bar ball. Technical specifications: - Weight range: 800 kg
- Load capacity: 75 kg - Drawbar profile: square - Drawbar dimensions: 50 x 50 mm - Type approval: E24 55 R-01
