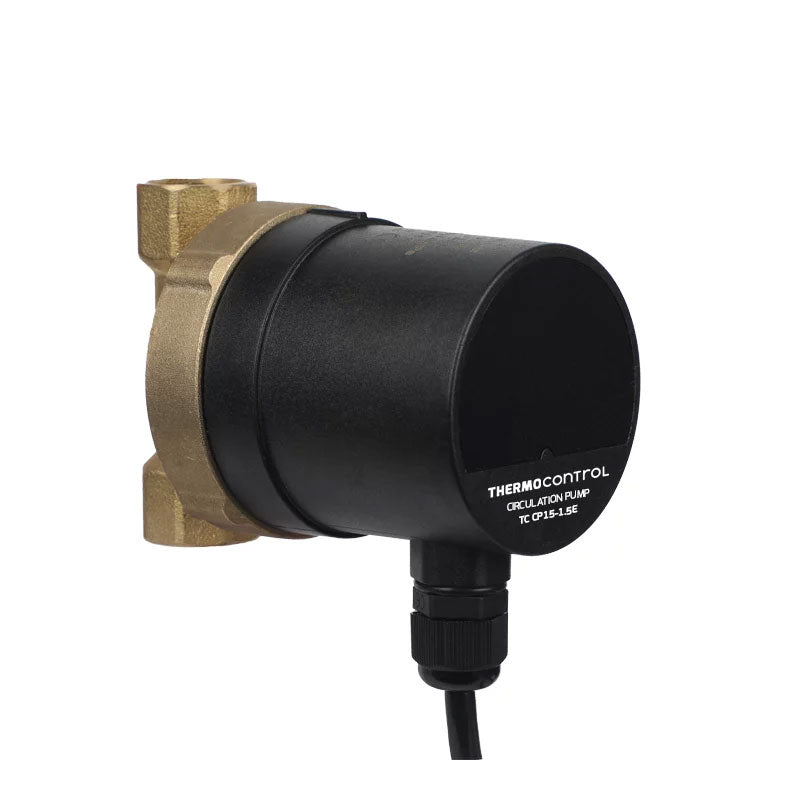

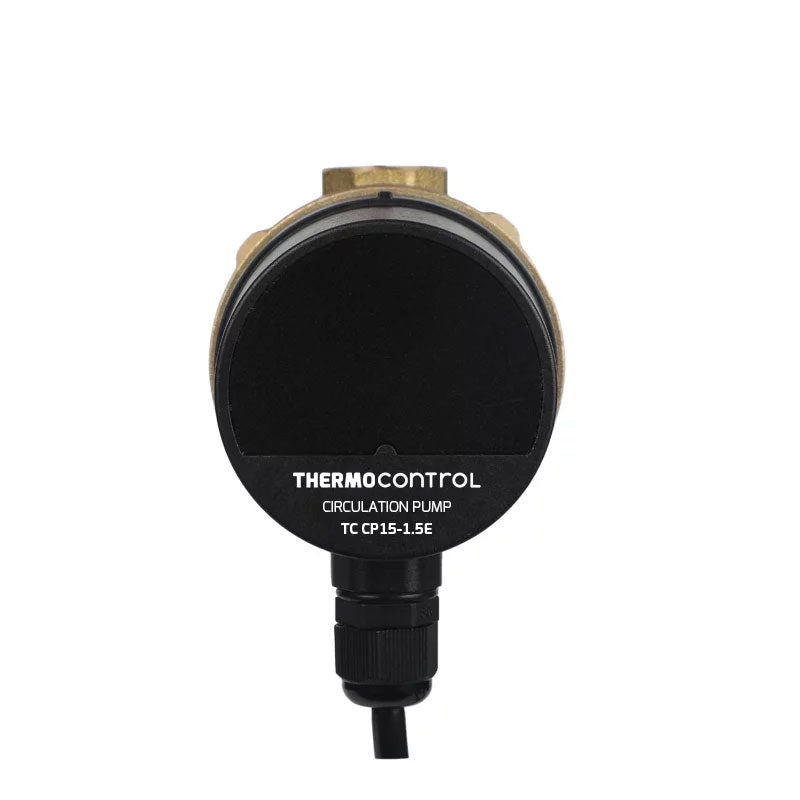

Circulating pump for TUV THERMOCONTROL TC CP15-1.5E
Circulation pump for DHW - power consumption 5W, power supply 220–240V / 50/60Hz, IP44 rating, insulation class F, noise level below 42dB, liquid temperature up to +110°C, min. inlet pressure 0.005–0.100MPa depending on the temperature mode, bearing load 1.0MPa, ambient temperature 0–40°C, max. humidity 95% RH, temperature rating TF 110, automatic control, maintenance-free construction, suitable for DHW circulation and water heaters
In stock 3 pcs
Expected shipping:
12.10.2026
Regular price
2.165,00 Kč
1.789,26 Kč
excl. VAT
Unit price
/
Unavailable
THERMOCONTROL | SKU:
06439340
Product description
The electronic pump is characterized by simple installation and low noise. The pump is maintenance-free and has automatic regulation, which is particularly suitable for DHW circulation.
Main uses:
1) Heating and DHW circulation system
2) Water heater circulation system
Technical parameters:
- Power supply: 220 – 240 V, 50/60 Hz
- Motor protection: The pump does not need external protection
- Degree of protection: IP44
- Insulation class: F
- Input: 5W
- Humidity (RH): max 95%
- Bearing load: 1.0 MPa
- Suction pressure:
- Liquid temperature: ?+75 °C, ? +90 °C, ? +110 °C
- Minimum inlet pressure: 0.005 MPa, 0.025 MPa, 0.100 MPa
- EMC standard: EN61000-3-2 and EN61000-3-3, EN55014-1 and EN55014-2
- The noise of the pump is less than 42dB (A)
- Ambient temperature: 0 to 40 °C
- Temperature degrees: TF 110
- Surface temperature: Maximum surface temperature more than +100 °C
- Liquid temperature: +2 to +110 °C
