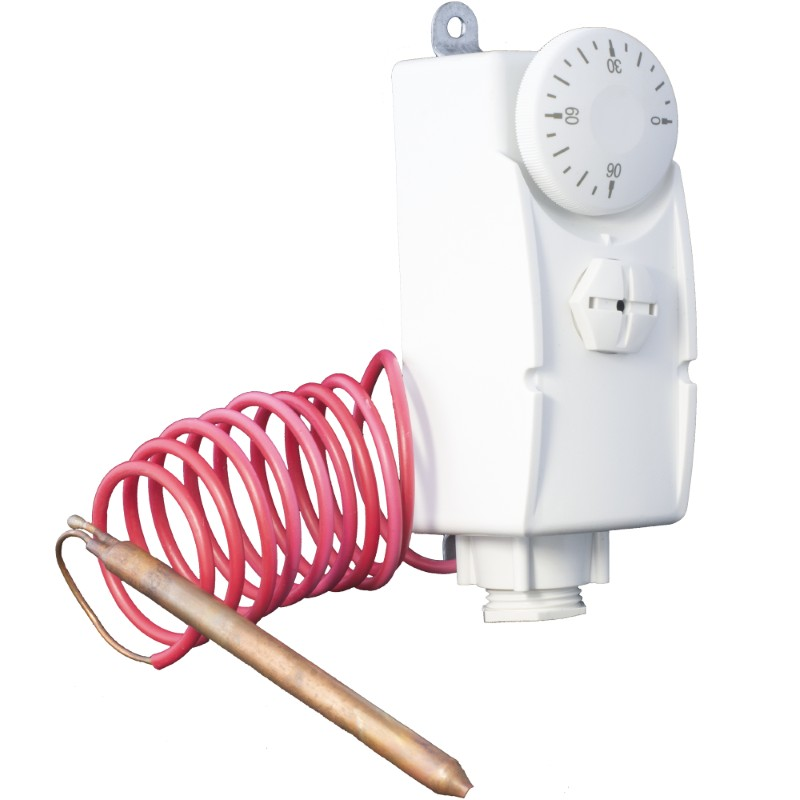

Thermostat TC AT10F-2m with capillary
Pipe-mounted thermostat with capillary - mechanical, measuring range 0 to 99°C, control range 0 to 90°C, accuracy ±3°C, maximum load 15A, volt-free output COM/NO/NC, capillary sensor length 2 m, changeover contact, simple installation on the pipe, dimensions 38 × 105 × 50 mm
In stock 8 pcs
Expected shipping:
12.10.2026
Regular price
369,00 Kč
304,96 Kč
excl. VAT
Unit price
/
Unavailable
OEM | SKU:
08840414
Product description
Mechanical thermostat with capillary
Easy installation
Switching contact
Technical parameters:
Maximum load: 15 A
Temperature measurement range: 0 °C to 99 °C
Temperature measurement accuracy: ±3 °C
Temperature control range: 0 °C to 90 °C
Output: COM / NO / NC voltage-free
Length of temperature sensor: Capillary - 2 m
Switch-on indication: NO

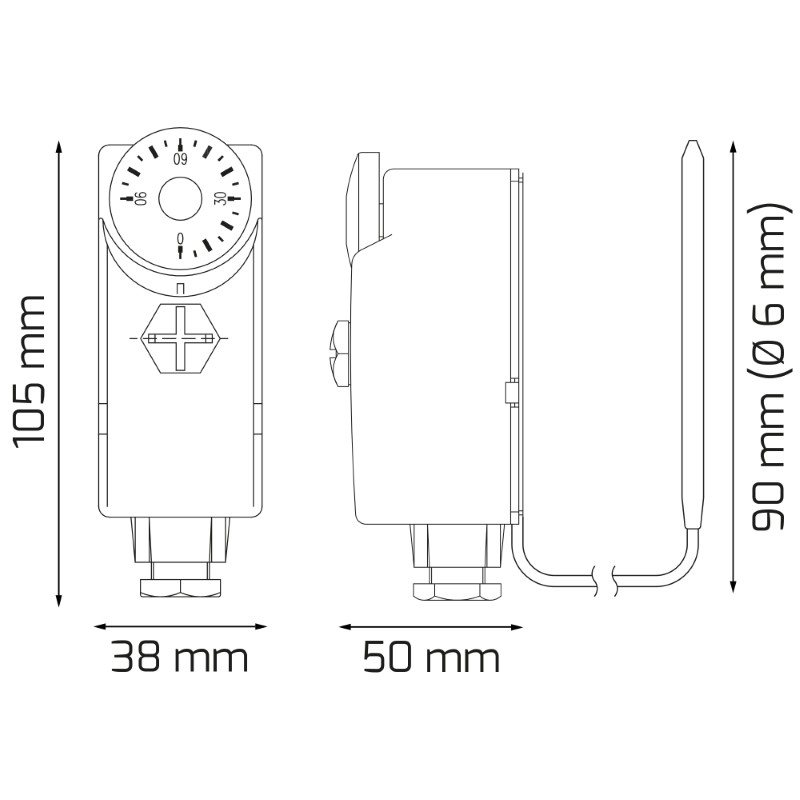

Dimensions: 38 x 105 x 50 mm
Easy installation
Switching contact
Technical parameters:
Maximum load: 15 A
Temperature measurement range: 0 °C to 99 °C
Temperature measurement accuracy: ±3 °C
Temperature control range: 0 °C to 90 °C
Output: COM / NO / NC voltage-free
Length of temperature sensor: Capillary - 2 m
Switch-on indication: NO
Dimensions: 38 x 105 x 50 mm
