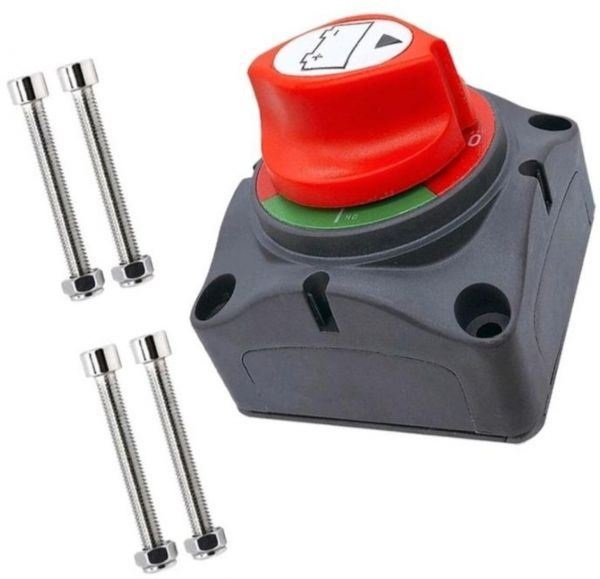

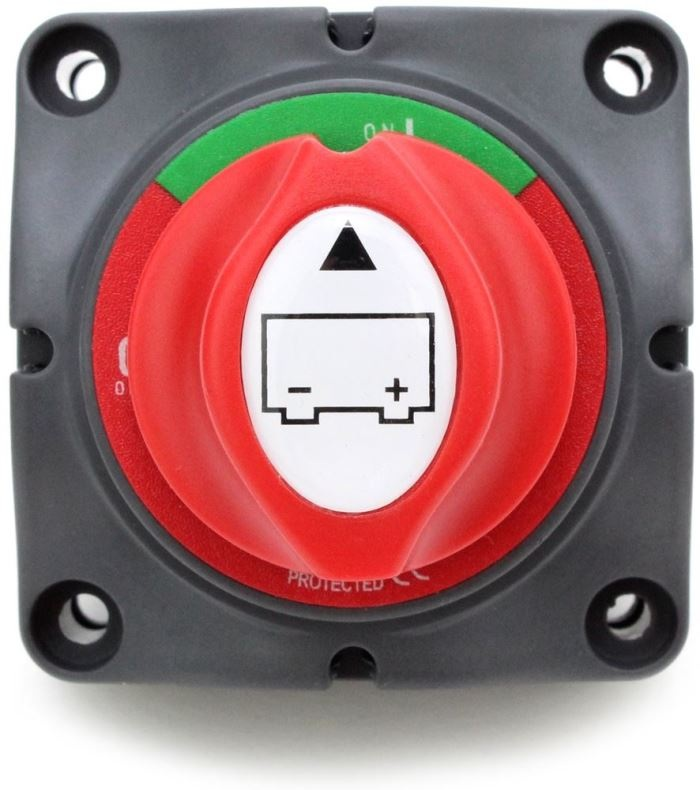

Battery disconnector 275A A701-G
Battery isolator switch - two-position (ON/OFF), voltage 12–48V DC, continuous current 275A, short-term current 500A for 10 s, terminals 2× 10 mm thread with nut, case made of durable ABS plastic, IP20 rating for indoor use only, dimensions 75 × 75 × 69 mm, intended for safe switching of DC circuits
In stock 37 pcs
Expected shipping:
09.10.2026
Regular price
390,00 Kč
322,31 Kč
excl. VAT
Unit price
/
Unavailable
HADEX | SKU:
04291243
Product description
Battery two-position disconnector in a housing made of durable ABS plastic is used for safe switching of DC circuits with a voltage of 12-48V.
Technical parameters:
- switching positions: ON / OFF
- voltage: 12 – 48V DC
- max. current 275A continuously, 500A/ 10sec

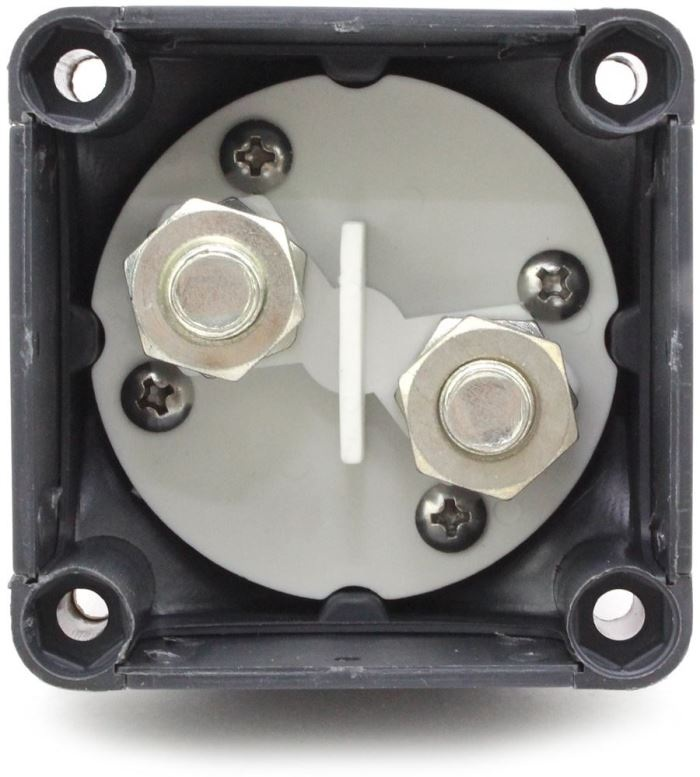

- terminals: 2x 10 mm thread with nut
- dimensions: 75 x 75 x 69 mm
- protection level: IP20 (for indoor use only)
Technical parameters:
- switching positions: ON / OFF
- voltage: 12 – 48V DC
- max. current 275A continuously, 500A/ 10sec
- terminals: 2x 10 mm thread with nut
- dimensions: 75 x 75 x 69 mm
- protection level: IP20 (for indoor use only)
