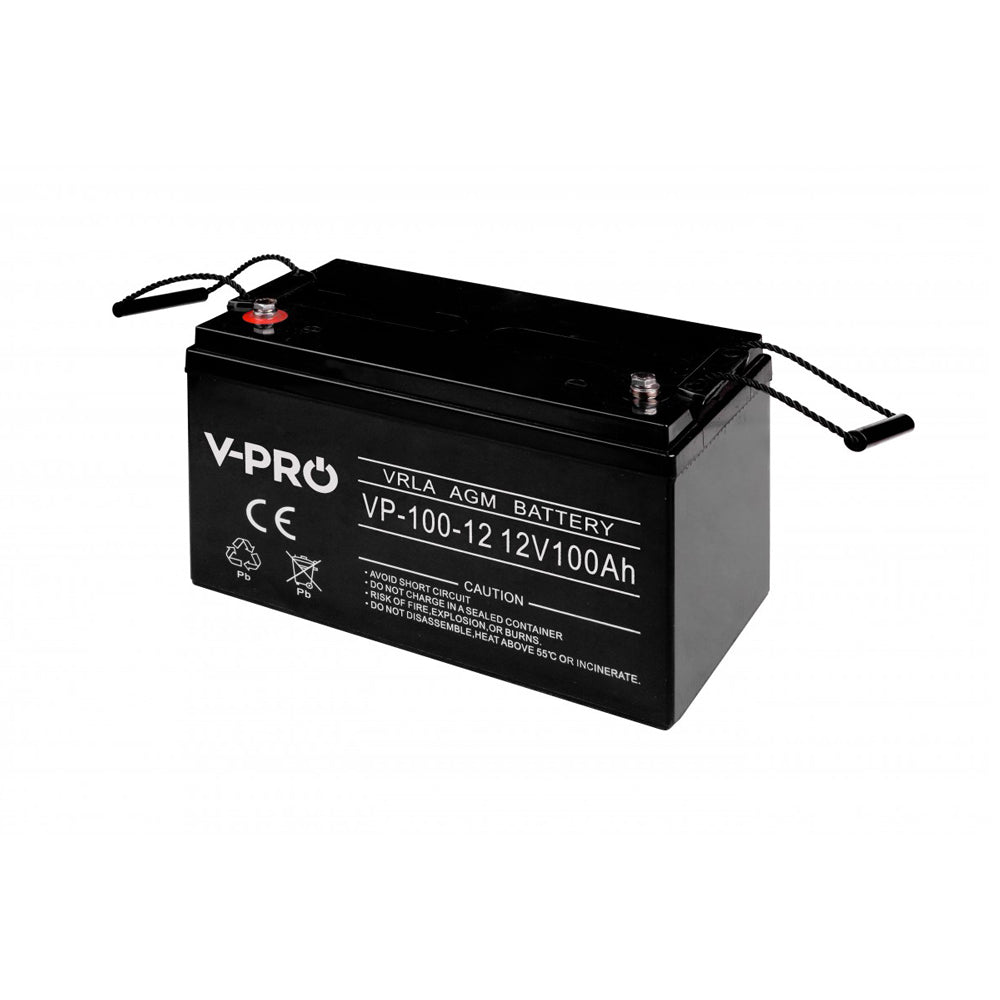

Battery AGM 12V 100Ah V-PRO
AGM battery - voltage 12V, capacity 100Ah, AGM technology with glass fibre separators, automatic sealing valve system for safe venting, design life 8–10 years at 25°C, approx. 600 working cycles at up to 50 % depth of discharge, maintenance-free, suitable for UPS, photovoltaic installations, voltage converters and automation systems, equalising charging systems
Last piece
Expected shipping:
08.10.2026
Regular price
3.599,00 Kč
2.974,38 Kč
excl. VAT
Unit price
/
Unavailable
V PRO | SKU:
04250677
Product description
ATTENTION: Due to its weight, this product is classified as oversized goods for which special transport must be arranged. Therefore, the delivery time can be extended to 3-4 days.
The battery of the VPRO series is intended, among other things, for: for powering emergency power supply systems (UPS, automation systems), photovoltaic installations or voltage converters. Works best in buffer charging systems. It can also be used in applications where the battery works cyclically. For a depth of discharge of up to 50%, it has about 600 working cycles. Design life (25°C): 8-10 years.
- Internal structure based on glass fiber separators in which the electrolyte is concentrated
- Automatic sealing system. When the pressure inside the accumulator is too high, the valves open, causing the resulting gas to be safely vented outside the case, preventing damage. This situation occurs when the battery is overcharged
- The battery case is made of ABS material, the cells are made of copper
What devices are powered by VPRO batteries?
- Emergency power systems (UPS, automation systems)
- Photovoltaic installations
- Voltage converters
- Alarm systems
- Access control systems
- Supplying cash registers
- CCTV systems
- Telecommunication systems
- Backup lighting systems
- Power supply for medical technology
- Power supply for scooters, mopeds
- Power supply for electric toys
Why use a VPRO battery?
- Does not require topping up or replacing the electrolyte
- Works in any position
- High efficiency and performance
- Long service life of 8-10 years
- High resistance to mechanical damage and high temperatures
- Safe to use (no electrolyte leakage)
Technical parameters:
- Nominal voltage: 12V
- Nominal capacity: 100Ah
- Total height: 218 mm
- Height: 213 mm
- Width: 173 mm
- Length: 331 mm
- Weights: 27.7 kg (61.06 lbs) ± 3%
- Capacity (at 25°C) 10h (10.8V): 100Ah
- Capacity (at 25°C) 5h (10.5V): 80Ah
- Capacity (at 25°C) 3h (10.8V): 71.4Ah
- Capacity (at 25°C) 1h (9.6V): 60Ah
- Internal resistance (at 25°C): 4.3 m?
- Capacity: (40°C):102%
- Capacity (25°C): 100%
- Capacity (0°C): 85%
- Capacity (-15°C): 65%
- Self-discharge (25°C) 3 months: 91% of nominal capacity
- Self-discharge (25°C) 6 months: 82% of nominal capacity
- Self-discharge (25°C) 12 months: 64% of nominal capacity
- Recommended working temperature: 25 °C ± 3 °C
- Operating temperature range - discharge: -15 °C to 50 °C
- Operating temperature range - charging: -10 °C to 50 °C
- Operating temperature range - storage: -20 °C to 50 °C
- Buffer charging voltage (25°C): 13.5VDC-13.8VDC
- Cyclic charging voltage (25°C): 14.4VDC-14.7VDC
- Maximum charging current: 30A
- Maximum discharge current: 800A
- Design life (25°C): 8-10 years
