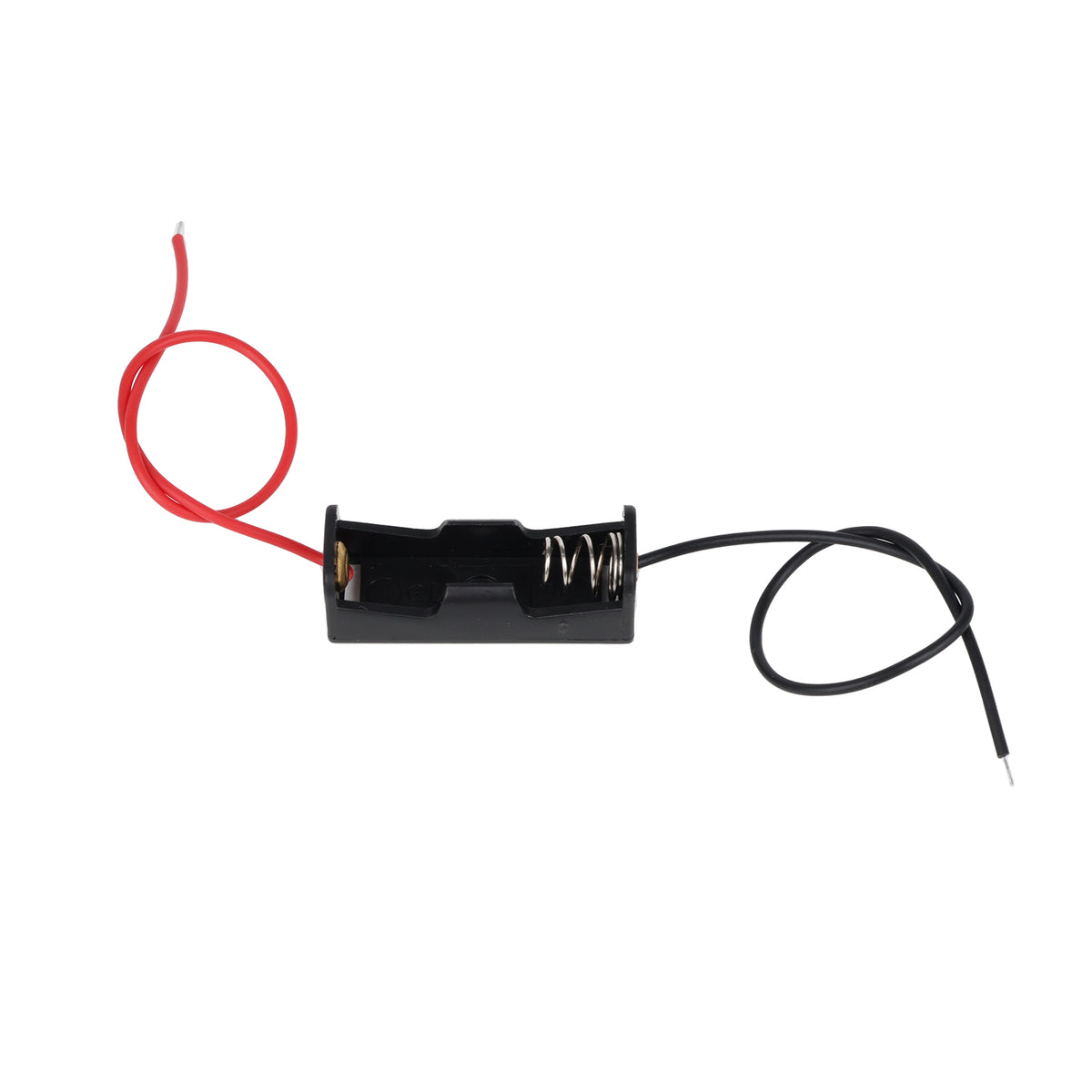

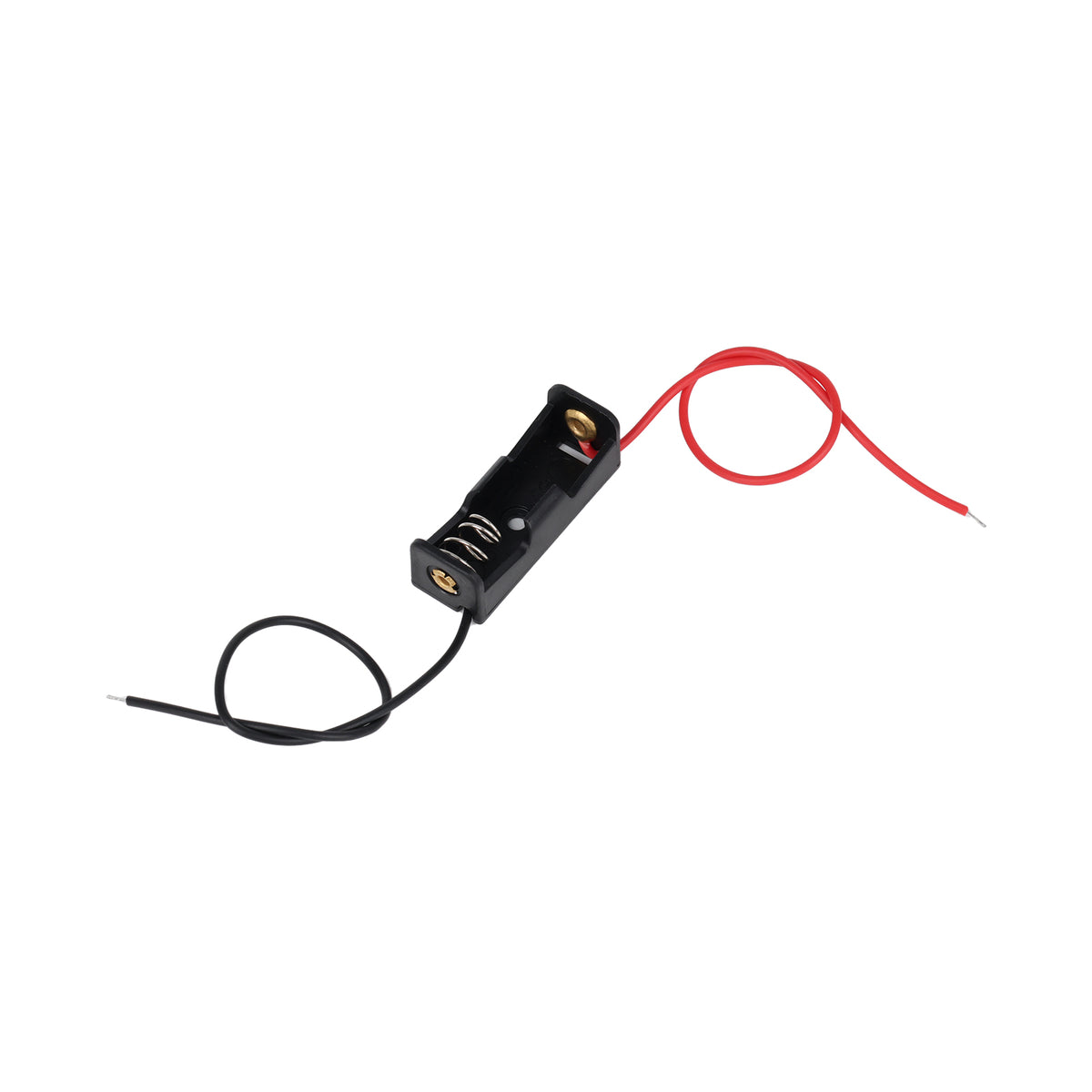

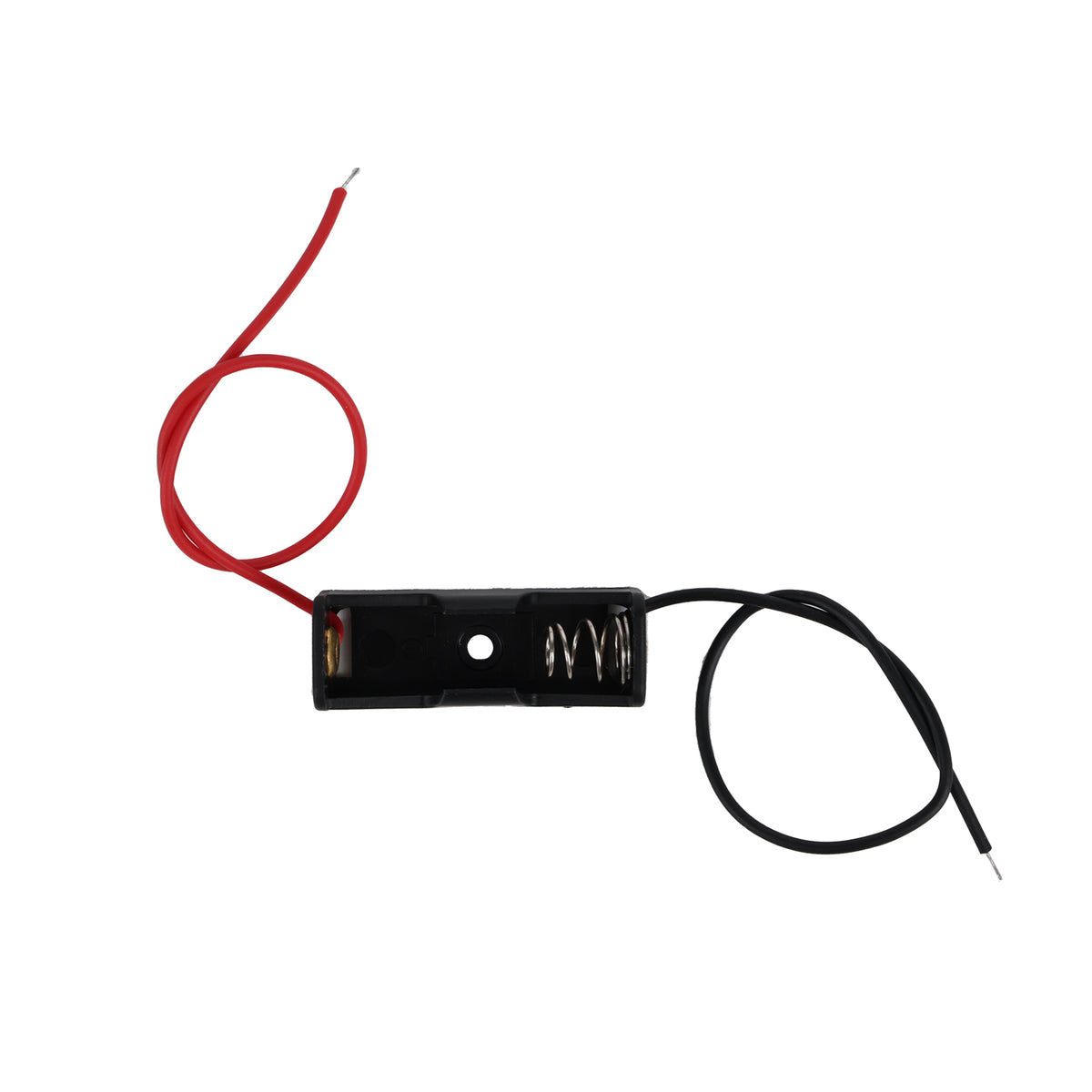

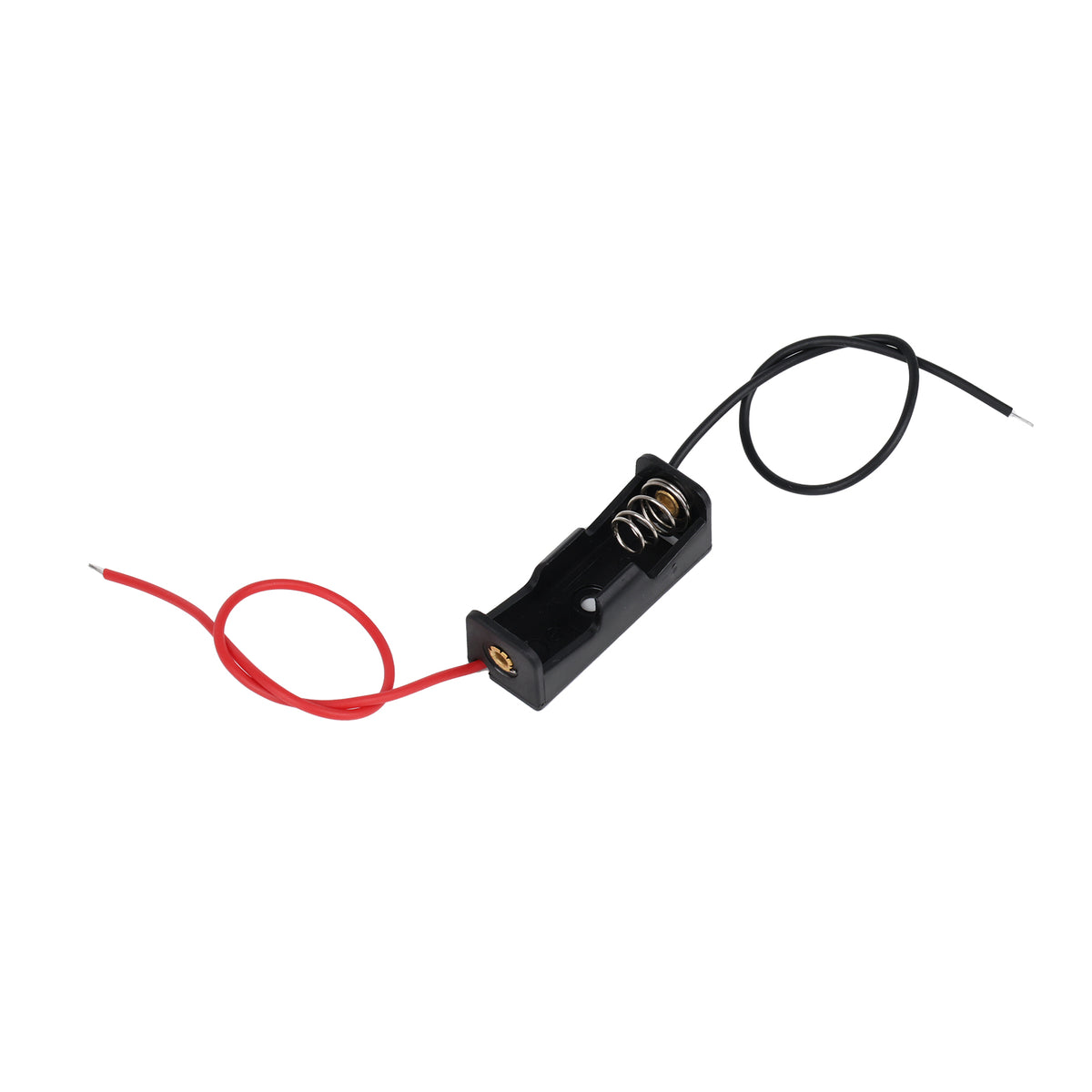

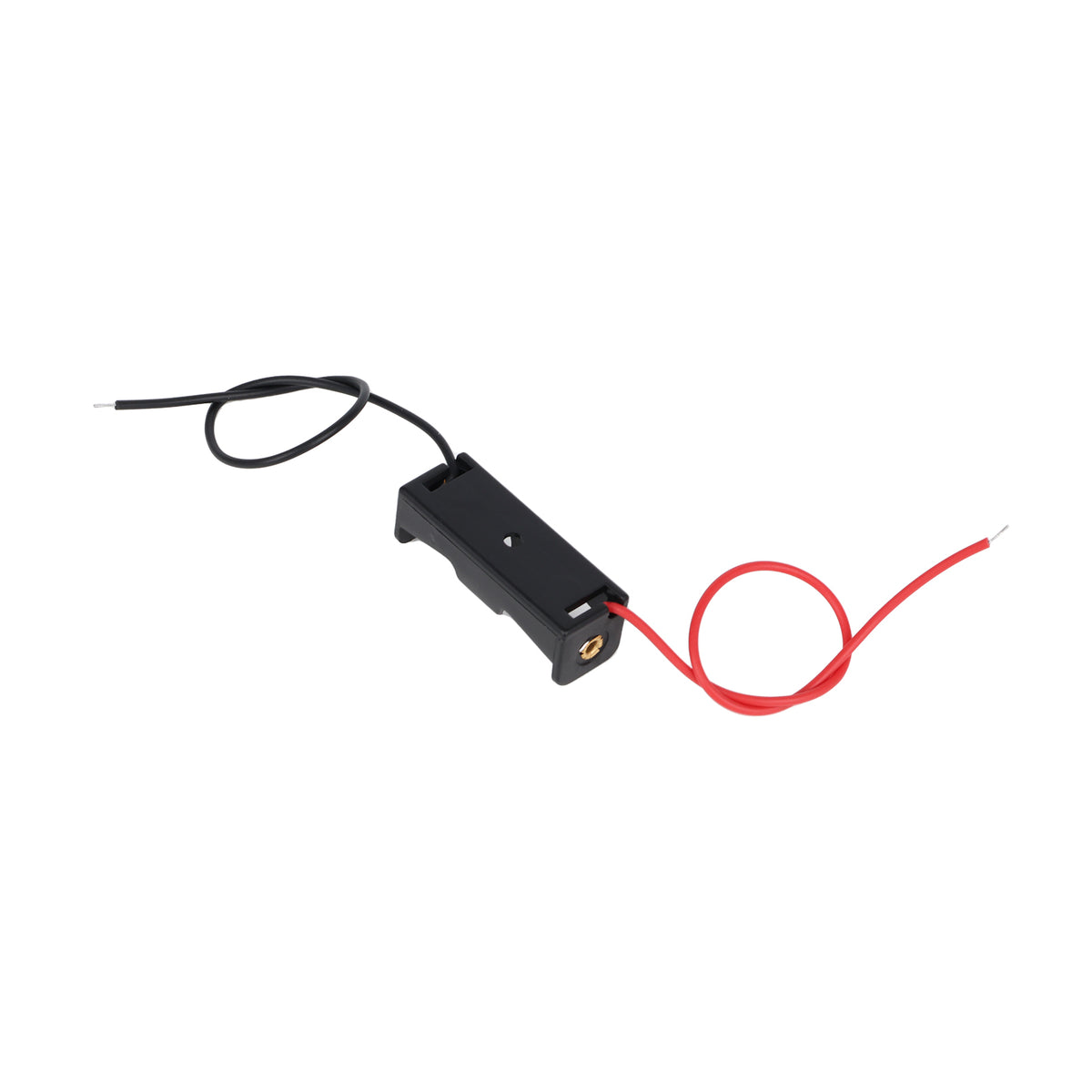

A23/23AE battery holder with leads

Do you need a reliable and neat power solution for your remote controls, wireless sensors, security devices or pocket-sized DIY projects? This plastic holder for a single 12V A23 / 23A battery offers a simple and highly effective solution. This miniature battery box is designed to hold the battery firmly in place and, using the integrated wires, immediately supply the required voltage to your circuit.

Thanks to its ‘without cover’ design, the case is extremely compact and lightweight, and allows for the instant replacement of a flat battery without the need to unscrew or open anything. Key features:

- Precise dimensions to the A23 standard: The internal space and strong compression springs are designed exactly for 12V alkaline batteries designated as 23A, A23, L1028 or MN21.
- Integrated flexible leads (with cable): Two colour-coded cables are pre-wired from the case at the factory (usually red for the positive terminal (+) and black for the negative terminal (-). This saves you the time spent soldering contacts directly onto the case body.
- Low-profile design without a cover: The absence of a cover reduces the dimensions and weight to an absolute minimum. The casing can easily be tucked away in small boxes, model-making projects or prototypes.
- Secure mechanical hold: A sturdy internal coil spring ensures that the battery remains securely in place even during shocks, drops or when the device is being carried.
- Easy installation: The case can be simply attached from the underside using double-sided adhesive tape, hot-melt adhesive or secured with a small screw.


Technical specifications: - Product type: Battery case / holder (Battery Holder Box)
- Capacity: 1× A23 / 23A battery - Compatible battery markings: 23A, A23, L1028, MN21, RV08, MS21, V23GA
- Nominal output voltage: 12 V DC - Design: Without top cover (open face / without cover) - Terminals: Integrated flexible leads (wire), length approx. 13–15 cm
- Body material: Rigid, mechanically robust black polypropylene (PP) - Contact material: Nickel-plated spring steel - Dimensions: 35 x 12 x 12 mm

Don’t waste time trying to come up with complicated contact solutions for your miniature 12V projects. Opt for a clean, safe and professional solution in the form of the A23 enclosure with pre-wired cables. Add it to your basket today!
