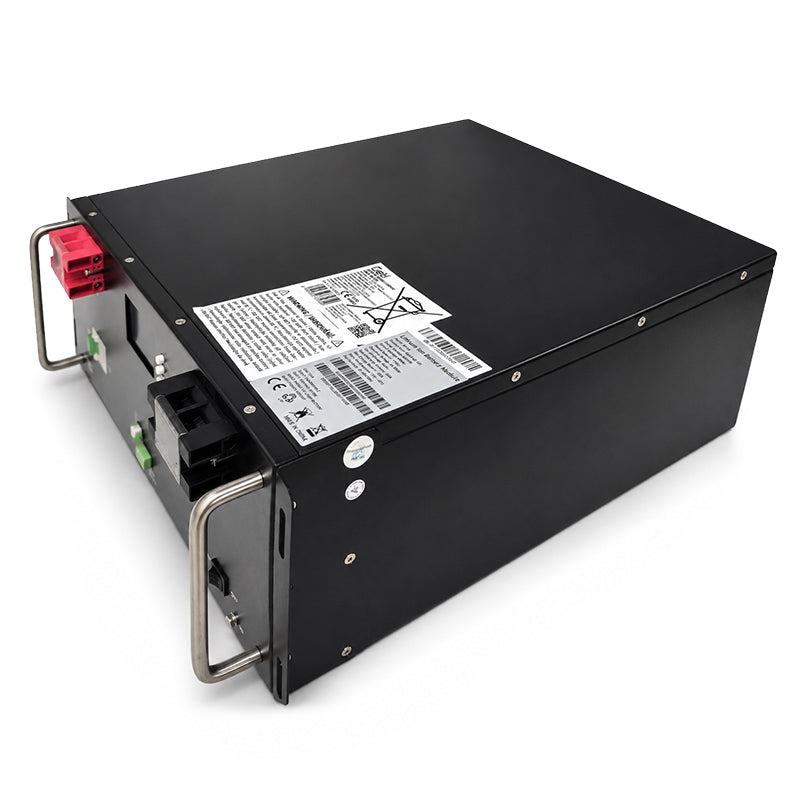

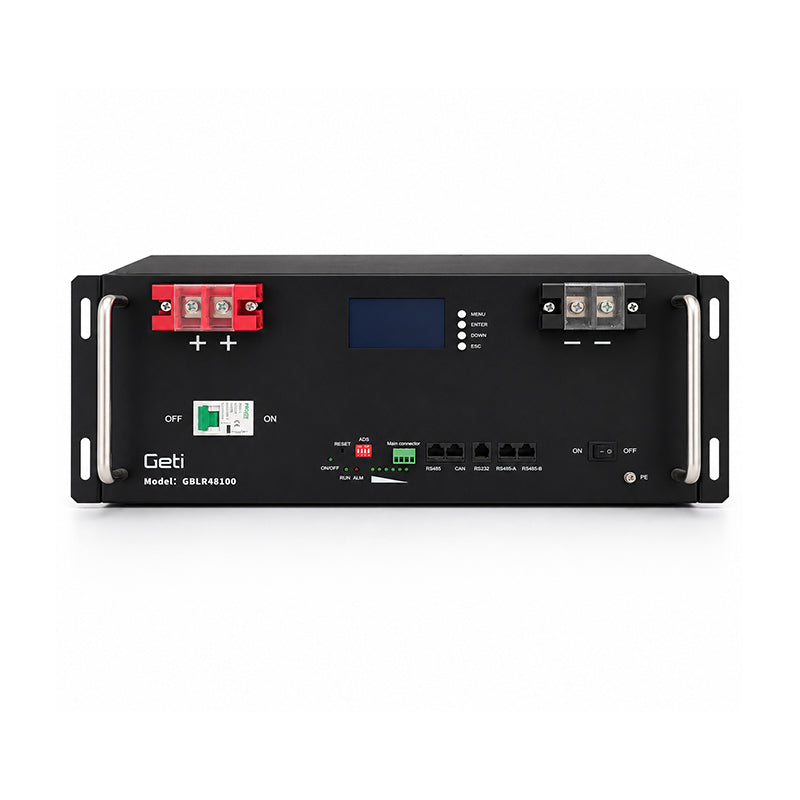

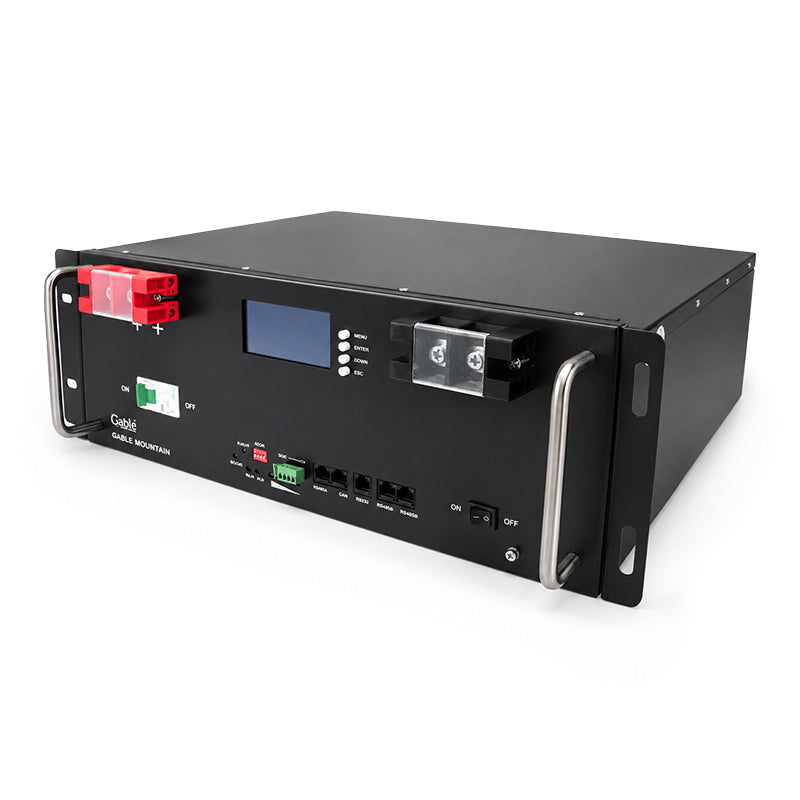

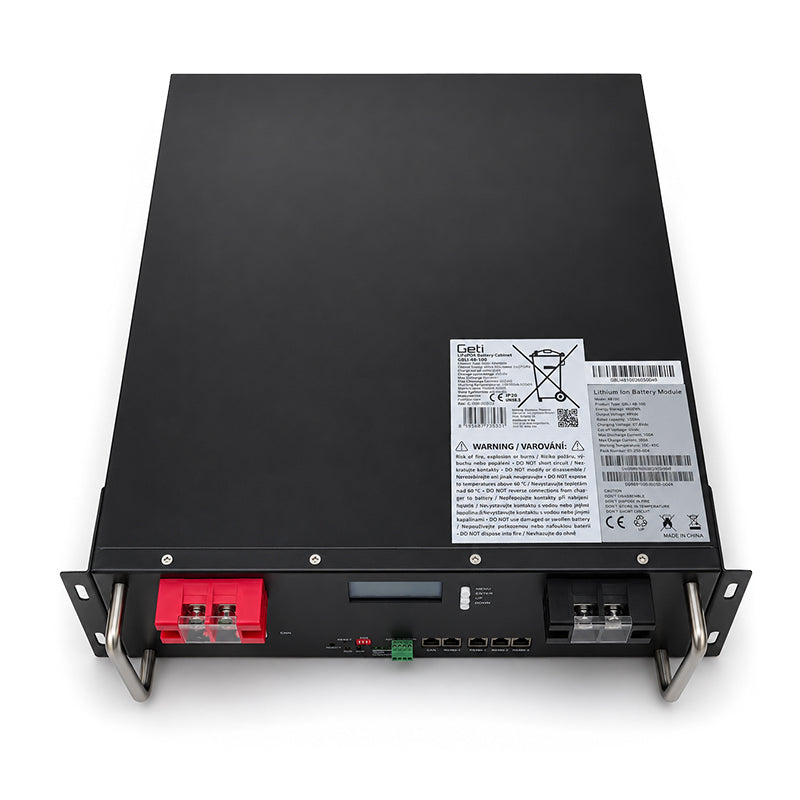

LiFePO4 battery module, 48V 100A, GBLR-48-100, 4.8 kWh, GETI, for a 19" rack

Geti GBLR-48-100 rack-mounted LiFePO4 battery – high-performance, smart and safe power for your system

The Geti GBLR-48-100 is a high-performance rack-mounted LiFePO4 battery designed for modern energy systems, particularly photovoltaic installations and backup power supplies. With a capacity of 100 Ah and an energy storage of 4800 Wh, it provides a reliable and long-lasting power source with an outstanding service life of over 6000 cycles at 80% DOD.

The battery is equipped with an integrated BMS (Battery Management System), which protects it against overcharging, deep discharge, short circuits, overheating and overcurrent, thereby ensuring maximum safety and service life. It also features a clear LCD display for monitoring operational data and real-time power output. Thanks to support for the CAN, RS485 and RS232 communication protocols, the battery is fully compatible with leading inverter brands such as DEYE, GROWATT, GOODWE, SOLAX, SOLIS, VICTRON and MEGAREVO.

Installation is straightforward thanks to its standardised dimensions for a 19" rack, allowing for easy and neat integration into technical cabinets or switchboards. Up to 15 batteries can be connected in parallel, enabling you to meet even higher energy demands.


Product specifications: - A reliable power source for both domestic and business systems - Long service life – over 6,000 cycles at 80% discharge
- Integrated BMS protection – safe, worry-free operation - Simple installation in a rack cabinet – compact design - Clear LCD display for immediate monitoring of battery status and performance
- Option to connect up to 15 batteries in parallel for higher capacity - Wide compatibility with commonly used inverters - High-quality construction with an anti-static metal casing ensuring stable operation
- Low self-discharge rate – minimal energy loss during inactivity - Ideal replacement for lead-acid batteries – safer, lighter and more efficient


Technical specifications: - Model: GBLR-48-100 (EP48100MB) - Nominal voltage: 48.0 V - Capacity: 100 Ah
- Energy: 4,800 Wh (4.8 kWh) - Charging voltage: 53.25 V - Load disconnection: 42 V (recommended), 40.5 V (BMS cut-off)
- charging mode: CC/CV (1st phase: constant current, 2nd phase: constant voltage) - recommended charging/discharging current: 20 A
- Max. continuous charging current: 100 A (max. at 25 °C) - Max. continuous discharging current: 100 A (max. at 25 °C)
- Service life: >6,000 cycles at 80% DOD - BMS: integrated - Protection against: overcharging, undercharging, overcurrent, overheating or short circuit - Integrated circuit breaker: YES
- display: YES (LCD) - self-discharge: ?2% per month at 25°C - charging temperature: 0° to 45°C
- Discharge temperature: –20° to 60 °C - Storage temperature: –10° to 45 °C - Connections: +/– terminals (including circuit breaker and reset button)
- Communication: CAN / RS485 / RS232 - Compatibility with inverters: DEYE, GROWATT, GOODWE, SOLAX, SOLIS, VICTRON, MEGAREVO - Protection: IP20

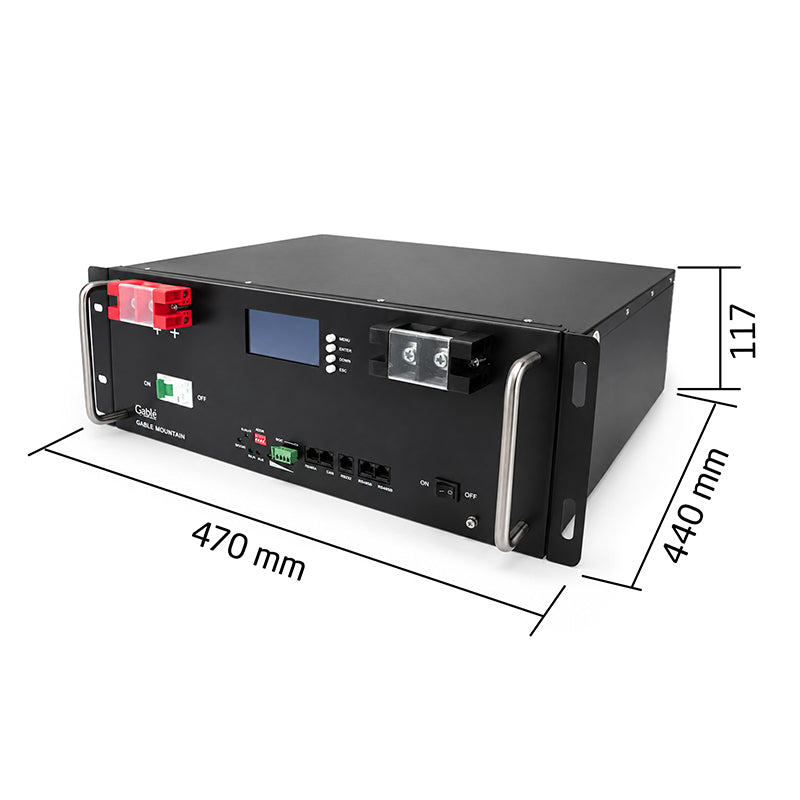

- Dimensions (L x W x H): 470 x 440 x 177 mm - Weight: approx. 44 kg Batteries may only be connected in parallel – 15 units (max.)

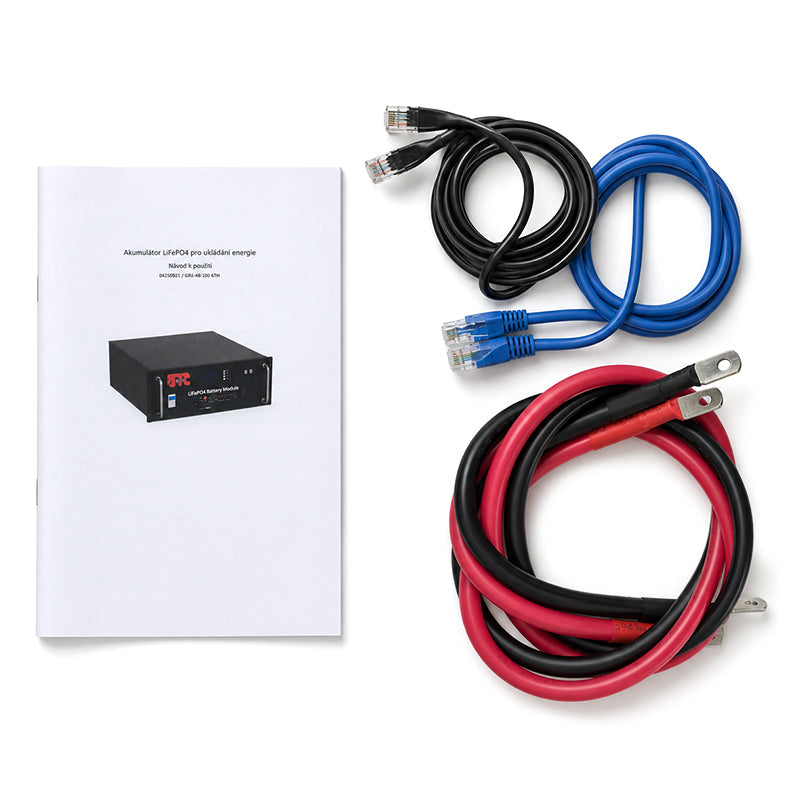

Package contents: 1 battery, 1 pair of power connection cables with a 25 mm2 tinned copper core (length 100 cm, M6 terminals), 1 x RJ45 communication cable (length 100 cm), user manual.
