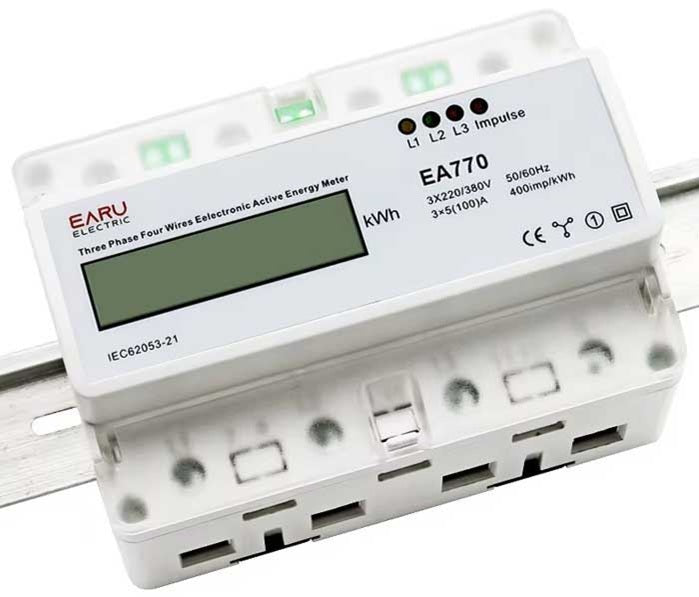

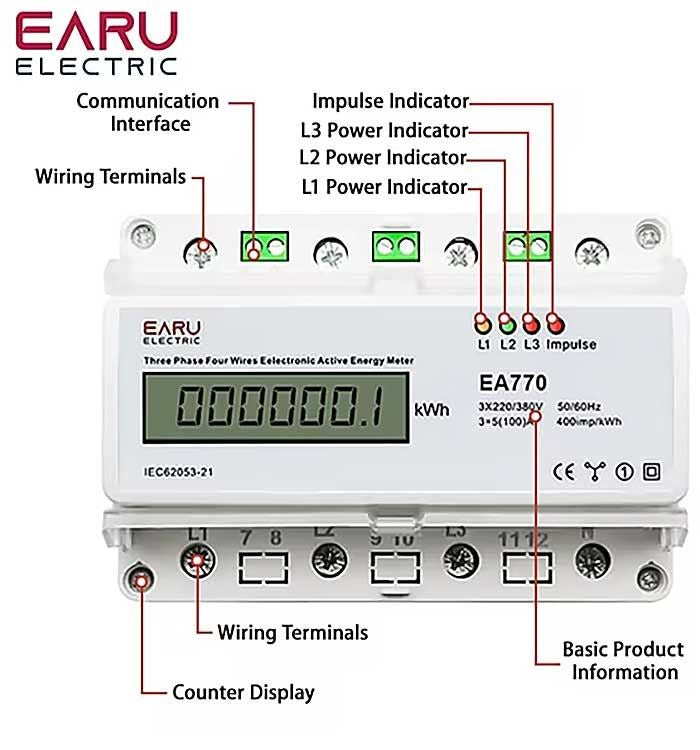

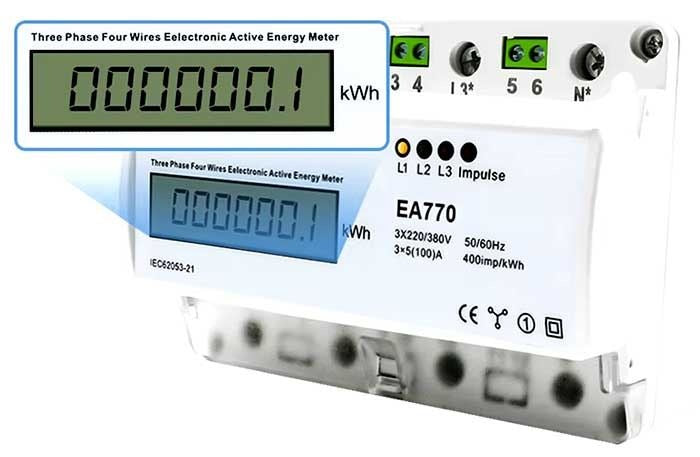

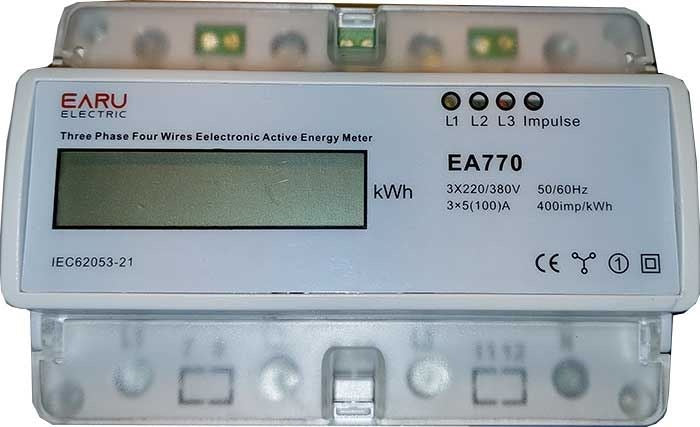

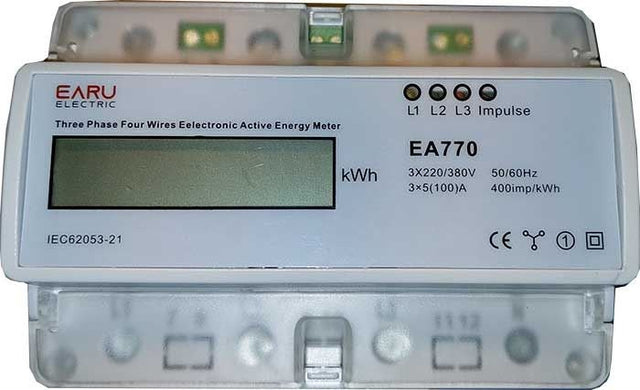

3F DIN rail meter EA770
Three-phase DIN rail electricity meter - voltage 3 × 230/400V, reference current 3 × 5A, max. current 100A, accuracy class 1.0, frequency 50–60Hz, measuring range 0–99999.9kWh, pulse constant 400 imp/kWh, backlit LCD display, pulse output, own consumption 2W, operating temperature -30 to +65°C, width 125 mm
Last piece
Expected shipping:
12.10.2026
Regular price
599,00 Kč
495,04 Kč
excl. VAT
Unit price
/
Unavailable
HADEX | SKU:
07750290
Product description
Meter for continuous measurement of active power consumption from a three-phase power source. It measures consumption and overflows in the same ratio, registering overflows as consumption.
Technical parameters:
Voltage: 3x 230/400V
Reference current: 3x5A
Maximum current Imax: 100A
Accuracy class: 1.0
Standard: IEC62052-11, IEC62053-21
Frequency: 50-60Hz
Pulse constant: 400imp/kWh
Display: LCD6+2 backlit
Self-consumption: 2W
Starting current: 0.004lb
Operating Temperature: -30°C - 65°C
Width: 125mm
Current measurement range: 0.04-100A,
Power measurement range: 0-99999.9kWh
Pulse output
Technical parameters:
Voltage: 3x 230/400V
Reference current: 3x5A
Maximum current Imax: 100A
Accuracy class: 1.0
Standard: IEC62052-11, IEC62053-21
Frequency: 50-60Hz
Pulse constant: 400imp/kWh
Display: LCD6+2 backlit
Self-consumption: 2W
Starting current: 0.004lb
Operating Temperature: -30°C - 65°C
Width: 125mm
Current measurement range: 0.04-100A,
Power measurement range: 0-99999.9kWh
Pulse output
