16 A fuse switch for a photovoltaic panel
In stock 2 pcs
Expected shipping:
22.10.2026
Regular price
285,00 Kč
235,54 Kč
excl. VAT
Unit price
/
Unavailable
NEOSOLAR | SKU:
04291314
Product description
The isolator contains one fuse – it is fitted inside the isolator.

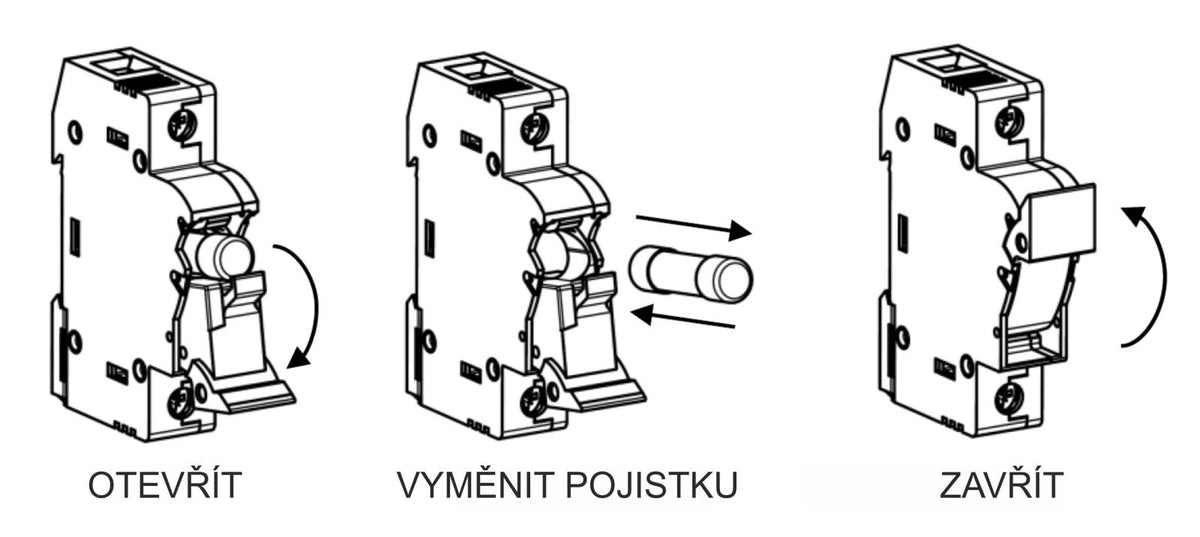

In the event of a short circuit or overload, the fuse fitted in the disconnector will blow. Once the short circuit or overload has been rectified, insert a new fuse into the hinged holder and close the fuse holder.
Do not open the fuse holder whilst under load! Technical specifications of the disconnector: - weight: 63 g - rated current: 25 A - rated DC voltage: 1000 V
- connection: 1–25 mm2 - mounting: 35 mm DIN rail Technical specifications of the fuse for protecting photovoltaic modules: - rated current: 16 A - characteristic: gPV
- Rated DC voltage: 1000 V - Breaking capacity: DC 30 (kA) - Power dissipation: 1.9 W - Dimensions: 10 x 38 mm Set contents:
1x EFH-10 1p photovoltaic fuse switch 1x 16 A PV fuse for the EFH-10 1p fuse switch
