0-24sec timer with relay
Timer switch with relay - power supply 5V via micro USB or solder pads, output relay 230VAC/5A, adjustable switching time 0–24 s by trimmer (formula T=1.1RC, replacing capacitor C2 for a different range), triggering by a button or the falling edge of an external signal, LED relay status indicator, dimensions 54 × 19 × 18 mm, weight 16 g, requires professional installation
Last piece
Expected shipping:
09.10.2026
Regular price
38,00 Kč
31,40 Kč
excl. VAT
Unit price
/
Unavailable
HADEX | SKU:
09830135
Product description

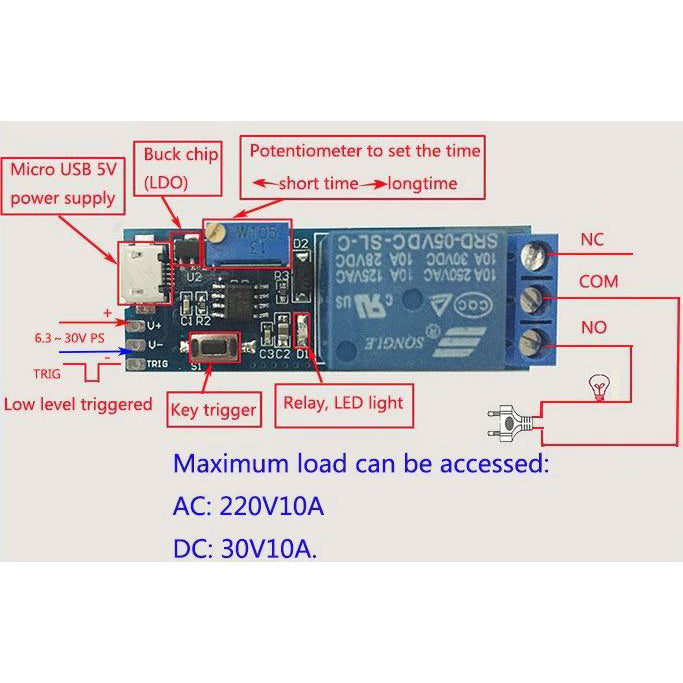

Time switch for short times with relay output 230VAC / 5A. Suitable for extending the button closing time in the interval 0–24sec.
After pressing the button or the falling edge of the external pulse, the relay closes for a set time of up to 24sec. This time can be changed by replacing the external components (trimmer and capacitor C2, where the formula applies: T = 1,1RC)
Technical parameters:
- supply voltage: 5V (micro USB or solder pads)
- start by button or external signal (low level)
- trimmer for setting the switching time 0–24sec
- LED indicator of closed relay
- dimensions: 54 × 19 × 18mm / 16g
The product is not a self-functional unit, it requires professional assembly.
