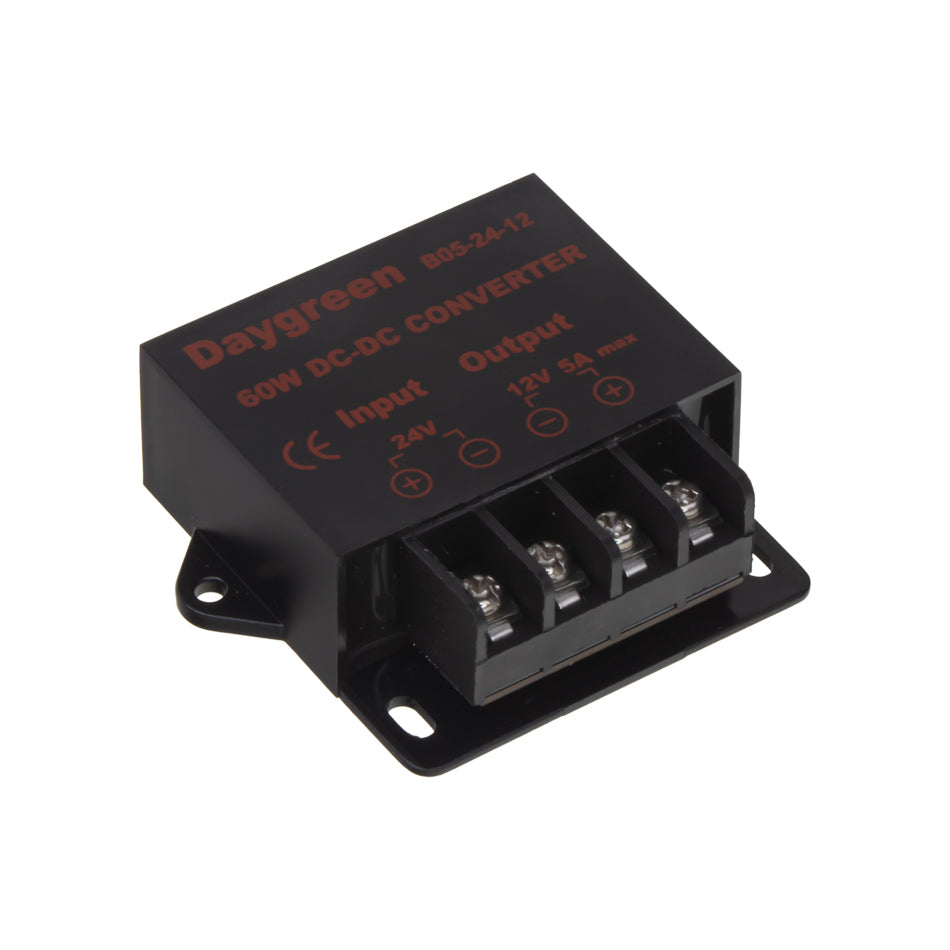

Voltage converter 24/12 5A STU 34205
DC/DC voltage converter - input 18–35V DC, output 12V DC, output current 5A (60W), efficiency 95%, standby current 0.01A, dimensions 63 × 53 × 20 mm, weight 70 g, IP68 rating, operating temperature -40 to +85°C, protection against overvoltage, short circuit, overheating and overcurrent, waterproof and shockproof case
In stock 2 pcs
Expected shipping:
12.10.2026
Regular price
285,00 Kč
235,54 Kč
excl. VAT
Unit price
/
Unavailable
STUALARM | SKU:
06437244
Product description

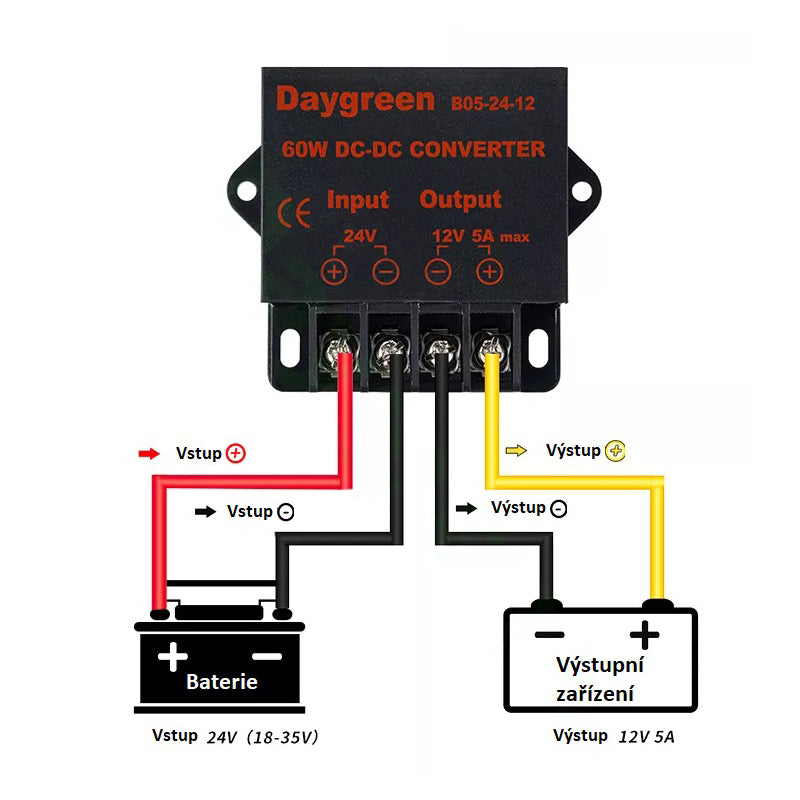

The voltage converter enables the connection of 12 V appliances to a vehicle with a 24 V distribution.
Technical parameters:
- input voltage: 18-35V DC
- output: 12V DC
- output current: 5A 60 W
- current draw at rest: 0.01A
- dimensions: 63 x 53 x 20 mm
- efficiency: 95%
- weight: 0.07 kg
- maximum operating temperature: -40 to + 85 oC
- overvoltage protection
- current protection
- protection against overheating
- short-circuit protection at the output
- IP68 waterproof and shockproof housing
ATTENTION: Always connect the fuse with the maximum load value of the inverter in front of the inverter!!!!
Technical parameters:
- input voltage: 18-35V DC
- output: 12V DC
- output current: 5A 60 W
- current draw at rest: 0.01A
- dimensions: 63 x 53 x 20 mm
- efficiency: 95%
- weight: 0.07 kg
- maximum operating temperature: -40 to + 85 oC
- overvoltage protection
- current protection
- protection against overheating
- short-circuit protection at the output
- IP68 waterproof and shockproof housing
ATTENTION: Always connect the fuse with the maximum load value of the inverter in front of the inverter!!!!
