Victron Energy Sun Inverter 12V/250A-15 IEC
New
Voltage inverter with solar charger - input 12V, power 250VA, output 230VAC, pure sine wave, integrated PWM solar charger for charging the battery from PV panels, max. current from the solar input 15A, toroidal transformer, ECO mode with min. load 15W and adjustable wake-up interval (default 2.5 s), high starting power, IEC design, protection against overheating and overload
Not in stock
Regular price
2.590,00 Kč
2.140,50 Kč
excl. VAT
Unit price
/
Unavailable
VICTRON ENERGY | SKU:
04230709
Product description
The Victron Energy voltage converter is an efficient and reliable voltage converter built on a proven and field-tested platform. The inverter incorporates a robust toroidal transformer that has proven its reliability in Victron Energy inverters for many years.
Key Features:
High starting power:
Required to start loads such as inverters for LED bulbs, halogen lamps or power tools.
ECO mode:
In ECO mode, the inverter switches to standby mode when the load falls below a preset value (min. load: 15 W). Once in standby mode, the inverter will switch on for a short period of time (adjustable, default: every 2.5 seconds). If the load exceeds the preset level, the inverter will remain on.
PWM solar charger:
The solar charger provides battery charging with energy obtained from your solar panels. The charging algorithm is programmable.
Remote on/off:
The Phoenix Inverter Control VE.Direct Remote panel (not included) can be used to turn the inverter on or off remotely. Alternatively, the remote switch can be plugged into the two-pole connector or between the battery plus and the left contact of the two-pole connector.
LED diagnostics:
Please refer to the manual for a description of each condition.
Bluetooth:
Inverter and solar charger parameters can be read, monitored and configured via Bluetooth
VictronConnect app.
VE.Direct communication port:
The VE.Direct port can be used to connect to a GX device, GlobalLink 520 for monitoring through the VRM portal or to connect to a computer for monitoring or configuration using the VictronConnect app.
Monitoring via the VictronConnect app or GX device:
Inverter input and output voltages and % load
Solar energy, voltage and current
Operating status and alarms
Fully configurable via the VictronConnect app:
Low battery voltage alarm triggering and level reset
Low battery shutdown and restart levels
Dynamic shutdown: load-dependent shutdown levels
Output voltage 210 - 245 V and frequency 50 Hz or 60 Hz
ECO mode on/off and ECO mode sensing level
Battery charging current, algorithm and voltage
Temperature compensation for battery charging or low temperature level reduction
Load transfer to another AC power source: automatic transfer switch:
For our low power inverters, we recommend our Filax automatic transfer switch. Filax features a very short switching time (less than 20 milliseconds), so computers and other electronic devices yes
continue to operate without interruption.

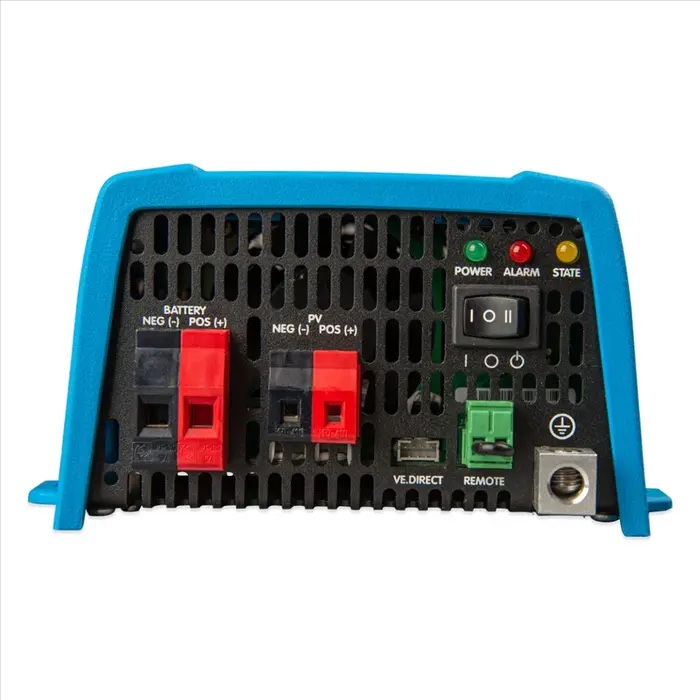

DC and PV connections with screw terminals:
No special cable terminals or tools are required for installation
Available with IEC-320 socket:
IEC-320 plug included.
Specifications:
230 V AC +/- 3% 50 Hz or 60 Hz +/- 0.1%.
continuous power at 25 oC: 250 VA / 200 W
Peak power: 400 W
max. efficiency: 87%
self-consumption at zero load: max 4.2 W
self-consumption in ECO mode: max 0.8 W
230 V AC connection: IEC-320 plug
Operating temperature range: -40 to +60 oC (fan-assisted cooling)
Humidity (non-condensing): max. 95%
Protection class: IP21
weight: 2.4 kg
Dimension: 86 x 165 x 260 mm
