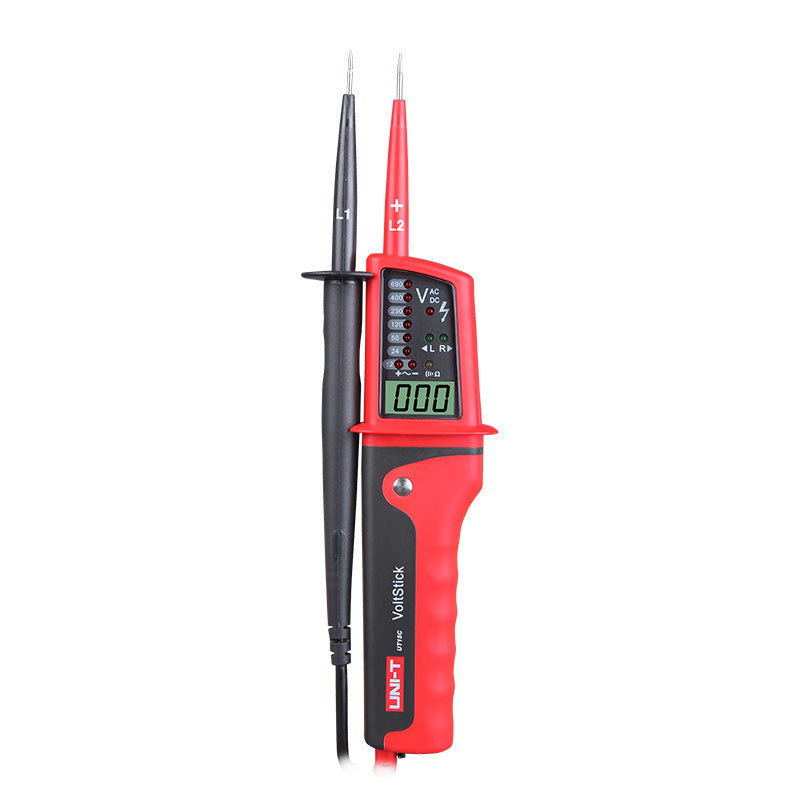

UNI-T UT15C Tester

The UNI-T UT15C tester is a robust and ergonomically designed measuring instrument intended for the quick and safe testing of AC and DC voltage, conductivity, phase rotation and other parameters. Thanks to its IP65 protection rating, fast response time (<0.1 s) and the ability to detect voltage even without batteries, it is the ideal choice for professionals who require maximum reliability in demanding conditions.


Product specifications: - multifunctional, extremely durable tester - ergonomic design - voltage test range from 12 to 690 V AC/DC (LED indication)
- conductivity test with visual and audible indication - phase rotation test - the device housing is water- and dust-resistant (IP65 rating)
- illuminated test probe - protective cap for probes - single-pole test - fast response time (<0.1 s)


Technical specifications: - AC/DC voltage LED indicators (V): 12V, 24V, 50V, 120V, 230V, 400V, 690V
- Phase rotation test: operating voltage: 0 V to 690 V, frequency 50 Hz to 60 Hz - Single-pole voltage test - Continuity test: audible and visual indication
- Polarity and short-circuit detection - Range setting: automatic - IP65 protection rating - Automatic range selection - Measuring probe illumination - Battery indicator: yes
- LCD display (AC/DC): 24V to 690V: ± (3%+5) - Power supply: 2 x 1.5V batteries (AAA)
- LCD display: 23 x 12 mm - dimensions: 275 x 51 x 30 mm - weight: 210 g Manufacturer: UNI-TREND
