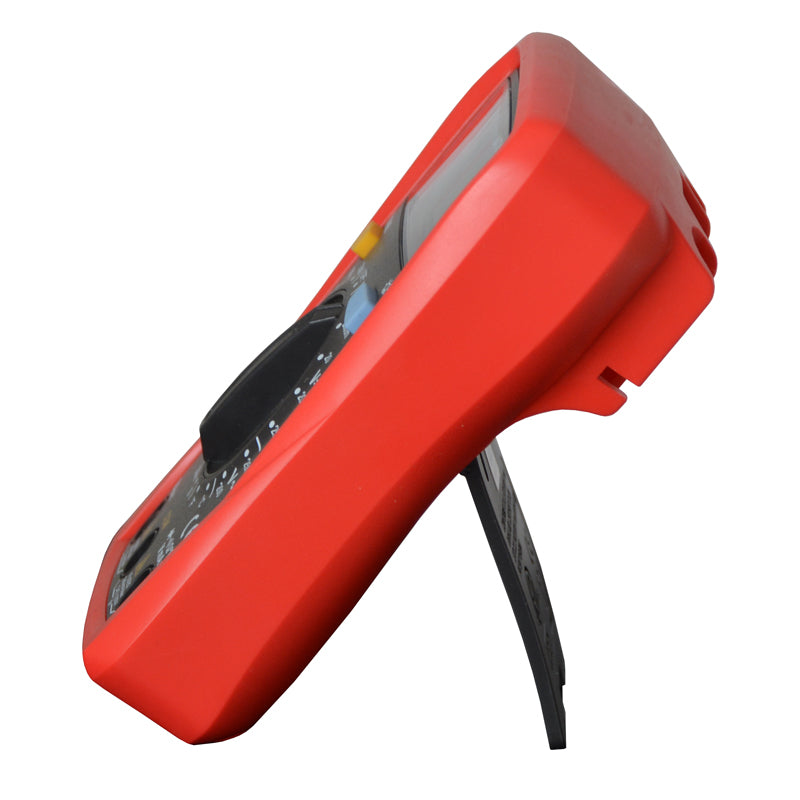

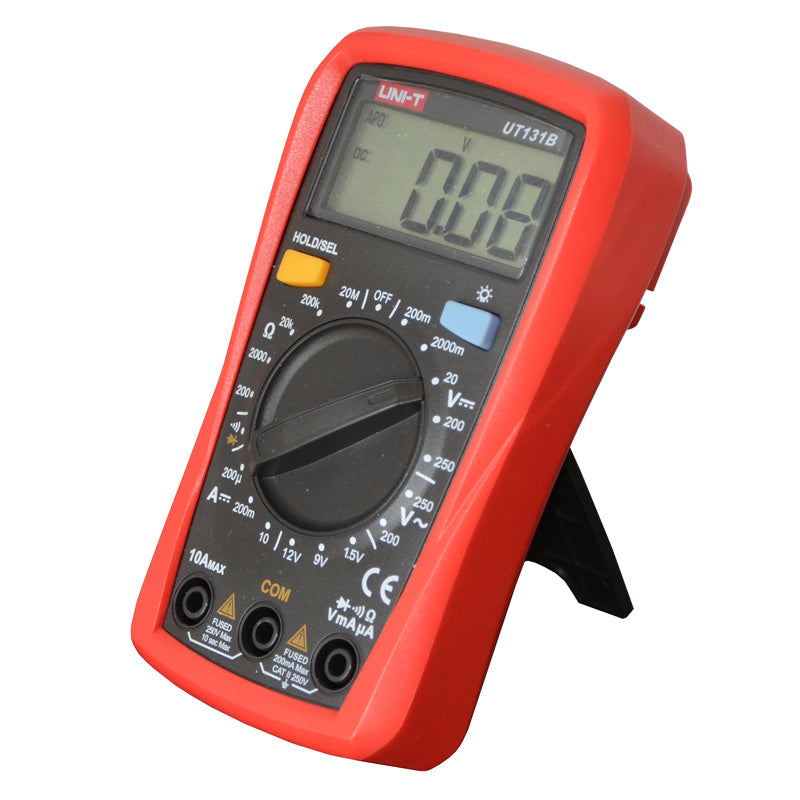

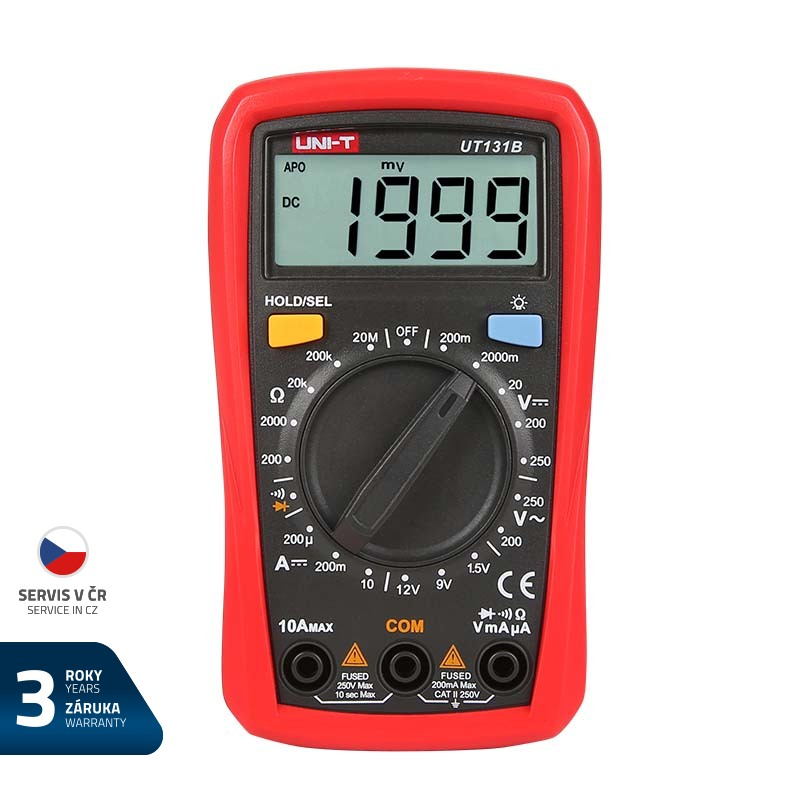

UNI-T UT131B multimeter – unboxed

We provide a 3-year warranty on this product. The UNI-T UT131 series of multimeters offers a high standard of measurement within the affordable digital multimeter category. The innovative, industrial design, featuring a protective casing, ensures the multimeter can withstand impacts and drops from heights of up to two metres. The new layout of the LCD display is clearer and more practical for all users; the display also features a backlight. The UT131 series multimeters ensure safe handling and measurement; they are classified as CAT II safety category (double-insulated appliances) and are designed for measurements in circuits up to 250 V AC or DC. The display range is ±1.999. The current ranges are protected by fast-acting tubular fuses (the 10 A range by a 10 A/250 V fuse; the mA/µA range by a 200 mA fuse). The multimeter is powered by two 1.5 V AAA alkaline batteries.

The UT131B model in the UT131 series features manual selection of the measurement range within the given measurement modes: Vst, Vss, mVss/st, resistance, buzzer, semiconductors, µAss/st, mAss/st, Ass/st, as well as 1.5V, 9V and 12V battery testing with a load. Product specifications: - display range ±1,999
- measures parameters: Vst, Vss, mVss/st, µAss/st, mAss/st, Ass/st, resistance, capacitance, continuity (using a buzzer), semiconductor junctions (diodes)
- DC voltage measurement: 200 mV to 250 V - AC voltage measurement: 200 mV to 250 V
- Direct current (DC) measurement: 200.0 µA to 10.00 A

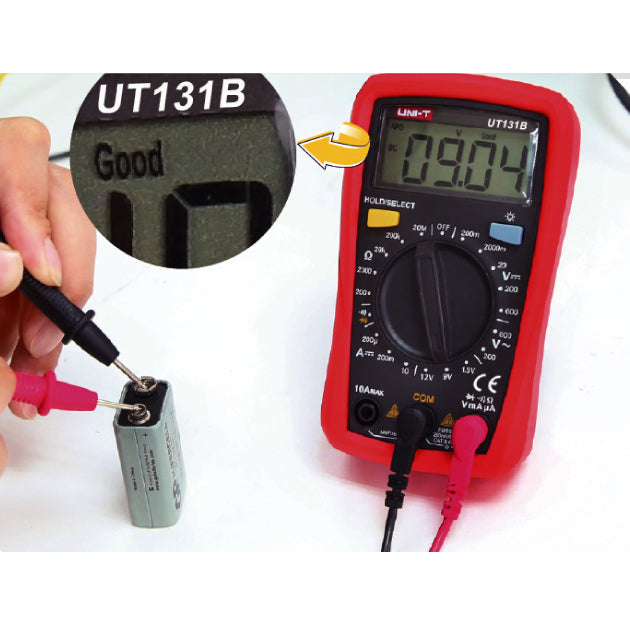

- resistance measurement: 200.0 ? to 200.0 M? - battery test for 1.5 V, 9 V and 12 V batteries using 30 ?, 900 ? and 60 ? load resistors
- Safety category: CAT II (double insulation) up to 250 V AC/DC - Powered by 2 × AAA 1.5 V alkaline batteries - Backlit display
- Continuity test (buzzer) - Diode test - Reverse polarity detection - Data hold function - Low battery indicator - Automatic switch-off after 15 minutes of inactivity
- Test leads included Technical specifications: DC voltage measurement (input impedance approx. 10 M?): (range / resolution / accuracy)
200 mV / 0.1 mV / ± 0.7% + 3 2000 mV / 1 mV / ± 0.5% + 2
20.00 V / 0.01 V / ± 0.7% + 3 200.0 V / 0.1 V / ± 0.7% + 3
250 V / 1 V / ± 0.7 % + 3 AC voltage measurement (input impedance approx. 10 M?, 40 Hz to 400 Hz sine wave):
(range / resolution / accuracy) 200.0 mV / 0.1 mV / ± 1.0 % + 2 2.000 V / 0.001 V / ± 0.7 % + 3
20.00 V / 0.01 V / ± 1.0 % + 2
200.00 V / 0.1 V / ± 1.2 % + 3 250 V / 1 V / ± 1.2 % + 3 DC current measurement:
(range / resolution / accuracy) 200.0 µA / 0.1 µA / ± 1.0 % + 2 2000 µA / 1 µA / ± 1.0 % + 2
20.00 mA / 0.01 mA / ± 1.0 % + 2 200.0 mA / 0.1 mA / ± 1.0 % + 2
2.000 A / 0.001 A / ± 1.2 % + 5 10.00 A / 0.01 A / ± 1.2 % + 5 Resistor measurement:
(range / resolution / accuracy) 200.0 ? / 0.1 ? / ± 1.0 % + 2 2000 ? / 1 ? / ± 0.8 % + 2
20.00 k? / 0.01 k? / ± 0.8 % + 2 200.0 k? / 0.1 k? / ± 0.8 % + 2
20.00 M? / 0.01 M? / ±1.2 % + 3 200.0 M? / 0.1 M? / ± 5.0 % + 10


The instrument complies with standards IEC 61010-1, IEC 61010-2-030, CAT II Power supply: 2 x AAA 1.5 V batteries Dimensions (mm): 134 x 77 x 47
Weight: approx. 206 g (including batteries) Operating temperature: 0–40°C Package contents: - UNI-T UT131B multimeter
- Test leads - 2 x AAA 1.5 V batteries - User manual in Czech, Slovak and English Manufacturer: UNI-TREND www.uni-t.cz
