Timer 0–30 sec, 0–30 min, 0–30 hours with two time settings
Časový spínač se dvěma časovými kanály - napájení 12V DC, kontakt relé 230VAC/10A nebo 12VDC/20A, 6 provozních režimů (trvalé sepnutí, časované sepnutí/vypnutí, kombinované a cyklické režimy), časový rozsah 0–999 s / 0–999 min / 0–999 hod, klidový odběr 20mA, odběr při sepnutém relé 120mA, rozměry 48 × 29 mm, montážní otvor 45,5 × 26 mm
In stock more than 5 pcs
Expected shipping:
04.09.2026
Regular price
144,00 Kč
119,01 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830218
Timer 0–30 sec, 0–30 min, 0–30 hours with two time settings
Regular price
144,00 Kč
119,01 Kč
excl. VAT
Unit price
/
Unavailable
Product description
A timer with three adjustable time intervals and two time channels. The two time settings can be combined in various ways. Time range: 0–30 seconds, 0–30 minutes, 0–30 hours; the settings apply to both channels simultaneously.

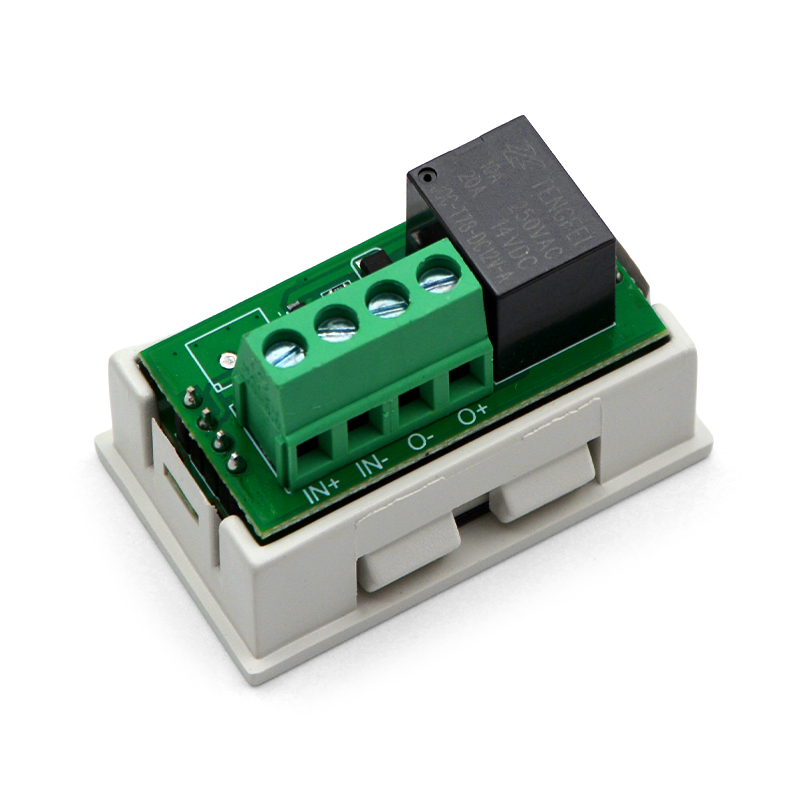

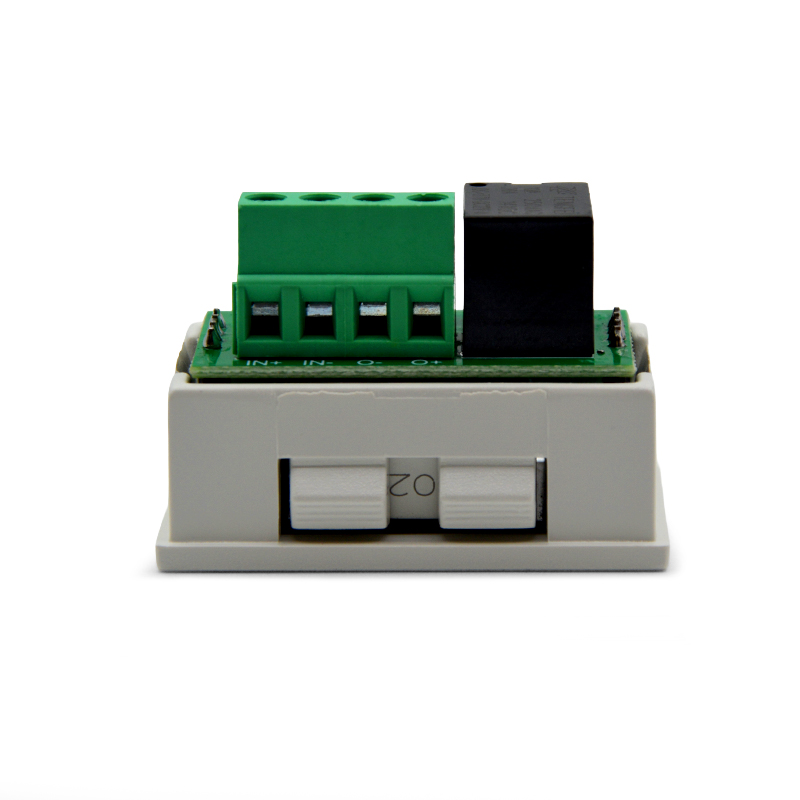

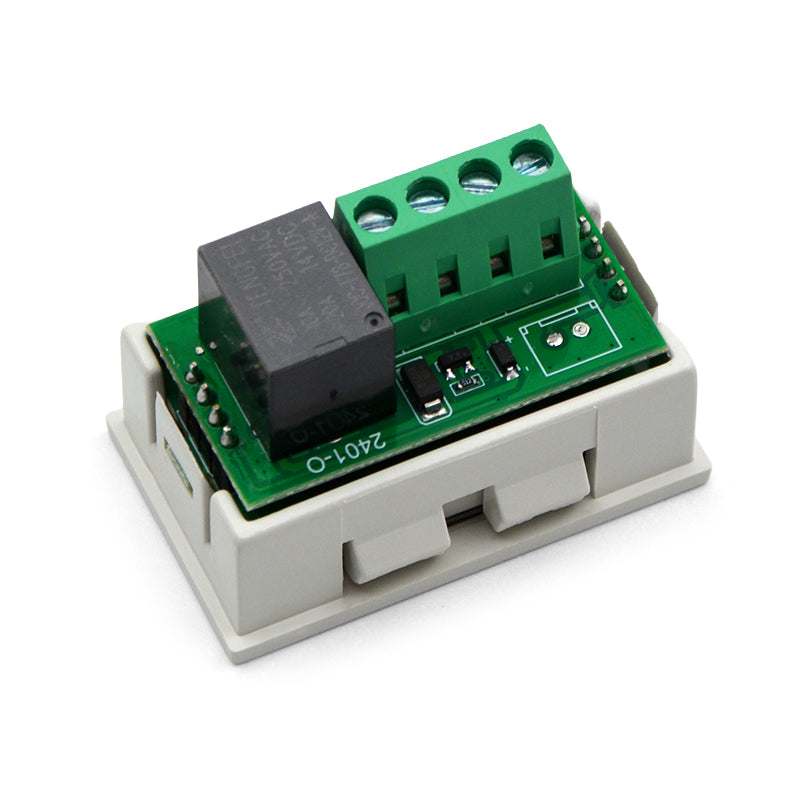

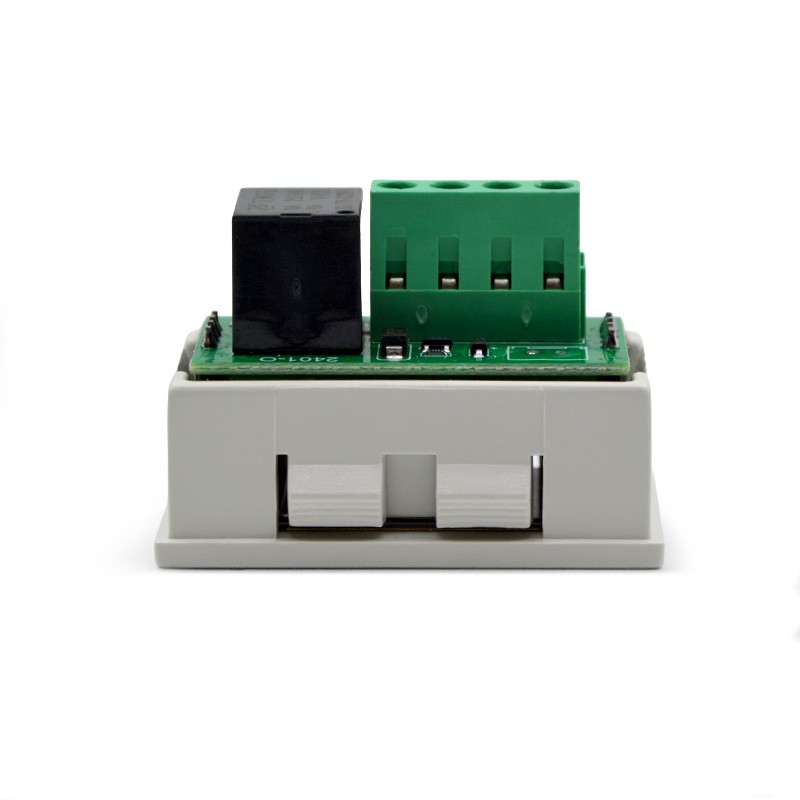

A compact panel-mounted timer module with a clear LED display, designed for the repeated cyclic switching on and off of appliances.
It allows independent setting of the switch-on and pause times across a wide range from seconds to hours. Flexible time units: Independent setting of seconds, minutes or hours for both switch-on and pause times.Selectable initial state: Option to set whether the cycle begins by making or breaking the relay contact when power is applied. Clear dual display: Simultaneous display of both countdown times. Setting protection: Integrated electronic lock to prevent accidental mode switching.Easy installation: Designed for panel or junction box mounting. Applications: Suitable for the automation of irrigation systems, cyclic ventilation, heating control, water top-ups in aquariums, industrial automation or timed lighting control.
Technical specifications: - Supply voltage: 12V DC - Switching contacts load: 10A – 250V AC or 20A – 14V DC
- Timer range: 0–30 (seconds / minutes / hours) - Operating mode: Endless cycle (Start ON / Start OFF)

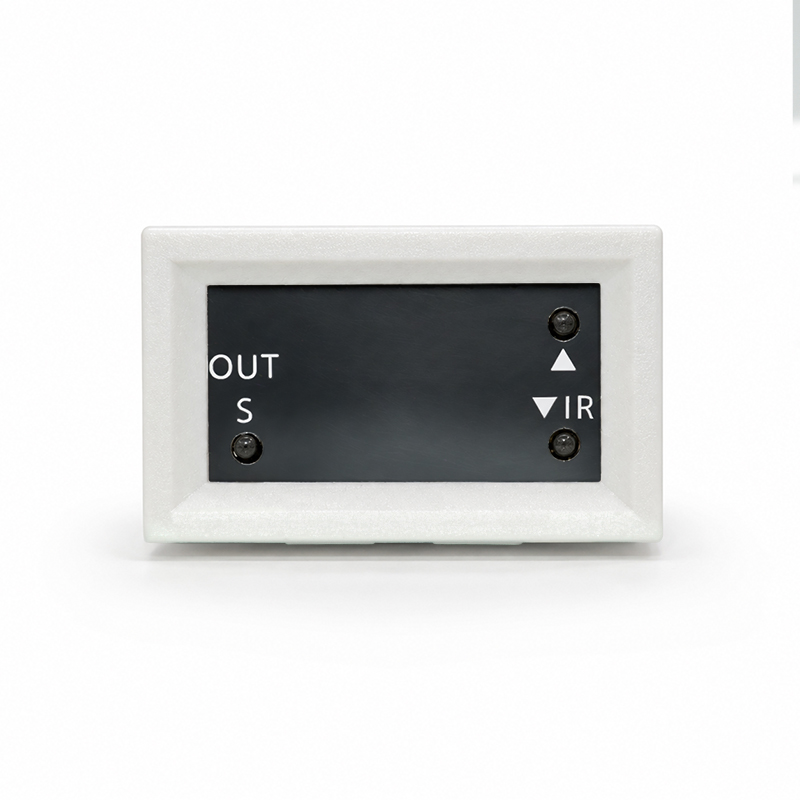

- Display: Dual LED (Green + Red) - Mounting hole: 45 x 26 mm - Overall dimensions: 48 x 29 x 21 mm
Overview of functions and settings (Menus P0–P3) P0 (Time unit for switch-on): 0 = Seconds | 1 = Minutes | 2 = Hours
P1 (De-energisation time unit): 0 = Seconds | 1 = Minutes | 2 = Hours P2 (Initial cycle state): ON = Cycle starts by energising | OFF = Cycle starts in pause mode
P3 (P2 setting lock): 0 = Unlocked | 1 = Locked The module does not have a separate Start button. Timing starts when the input voltage is applied. This product is not a self-contained unit and requires professional installation.
