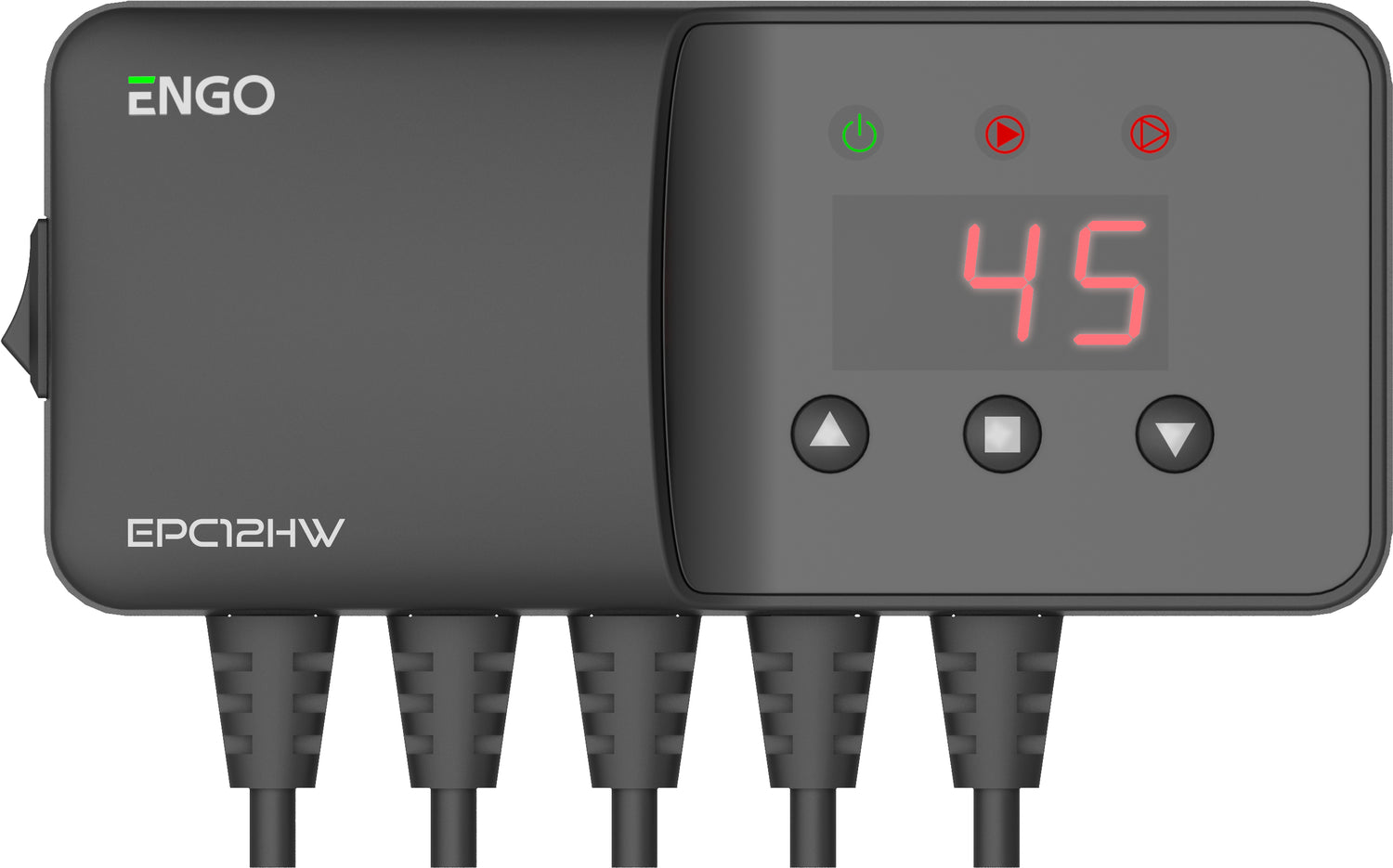

Thermostat for controlling the ENGO EPC12HW circulator

Thermostat for controlling CH and DHW pumps - 230V AC 50Hz power supply, max. load 2× 3(1)A, measuring range 0–99°C, CH control range 5–80°C, DHW control range 20–80°C, sensor temperature resistance -10 to 120°C, CH sensor length 1.5 m, DHW sensor length 3 m, control based on the temperature difference between the boiler and the tank, dimensions 155 × 70 × 39 mm

Show full description
In stock 6 pcs
Expected shipping: 22.09.2026
985,00 Kč 1.088,00 Kč 814,05 Kč excl. VAT
ENGO  |  SKU: 06446827  |  Barcode: 5904665764411
Log in for VAT-free pricing

Product description

Thermostat for DHW pump control

The device switches on when the boiler temperature exceeds the set temperature of the central heating pump. the DHW pump operates based on the temperature difference. The DHW pump switches on when the boiler temperature exceeds the superheater temperature by the hysteresis set by the user. The hot water pump operates until the boiler and tank temperature are equal or the set tank temperature is reached.

Technical parameters:

Power supply: 230V AC 50Hz
Max. 3(1) A
Max. 3(1) A
Temperature measurement range: 0 - 99°C
DHW temperature control range: 5 - 80°C
DHW temperature control range DHW temperature control range: 20 - 80°C
Sensor temperature resistance: -10 - 120°C
CT sensor span: 1.5m
DHW sensor separation: 3m
Dimensions: 155x70x39 mm
