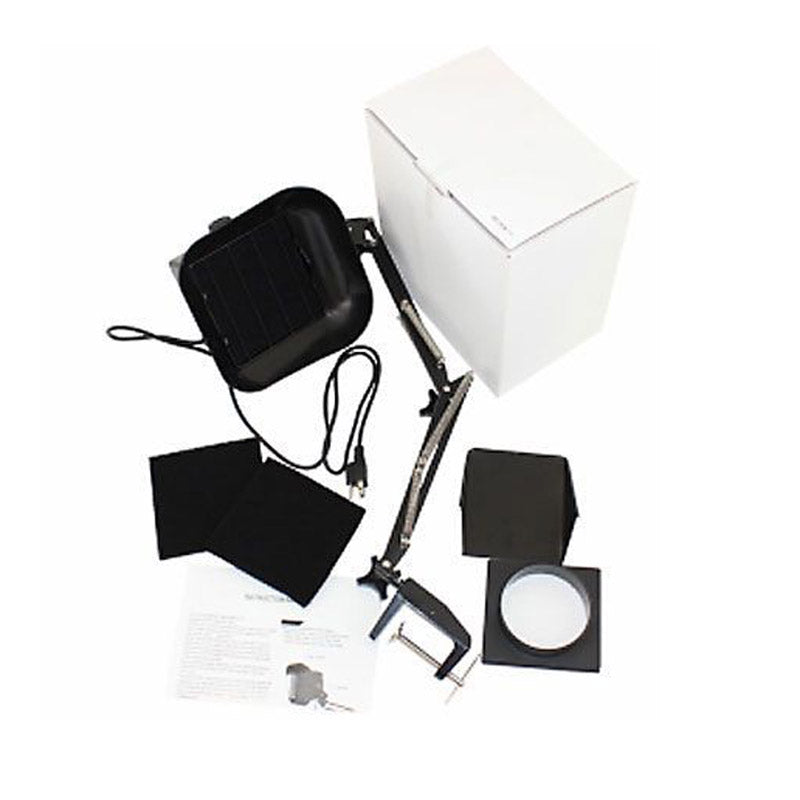

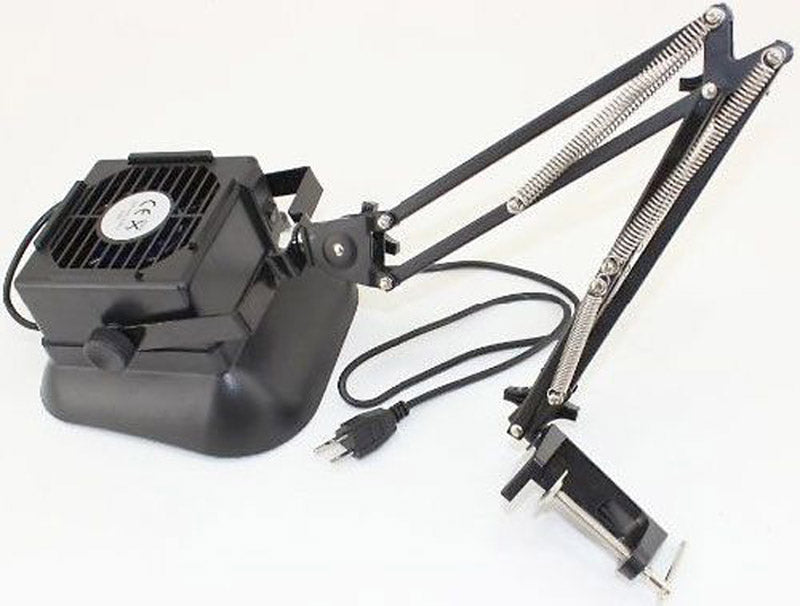

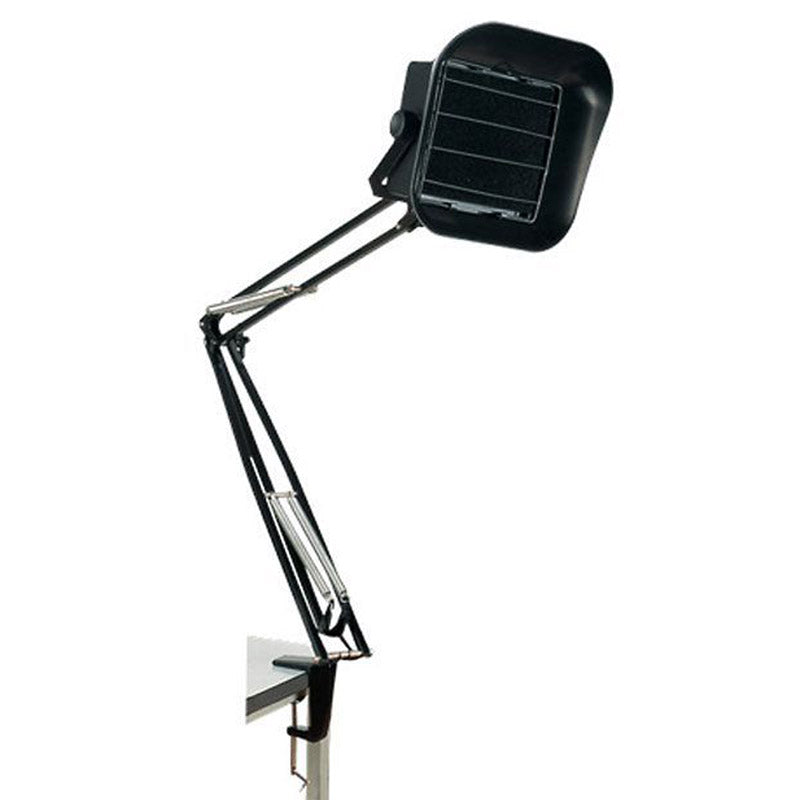

Solder smoke absorber ZHONGDI ZD-153A, ESD
ESD solder fume extractor - power consumption 23W, power supply 230VAC/50Hz, air flow 1 m3/min, activated carbon filter 130 × 130 × 10 mm, body dimensions 160 × 200 × 270 mm, weight 2.5 kg, fixing using a table holder, 3-axis articulated arms with 2 arms approx. 250 mm long for positioning directly above the soldering point
In stock more than 50 pcs
Expected shipping:
29.09.2026
Regular price
1.090,00 Kč
900,83 Kč
excl. VAT
Unit price
/
Unavailable
ZHONGDI | SKU:
06530061
Product description
Solder fume extractor ZD-153A, ESD
During soldering often unheatlhy amount of smoke is released, irritating sensitive skin and lungs.
Toxic smoke is extracted and filtered directly at source.
Not only this extractor eliminates direct contact with skin and lungs but also stop spreadig of smoke further into the room.
This fume extractor can be comfortably attached to your work table.
Removes solder fumes
Helps reduce the likelihood of headaches and eye irritation
Adjustable angle for accurate placement
Replaceable activated carbon filter
High-performance fan
Low noise and long life service
Technical specifications:
Absorption capacity: 1m3 / min (max)
Power consumption: 23 W
Voltage: 110-130V or 220-240V AC
Overall dimensions: 220 x 270 x 168mm
Activated carbon filter (7g)
Maximum absorption weight: 2g
During soldering often unheatlhy amount of smoke is released, irritating sensitive skin and lungs.
Toxic smoke is extracted and filtered directly at source.
Not only this extractor eliminates direct contact with skin and lungs but also stop spreadig of smoke further into the room.
This fume extractor can be comfortably attached to your work table.
Removes solder fumes
Helps reduce the likelihood of headaches and eye irritation
Adjustable angle for accurate placement
Replaceable activated carbon filter
High-performance fan
Low noise and long life service
Technical specifications:
Absorption capacity: 1m3 / min (max)
Power consumption: 23 W
Voltage: 110-130V or 220-240V AC
Overall dimensions: 220 x 270 x 168mm
Activated carbon filter (7g)
Maximum absorption weight: 2g
Product parameters
Příslušenství
-
ZHONGDI
Filter for solder fume extractor ZD-153,159 (5pcs)
In stock more than 50 pcsExpected shipping: 29.09.2026Regular price 125,00 Kč 103,31 Kč excl. VATUnit price /Unavailable
