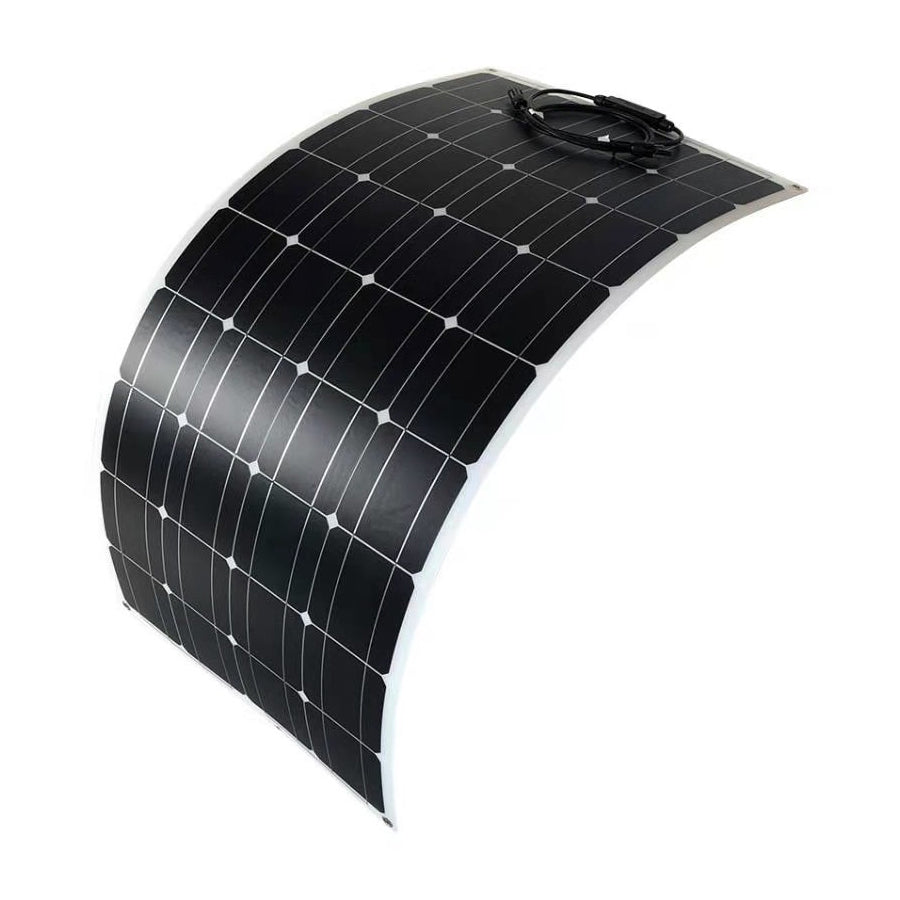

Solar panel MONO FLEX 18V/200W monocrystalline flexible

Flexible monocrystalline solar panel - power 200W, open-circuit voltage Voc 22.46V, Vmp 18.72V, Imp 10.68A, short-circuit current Isc 11.54A, module efficiency 18 %, cell efficiency 22 %, tolerance ±3 %, matt PET film surface with laminated EVA film, waterproof construction, resistance to UV, hail and temperature changes, mechanical load test

Show full description
Not in stock
4.079,00 Kč 3.371,07 Kč excl. VAT
MONO FLEX  |  SKU: 04280295  |  Barcode: 5904100451388
Log in for VAT-free pricing

Product description

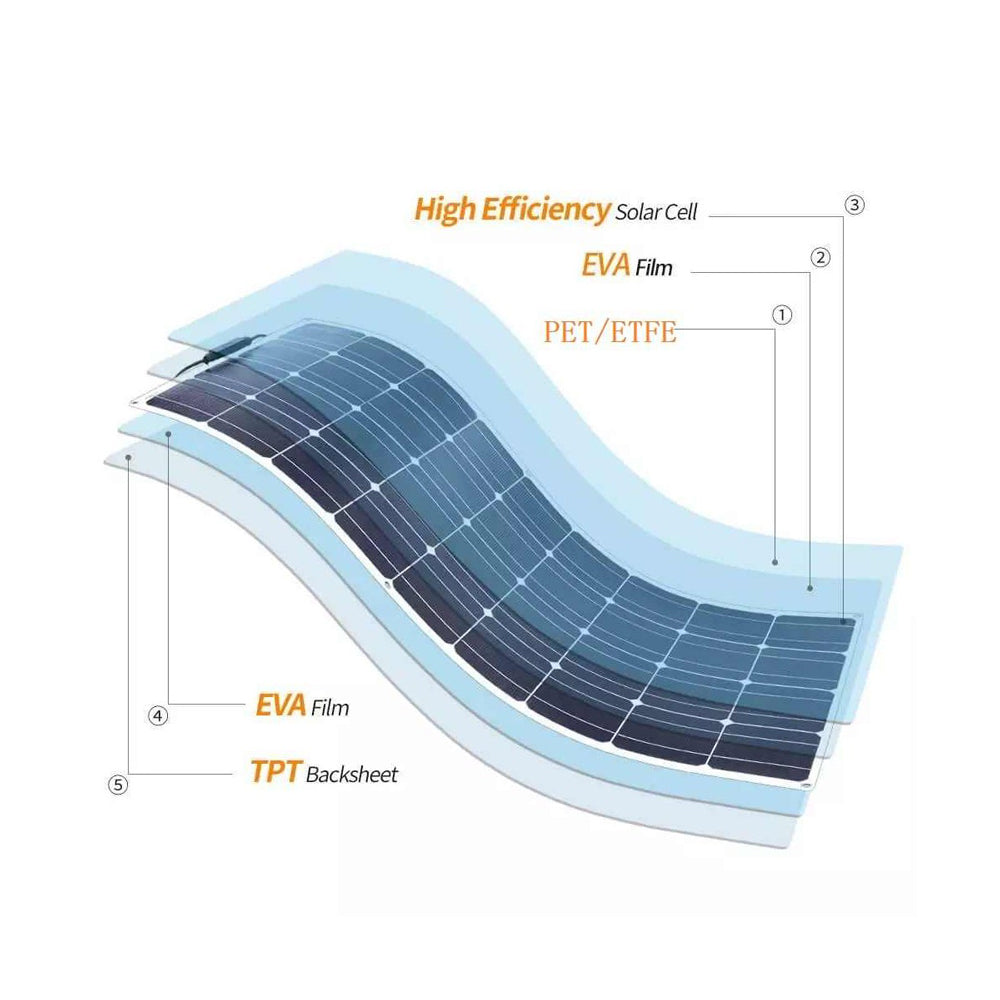

The MONO FLEX monocrystalline flexible panel has a cell conversion efficiency higher than 22%. The panel is covered with matte PET film and laminated EVA film. Waterproof, ideal for installation in layouts.

Guarantee of quality:
- Electrical insulation test
- Test of resistance to external conditions
- Hot spot test
- UV resistance test
- Test of resistance to temperature changes, hail impact
- Moisture resistance test
- Durability test
- Mechanical stress test

Technical parameters:

- Maximum power Pmax (W): 200W
- Tolerance (%): ± 3%
- Open circuit voltage Voc (V): 22.46
- Voltage at maximum power Vmp (V): 18.72
- Current at maximum power Imp (A): 10.68
- Short circuit current Isc (A): 11.54
- Module efficiency (%): 18
- Solar cell efficiency (%): 22
- Rated fuse current (A): 15
- Protection class: IP65
- Maximum panel field voltage (V): DC1000
- Operating temperature range: -40 °C-85 °C
- Dimensions: 700x1585x3mm
- Weight: 4.6 kg

Product parameters

Documents to download
Datasheet PL
