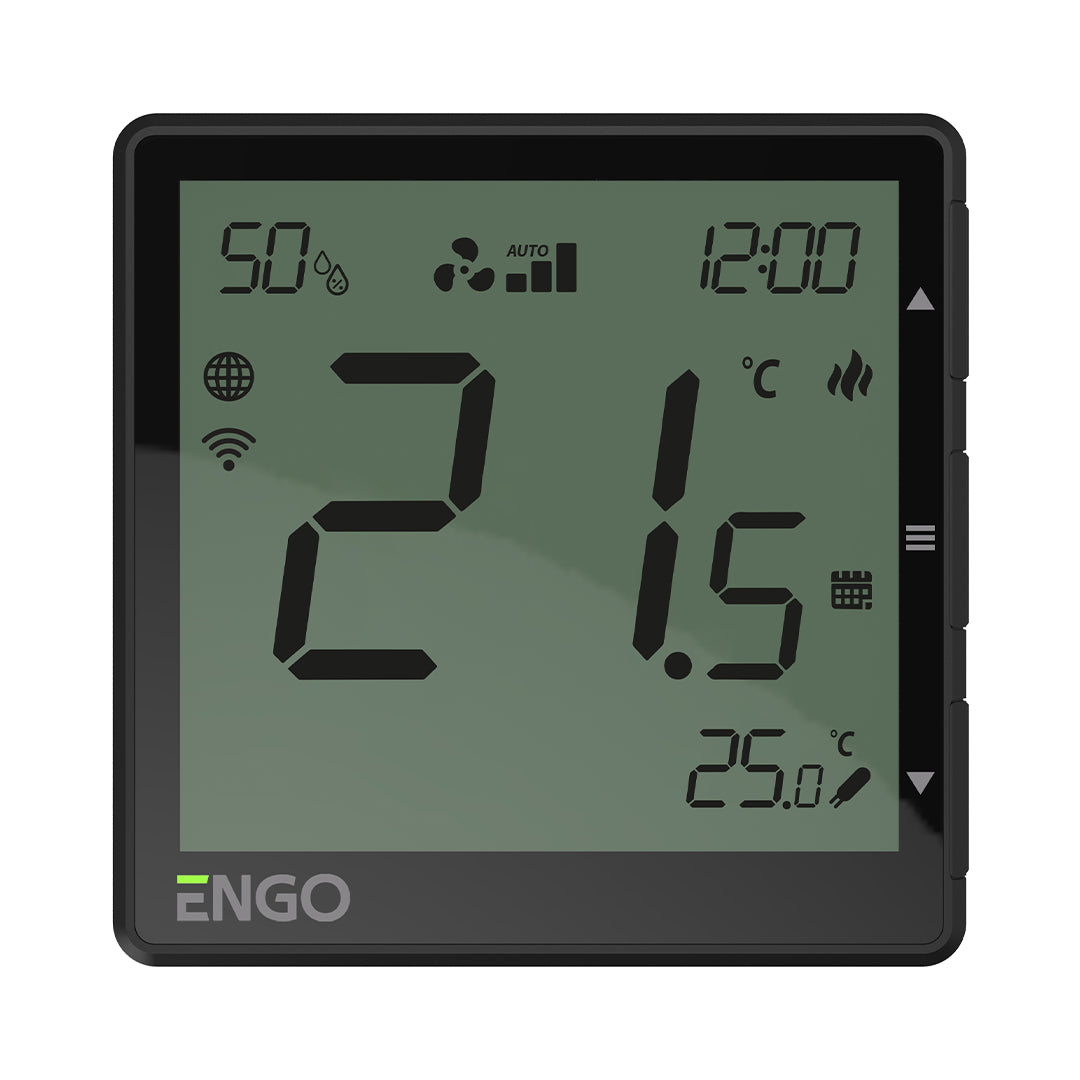

Smart thermostat ENGO EFAN-230B WiFi
2% off
Flush-mounted fan coil controller - WiFi 2.4GHz and MODBUS RS-485, power supply 230V, max. output load 5(2)A, control of 2- or 4-pipe fan coils, support for 3-speed 230V fans, temperature and humidity measurement, protection against freezing and overheating, ECO economy mode, settings memory after power failure, remote control via the ENGO Smart app, colour black
In stock 4 pcs
Expected shipping:
21.09.2026
Sale price
2.035,00 Kč
Regular price
2.070,00 Kč
1.681,82 Kč
excl. VAT
Unit price
/
Unavailable
ENGO | SKU:
06446816
Product description
Internet fan controller for concealed fan, Wi-Fi, 230V
- Wireless communication via 2.4GHz Wi-Fi and MODBUS RS-485 for system integration.
- Control of 2 or 4-pipe fan coils for flexible heating and cooling control.
- Support for 3-speed 230V fans with automatic and manual control.
- Mixed system control: cooling fan coils and underfloor heating.
- Freeze and overheat protection function to ensure safety.
- Remote control via ENGO Smart app.
- Humidity and temperature measurement to monitor room conditions.
- Memory of settings after power failure.
- Energy saving mode (ECO) reduces energy consumption.
- Output loads up to 5(2)A for fan coils and ducted heaters.
- Easy installation and configuration.
Specifications:
230V AC power supply.
Temperature setting range: 5 - 45°C
Temperature display accuracy: 0.1 or 0.5 °C
Control algorithm: Delta FAN, hysteresis (±0.1 °C to ±2 °C)
Communication:
Wi-Fi 2.4 GHz
MODBUS RS-485
Input:
S1/COM - temperature sensor or potential-free contact
S2/COM - temperature sensor or potential-free contact
Valve control output: V1, V2 - 230V AC, 5(2)A
Fan control output: F1, F2, F3 - 230V AC, 5(2)A
Dimensions [mm]: 90 x 90 x 44
