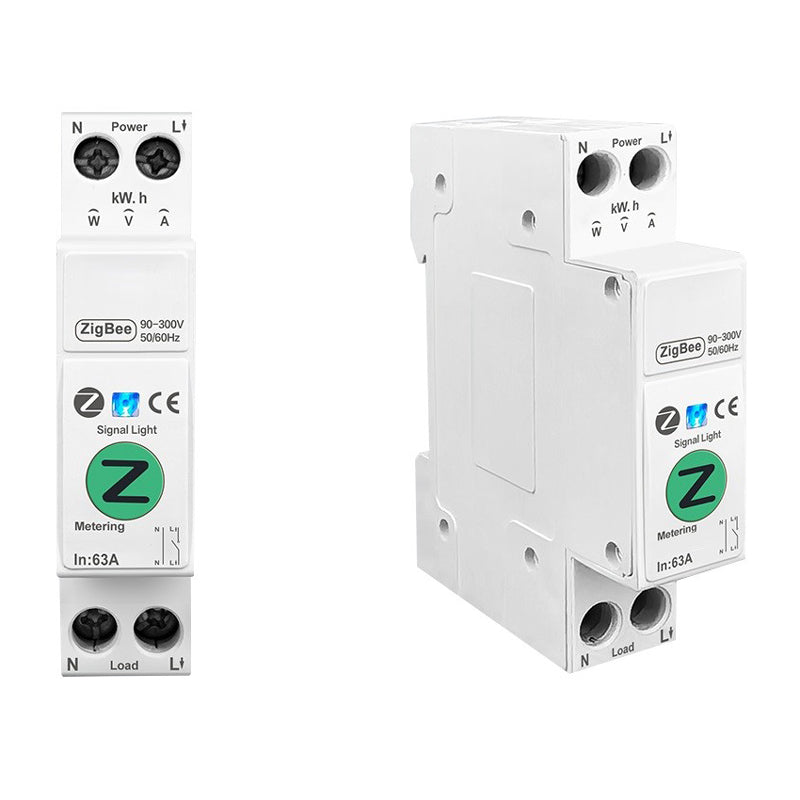

Smart electronic circuit breaker IMMAX NEO 07573L 1-63A ZigBee Tuya
Smart electronic circuit breaker single-phase - ZigBee 3.0, frequency 2400–2483.5MHz, RF power up to 19dBm, current protection 1–63A (adjustable in the app), overvoltage protection 220–265V, undervoltage protection 76–240V, thermal fuse, max. load 26kW, power input AC 100–260V 50/60Hz, standby power consumption 0.4W, IP20 rating, DIN rail mounting, requires a ZigBee 3.0 gateway (not included)
Last piece
Expected shipping:
19.10.2026
Regular price
599,00 Kč
495,04 Kč
excl. VAT
Unit price
/
Unavailable
IMMAX NEO | SKU:
06441800
Product description
Smart electronic single-phase circuit breaker
It is conditional that the controller is within reach of the smart gate. ATTENTION - this is not a WiFi controller, it requires Immax NEO BRIDGE PRO Smart Zigbee 3.0 (can be purchased separately), or another TUYA hub based on the ZigBee 3.0 standard. It is fully compatible with iOS, Android, Amazon Alexa, Apple Siri shortcuts, Google Assistant, TUYA, Lidl.
Technical parameters:
Protocol: ZigBee 3.0
Frequency: 2400MHz~2483.5MHz
Maximum RF output power: ZigBee: 10dBm - max 19dBm
Zigbee repeater: No
Network standby power (Pnet): 0.4W
Input power: AC 100 - 260 50 Hz / 60 Hz.
Max. loaded: 26kW
Current protection: 1-63A (adjustable in the application)
Overvoltage protection: 220-265V (adjustable in the application)
Undervoltage protection: 76-240V (adjustable in the application)
Thermal fuse, protection against overheating: Yes
Current fuse, protection against overvoltage and overload: Yes
Communication protocol: Zigbee, support Tuya.
Wireless range: 30 m line of sight, 10 m in built-up space
Operating temperature: -25°C to 70°C
Material: PC V0 flame retardant
Installation: on a DIN rail
Number of switched circuits: 1
Dimensions: 82 x 18 x 66 mm
Degree of protection: IP20
Package contents: electronic circuit breaker, user manual
It is conditional that the controller is within reach of the smart gate. ATTENTION - this is not a WiFi controller, it requires Immax NEO BRIDGE PRO Smart Zigbee 3.0 (can be purchased separately), or another TUYA hub based on the ZigBee 3.0 standard. It is fully compatible with iOS, Android, Amazon Alexa, Apple Siri shortcuts, Google Assistant, TUYA, Lidl.
Technical parameters:
Protocol: ZigBee 3.0
Frequency: 2400MHz~2483.5MHz
Maximum RF output power: ZigBee: 10dBm - max 19dBm
Zigbee repeater: No
Network standby power (Pnet): 0.4W
Input power: AC 100 - 260 50 Hz / 60 Hz.
Max. loaded: 26kW
Current protection: 1-63A (adjustable in the application)
Overvoltage protection: 220-265V (adjustable in the application)
Undervoltage protection: 76-240V (adjustable in the application)
Thermal fuse, protection against overheating: Yes
Current fuse, protection against overvoltage and overload: Yes
Communication protocol: Zigbee, support Tuya.
Wireless range: 30 m line of sight, 10 m in built-up space
Operating temperature: -25°C to 70°C
Material: PC V0 flame retardant
Installation: on a DIN rail
Number of switched circuits: 1
Dimensions: 82 x 18 x 66 mm
Degree of protection: IP20
Package contents: electronic circuit breaker, user manual
